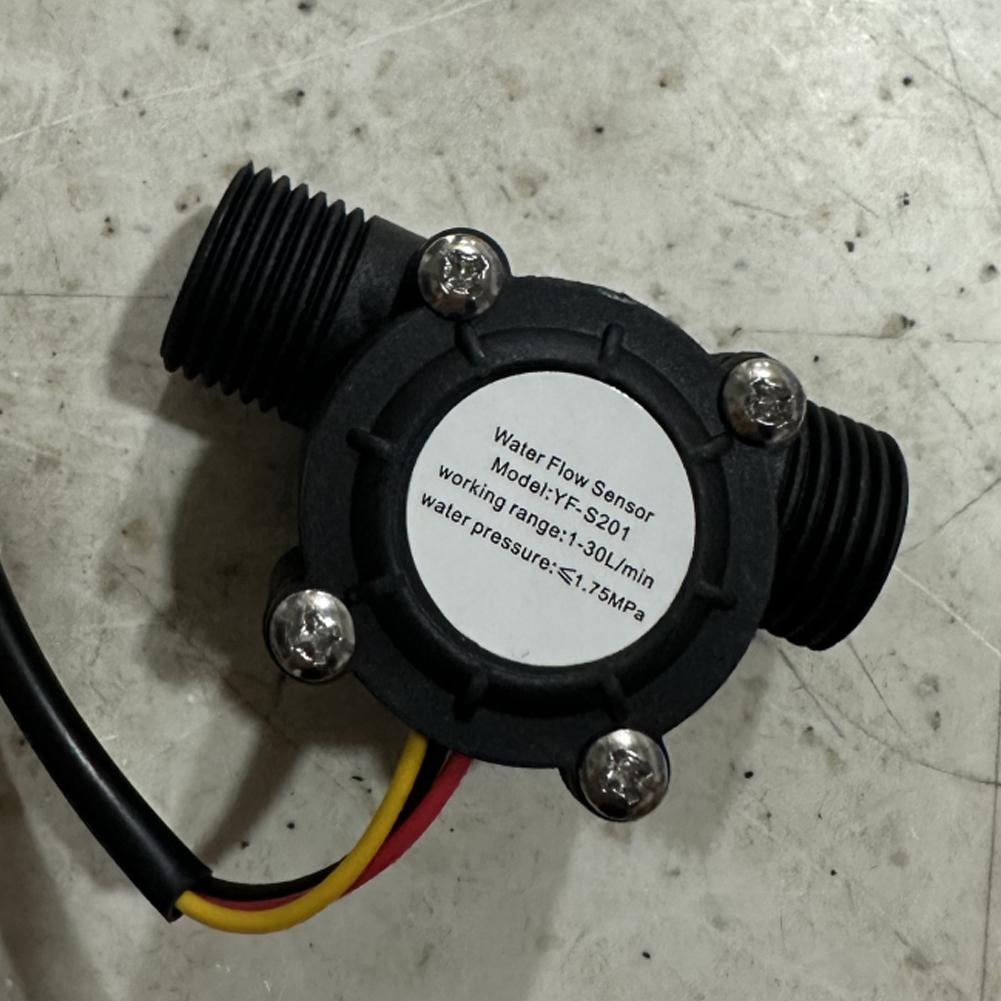

YF-S201 Water Flow Sensor 1.75MPa Hall Liquid Water Flow Sensor DC 5-18V 1/2 Inch Flowmeter Counter Fluid Meter Counter

Semi-finishedproduct : No Battery Included : no High-concerned chemical : none Type : Other Model Number : water flow sensor DIY Supplies : Electrical Origin : Mainland China Certification : NONE Hall Effect Flow Sensor : Hall Liquid Water Flow Sensor Water Control Liquid Flowmeter : Flowmeter Counter Liquid Flow Sensor : Fluid Meter Counter

YF-S201 Water Flow Sensor 1.75MPa Hall Effect Flow Sensor DC 5-18V 1/2 Inch Hall Liquid Water Flow Sensor Water Control Liquid Flowmeter Feature: 1. Compact and Lightweight Design:Our water flow sensor  features an effortlessly sleek and agile appearance with a small footprint, making installation straightforward and unobtrusive, for users seeking a minimalistic setup. 2. Stainless Steel Shaft:The impeller is embedded with a stainless steel shaft, ensuring hall effect flow sensor  is wear-resistant and remains over time, offering longevity and reliability in its . 3. Innovative Sealing Ring Structure:Utilizing a dual-pressure sealing ring structure, our hall liquid water flow sensor guarantees a watertight seal, eliminating concerns about leaks and enhancing the overall durability and performance. 4. Hall Components:Incorporating Hall elements imported from Germany and encapsulated with potting compound, our water control liquid flowmeter  is safeguarded against water ingress and aging, ensuring consistent, functionality. 5. ROHS Compliant Materials:All materials used in this flowmeter counter meet ROHS testing standards, ensuring safety, friendliness, and peace of mind for consumers concerned with ecological and health standards. Specification: Description: External thread: 1/2" Temperature: -25 - +80 Allowable pressure: Pressure 1.75MPa Working humidity range: 35%-90%RH (no frost) Operating temperature: 80 Load capacity: 10mA (DC 5V) Working voltage range: DC 5-18V Maximum working current: 15 mA (DC 5V) Minimum rated working voltage: DC 4.5 5V-24V Size: 6x4cm/2.36x1.57in Colour: Black

Product introduction: The water flow sensor is mainly composed of a plastic valve body, a water flow rotor assembly and a Hall sensor. It is installed at the water inlet end of the water heater to detect the water flow rate. When the water passes through the water flow rotor assembly, the magnetic rotor rotates and the speed changes with the flow rate, and the Hall sensor outputs corresponding pulses. The signal is fed back to the controller, and the controller judges the size of the water flow and regulates it.

Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement.  1 X Water Flow Sensor  label:yes

Material: plastic
