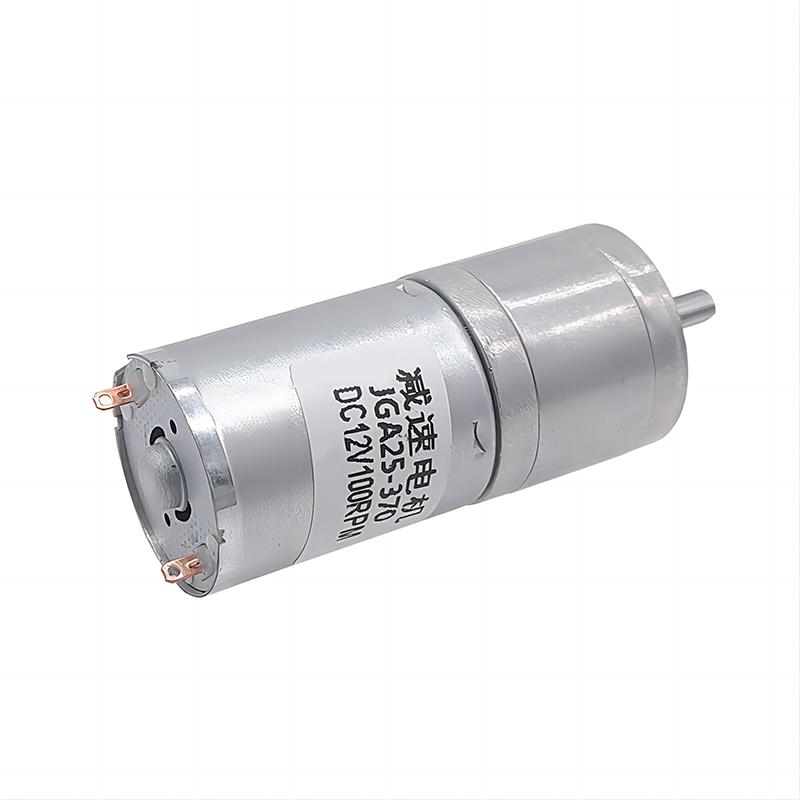

JGA25-370 DC6V/12V/24V High Torque Low Speed Adjustable CW/CCW 12~1931RPM Electric Motor Reduction Engine Micro Metal Gear Motor

Purchase Options

(Calculation of required torsion = Radius of mounted items (R) cm * Weight of items kg)

*（A:10Kg，Torque required=A*R=10*1=10Kg.cm）

*（B:10Kg，Torque required=A*R=10*10=100Kg.cm）

About speed control

Reasonable speed adjustment range should be: 50% to 100%

Adjustment of the motor speed by means of a regulator shall be known:

The lower you adjust the speed, the slower the rpm and the less torque;

The higher the reduction ratio, the slower the speed and the higher the torque;

The smaller the reduction ratio, the faster the speed and the lower the torque.

Example, for example:

The motor is compared by decelerating to 100 RPM and decelerating to 200 RPM, and adjusting to speed to 100 RPM through the governor; the torque of the former is 2 to 3 times that of the latter.

Efficiency: IE 1 Model Number: JGA25-370 L12 Origin: Mainland China Type: Micro Motor Output Voltage: 0.8W-4.8W Output Power: ＜18.65 Certification: ROHS Continuous Current(A): 0.03A-0.3A Commutation: Brush Brand Name: NONE Does it include a Battery?: No Protect Feature: Explosion-proof Use: Home Appliance Torque: 9KG.CM Does it include wireless functionality?: No High-concerned chemical: none Construction: Permanent Magnet
