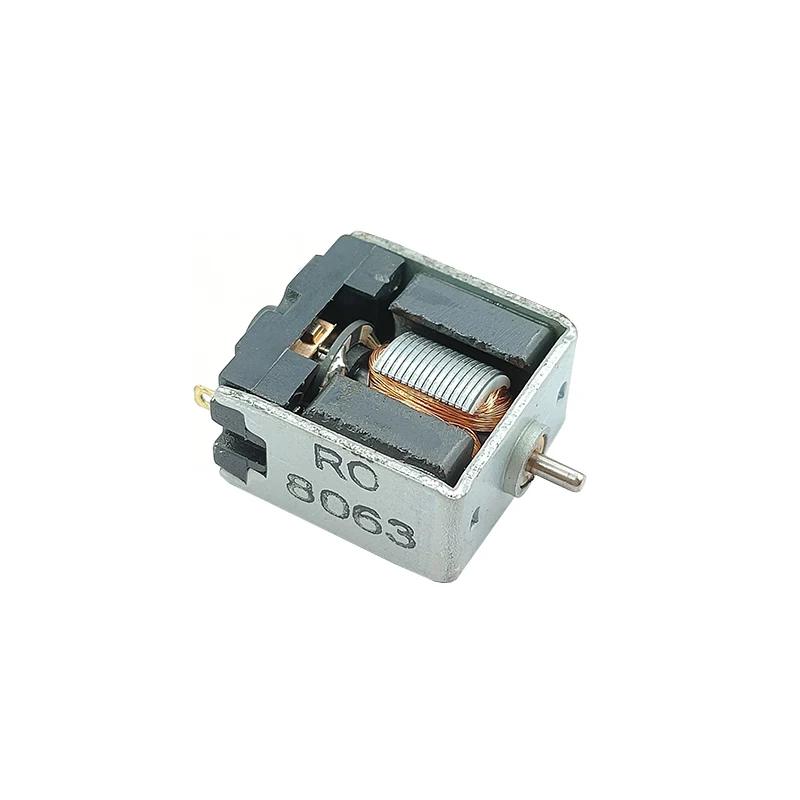

Mini 020 Bare Motor Micro 18MM Square DC High Speed Engine 26000RPM 1.5mm Shaft for DIY Hobby Toy Car Model 6V 9V 12V

Specification:

Tips: This motor is micro 020 motor, it is very small motor with small torque.

If you mind it, please purchase with caution. Thanks.

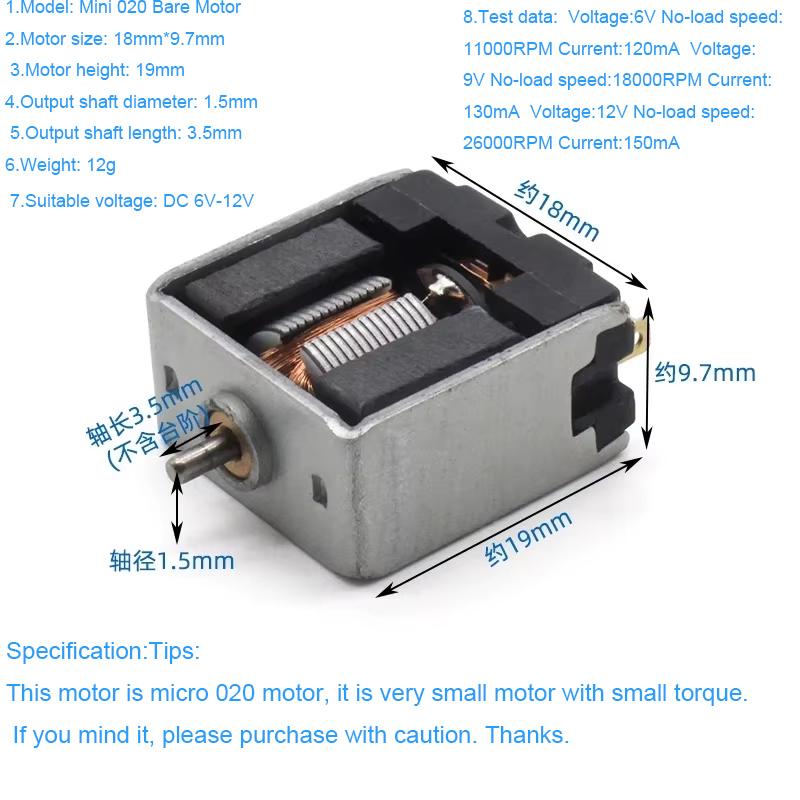

1.Model: Mini 020 Bare Motor

2.Motor size: 18mm*9.7mm

3.Motor height: 19mm

4.Output shaft diameter: 1.5mm

5.Output shaft length: 3.5mm

6.Weight: 12g

7.Suitable voltage: DC 6V-12V

8.Test data:

Voltage:6V No-load speed:11000RPM Current:120mA

Voltage:9V No-load speed:18000RPM Current:130mA

Voltage:12V No-load speed:26000RPM Current:150mA

=========================

Package List:

Motor x 1PCS

Output shaft diameter: 1.5mm Output Power: ＜18.65 Protect Feature: Explosion-proof Efficiency: IE 1 Model Number: Mini 020 Motor Suitable voltage: DC 6V-12V Choice: yes semi_Choice: yes Commutation: Brush Construction: Permanent Magnet Motor size: 18mm*9.7mm Speed range: 11000RPM-26000RPM Brand Name: NONE Does it include wireless functionality?: No Certification: CE Origin: Mainland China Type: Micro Motor Does it include a Battery?: No High-concerned chemical: none Motor height: 19mm
