ELP Lux Low Light USB Camera Wide Angle 1080P Low Light Webcam Mini UVC Light Burn Camera HDR 100dB Webcam High Speed for Laptop Pi Webcam 0.0001

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

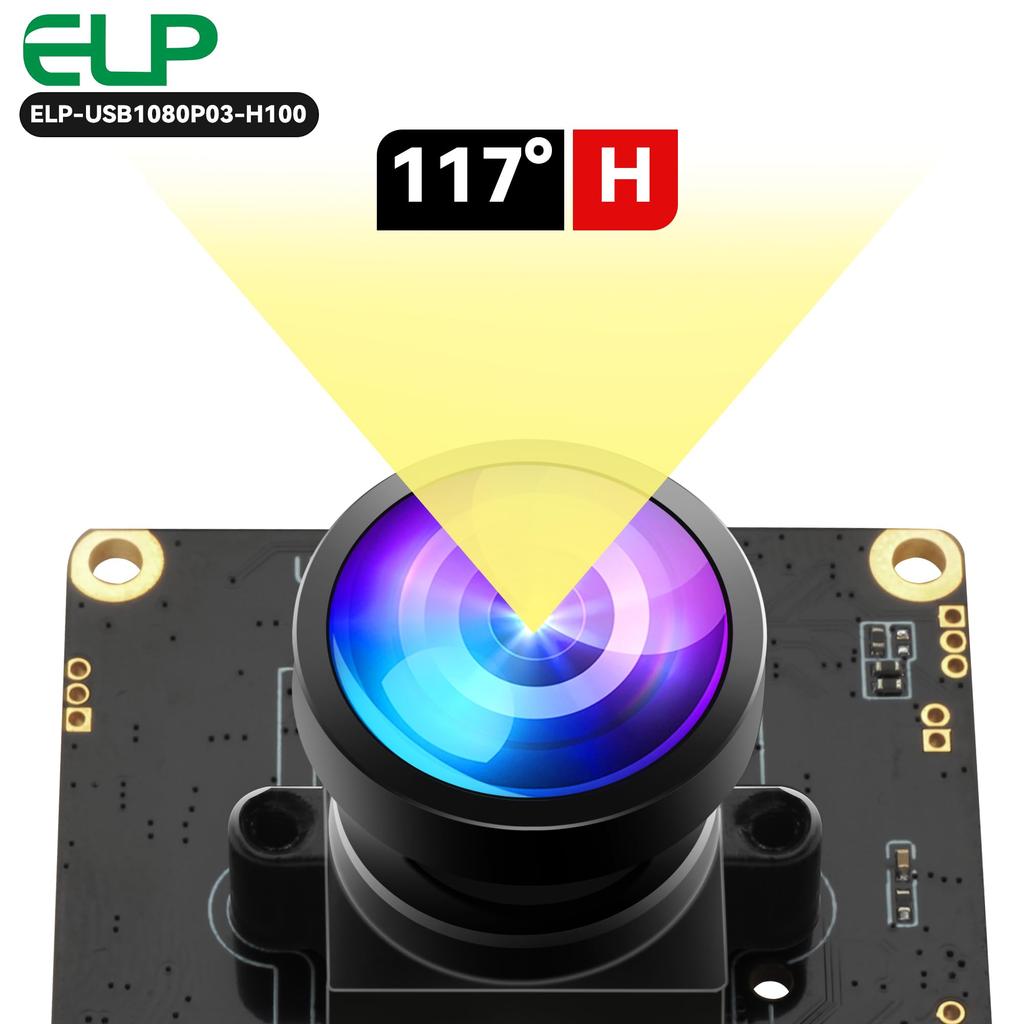

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. 0.0001 lux Low Light: ELP 2K Starvis 0.0001 lux Low Light USB Camera Module, 100dB Wide Dynamic Range for Low Light Shooting Day and Night. Full HD: Still image resolution: 2K 1920x21080 maximum. Wide-angle 100 degrees, distortion-free lens with IR filter, wide field of view, HFOV approximately 117 degrees, VFOV approximately 82 degrees. Features a built-in 2MP 1/1.8-inch SmartSens SC2210 color CMOS image sensor for better image performance, mini USB camera, and comes with a 1-meter/3.3-foot USB cable for laptops. High frame rates: H.264 30fps@1920x1080; MJPEG 30fps@1920x1080; YUY2 30fps@640x480 Mini-sized, lightweight, small-profile, and thin-profile design for embedded machine vision, using a 1-meter/3.3-foot USB cable for laptops. With H.264/MJPEG/YUY2 image format options, high-resolution cameras can be in personal or industrial video systems. It is compatible with Raspberry Pi, Ubuntu, OpenCV, Amcap, and many other USB webcam software and hardware. Plug and Play: UVC compliant, supports Windows XP/7/8/10, Linux, Android, and Mac OS. Simply connect the camera to your PC, laptop, or Raspberry Pi with a USB cable without installing any additional drivers. Applications: This small camera board can be installed in the most hidden and confined locations for home video surveillance systems, day and night low-light security camera systems, dashcams, or other machine vision applications. Product model: ELP-USB1080P03-H100 Product Name: 1080P Starvis Low Light Camera Module Main specifications Sensor: 1/1.8-inch SmartSens SC2210 Maximum resolution: 1920(H)*1080(V) Sensitivity: 1.08V/lux/second Pixel size: 4.0µm x 4.0µm Video compression: MJPEG / YUY2 (YUYV) / H.264 Resolution and frame rate: 1920x1080 MJPEG 30fps/H.264 30fps/YUY2 5fps 1280x720 MJPEG 30fps/H.264 30fps/YUY2 10fps 1024x576 MJPEG 30fps / H.264 30fps / YUY2 15fps 960x540 MJPEG 30fps / H.264 30fps / YUY2 15fps 640x480 MJPEG 30fps / H.264 30fps / YUY2 30fps 640x360 MJPEG 30fps/H.264 30fps/YUY2 30fps Image processing time: Approximately 5 seconds after opening the preview software Center definition: 1000LW/PH (center) S/N ratio: max. 100dB Minimum illumination: From minimum to 0.0001 Lux Shutter type: Electronic rolling shutter / Frame exposure Connection port type: USB 2.0 high speed AEC Support AWB support AGC Support Adjustable parameters: Brightness, contrast, saturation, hue, sharpness, gamma, white balance, backlight compensation, exposure Lens parameters: Distortion-free H100 lens, HFOV approximately 117 degrees, VFOV approximately 82 degrees Power supply and connector: USB bus power 4P-2.0mm socket Operating voltage: DC 5V Working current: 150-180mA Dimensions: 38 x 38 mm Storage temperature: -20°C to 80°C Working temperature: -10°C to 70°C USB cable: 1M/3.3ft Operating system request: Windows 7/8/9/10/11, etc. Linux with UVC. MAC OSX 10.4.8 or later Android5.x or higher
