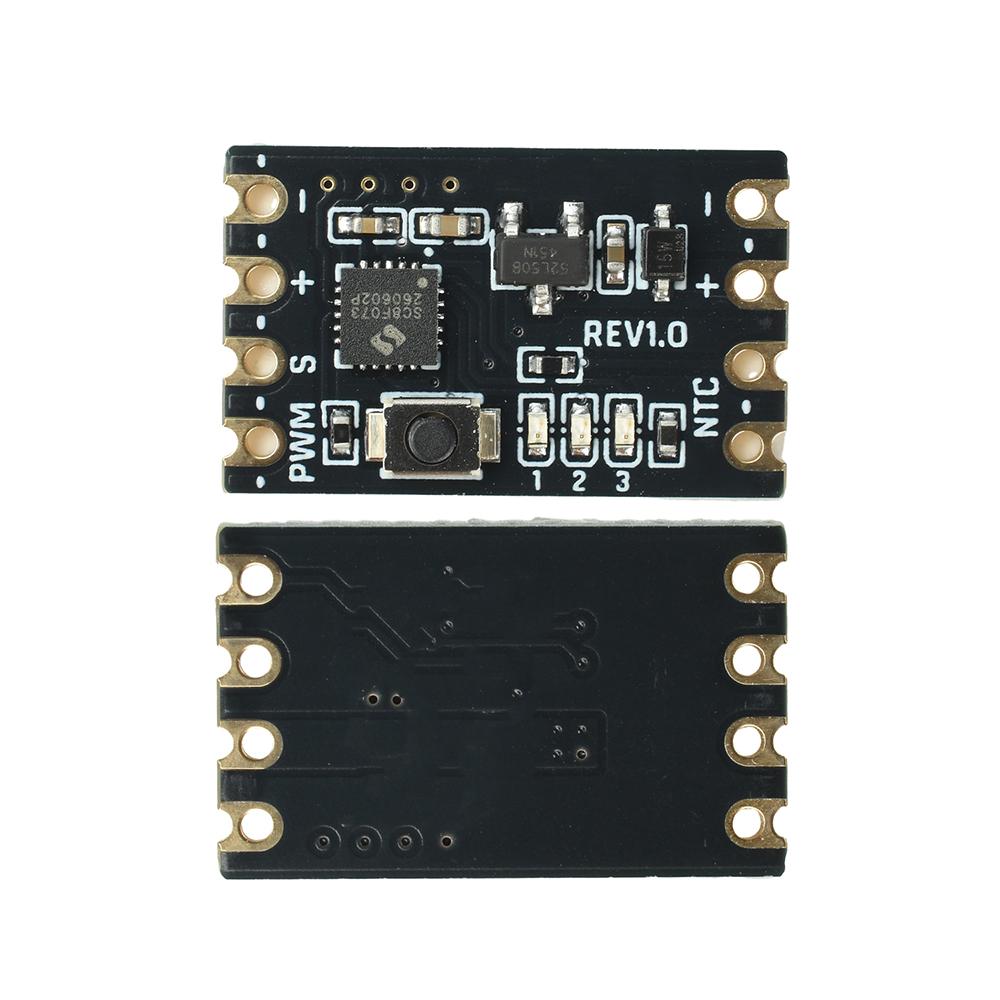

DC 5-15V Mini PWM Speed Controller for CPU Fans Ultra-Compact 4-Wire Smart Temperature Control for Router Heatsinks

High-concerned chemical : none Type : Speed Controls Origin : Mainland China Brand Name : occkic

Features 1. Ultra-compact design, easily fits into any space 2. 4-wire PWM for precise speed control, quiet and efficient operation 3. Made with high-quality materials for long-lasting and reliable performance 4. 343 module combinations to suit a variety of scenarios 5. Smart temperature control automatically adjusts speed for hassle-free operation and energy savings Parameter Product Name: Mini Fan Temperature Controller Supported Fans: 5V/12V standard 4-wire PWM fans (does not support 2- or 3-wire fans) Input Voltage: 5-15V (input and output are directly connected; note the fan’s voltage rating) Fan Current: Less than 3A (for high current, it is recommended to connect the fan interface directly to the power supply) Fan Terminals: Compatible with 4P (2.54mm pitch) Standby Power Consumption: 10mW (5V); 25mW (12V) Temperature Sensor: NTC 50K B=3950 PWM Signal: 25KHz Vpp=5V Package include Module*1 Temperature Sensor*1

label:yes
