RS485 Modbus RTU TCP to Ethernet Network UDP TCP Client Server MQTT Converter Serial port server for PLC PTZ Camera

High-concerned chemical : none Electric : No Accessories Type : Converter With USB : NO is_d : NO Model Number : RS485 to Ethernet TCP/IP Converter Compatible Brand/Model : None Brand Name : occkic Origin : Mainland China

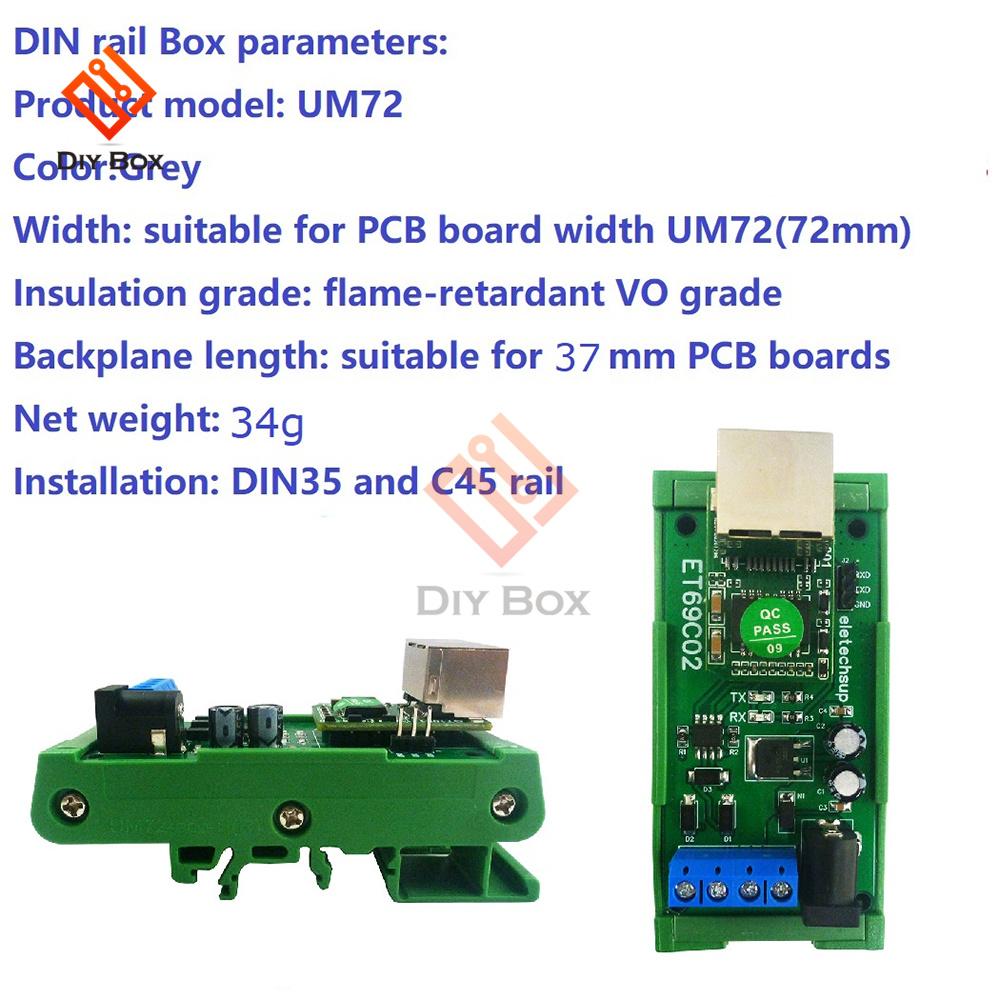

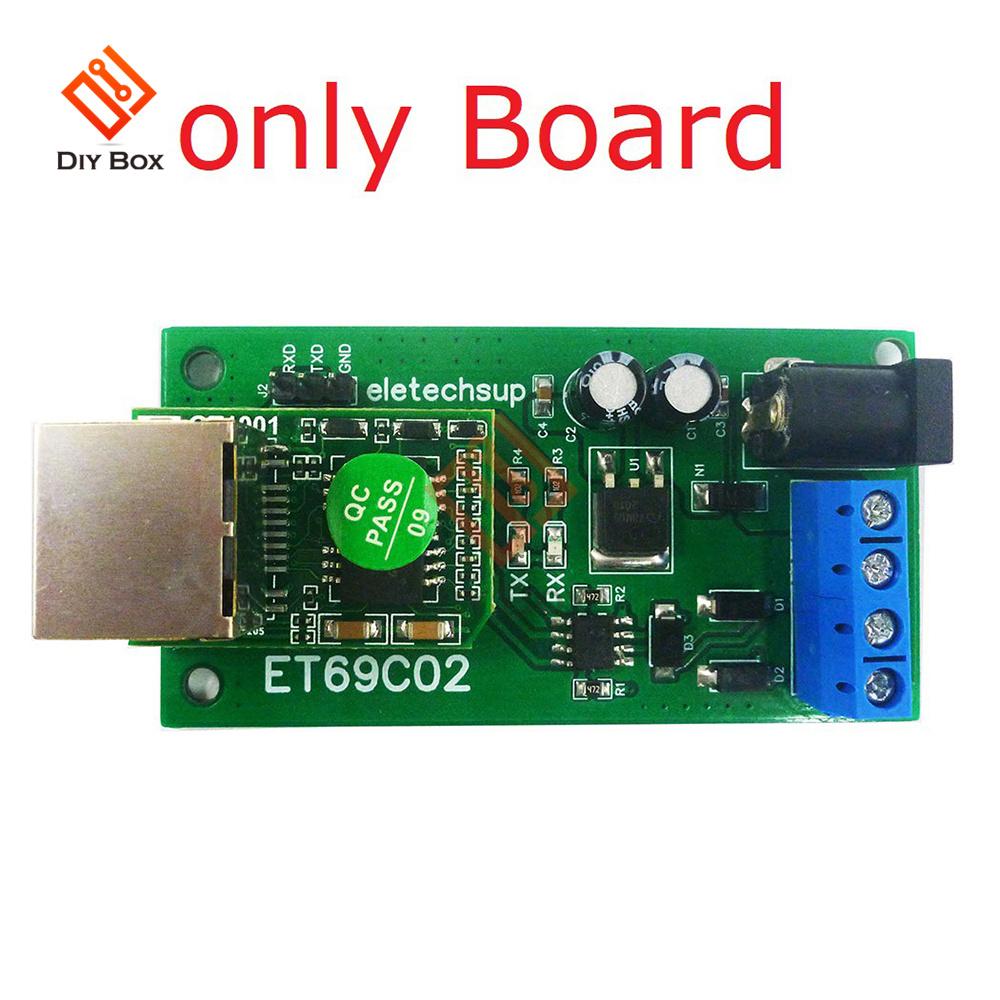

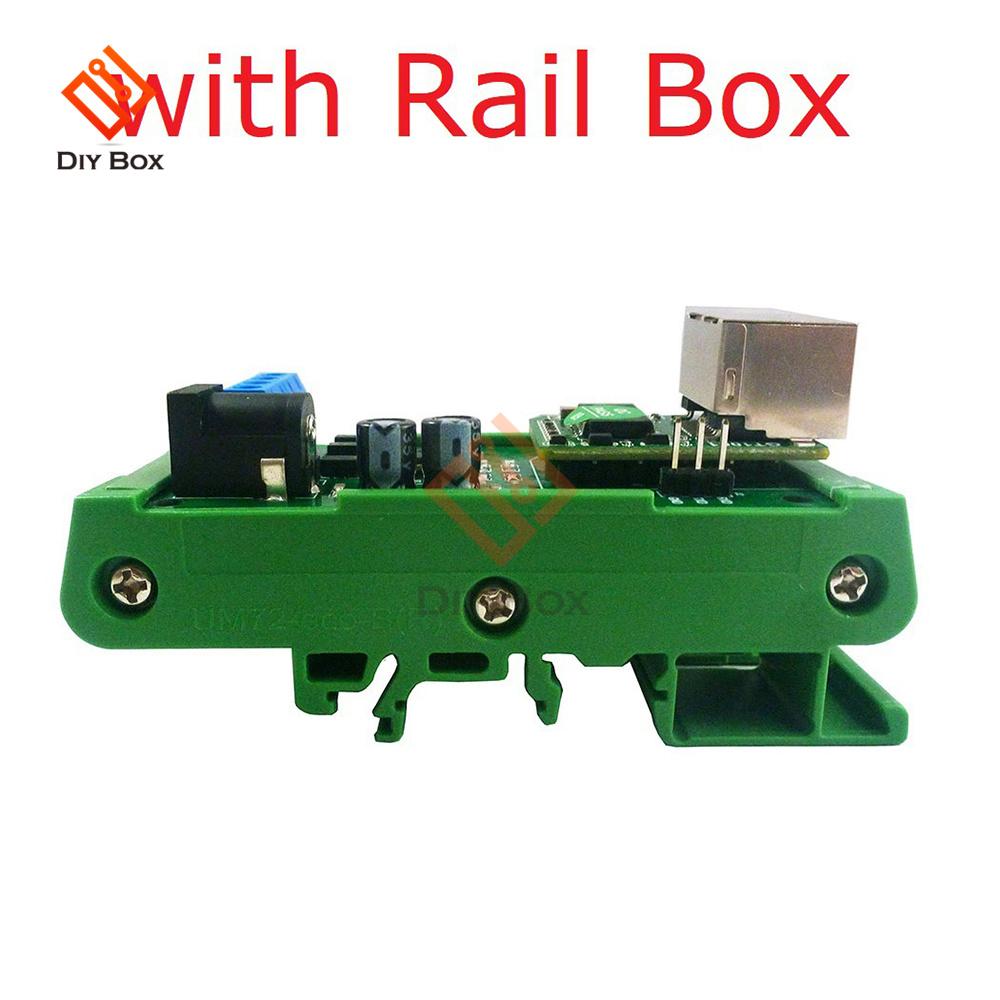

Product selling point: 1: Wide range of applications 2: with guide rail and without guide rail optional 3: Small size, easy to carry 4: stable performance 5: Simple and easy to understand Parameters: Working voltage: DC 12V (DC 6.5-25V) Working current: 20-25mA Working mode: UDP, TCP Client, TCP Server, Modbus Slave, Modbus Master, MQTT TVS anti-surge protection The default baud rate is 9600BPS. Baud rate can be selected through WEB settings 1200 2400 4800 9600 19200 38400 57600 115200BPS Parity can be no parity, even parity and odd parity Size: 72*37*24mm (PCB board only); 82*41*40mm (with DIN rail box) Weight: 24g (PCB board only); 58g (with DIN rail box) Application: Ethernet to RS485 Bus Support all RS485 devices of eletechsup, such as: 10IOA08/R4DCB08/R4D3B16/N4D3E16/N4AIA04 Smart Home, Home Automation, Wiser Home; Security Monitoring recognition system; IP camera LED light driver Automatic Curtain Control DIN rail Box parameters: Item model number: UM72 Color: green Width: suitable for PCB board width UM72 (72mm) Insulation grade: flame retardant VO grade Backboard length: suitable for 37mm PCB board Net weight: 34g Installation method: DIN35 and C45 rails The package includes: 1*RS485 to Ethernet TCP/IP Converter Module label:yes
