Mini 5W Portable Power Supply with Color Display Adjustable DC-DC Buck-Boost Desktop Power for Electronics DIY

PCBincluded : Yes Voltage range : USB (5-20V DC) Output Power : ＜18.65 Use : others Item Type : Power Supply Electronic : no Charger included : N Battery Included : no High-concerned chemical : none Model Number : Mini Portable Power Supply Accessory Type : Charger Accessories Brand Name : occkic Origin : Mainland China Certification : NONE

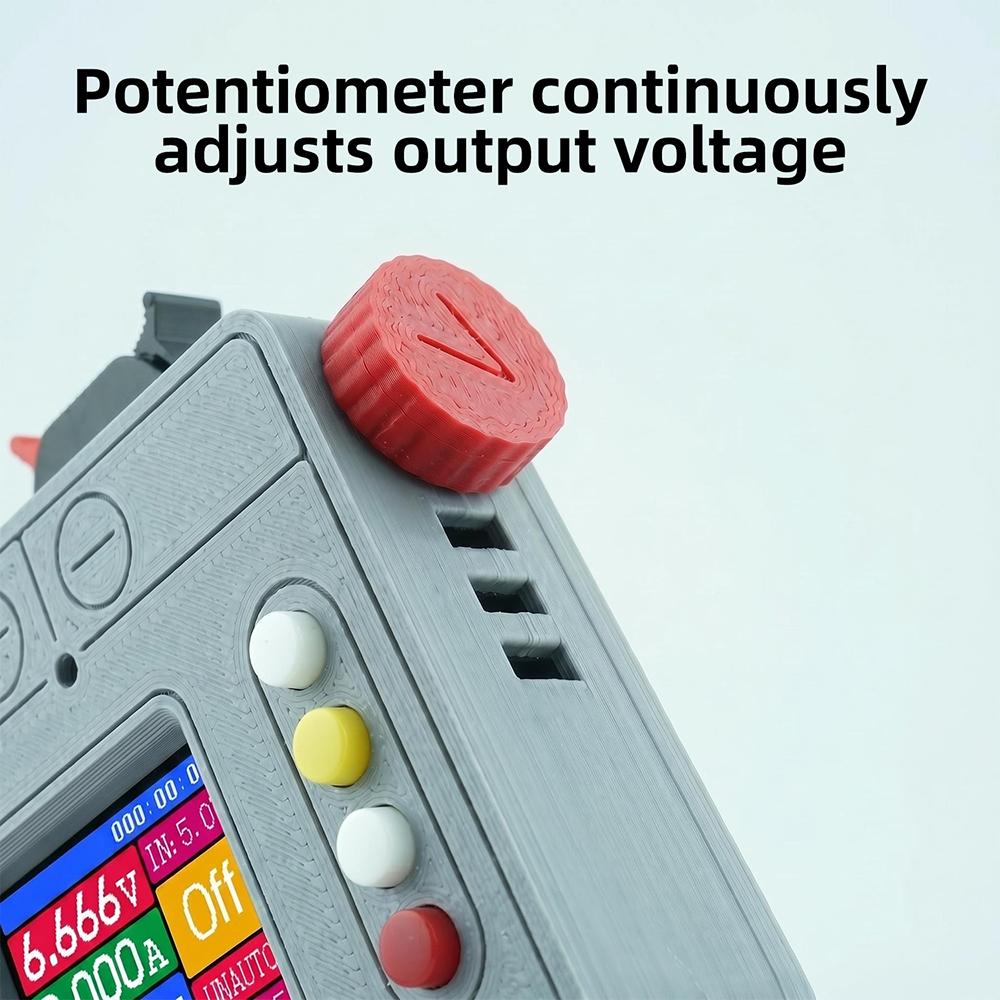

Features 1. High-definition color display shows real-time voltage and current, enabling more precise and efficient debugging 2. Rotary potentiometer adjustment eliminates button drift issues, ensuring stable settings without fluctuations 3. Wide-voltage step-up/step-down design (0.6V–25.6V continuously adjustable), suitable for various scenarios 4. Compact and lightweight, a portable desktop power supply 5. 5W output power designed specifically for low-power precision debugging. Safe and worry-free 6. Supports 1–9 levels of backlight brightness adjustment; standby current with screen off is less than 1mA 7. Ideal for electronics enthusiasts, repair engineers, DIY makers, student experiments, and microcontroller developers Parameter Operating Voltage: DC 4.2–6V; requires a 5V power source and Type-C power cable Output Voltage: 0.6V–25.6V, continuously adjustable Output Voltage Adjustment Method: Potentiometer Output Power: 5W Overcurrent Protection: Supported, 0.00A–1.25A continuously adjustable Overvoltage Protection: Supported, 0.00V–25.6V continuously adjustable Overload Protection: Supported, 0.00W–5.00W continuously adjustable Undervoltage Protection: Supported, 0.00V–25.6V continuously adjustable Over-limit Protection Response Time: 0.5 seconds Output Start Mode: Manual (default) / Automatic Over-limit Protection Handling: After eliminating the cause of the over-limit condition, press the “Start/Stop” button on the unit to clear the fault code Output Interface: 2-pin quick-connect port Output Interface Lifespan: 5,000 cycles Backlight Brightness: Supports 1–9 levels of backlight brightness adjustment; standby current 30 mA, screen-off standby current less than 1 mA Product Description The MINI5 has a maximum load of only 5W and is designed for scenarios such as business trips or other short-term, low-power power supply needs. It does not have an active cooling fan; it will generate heat when operating at full load and is only suitable for short-term testing purposes, not for long-term power supply use. If possible, an external fan may be used to assist with cooling the MINI5 during operation. Package include Mini Power Supply *1
