Cat8 Cat7 Cat6A RJ45 Tool-Free Connector, STP Shielded Field Termination Plug, PoE++ 100W, 10Gbps 600MHz Ethernet Modular Plug

High-concerned chemical : none Interface Type : Ethernet,RJ-45,Port RJ-45 Max. LAN Data Rate : 1000Mbps Certification : CE Origin : Mainland China Feature 1 : Cat8 Cat7 Cat6A RJ45 Tool-Free Connector Feature 2 : STP Shielded Ethernet Plug Feature 3 : RJ45 connector Feature 4 : Ethernet plug Feature 5 : Tool-free RJ45 connector Feature 6 : RJ45 field termination plug Feature 7 : Reusable RJ45 connector Feature 8 : PoE RJ45 connector

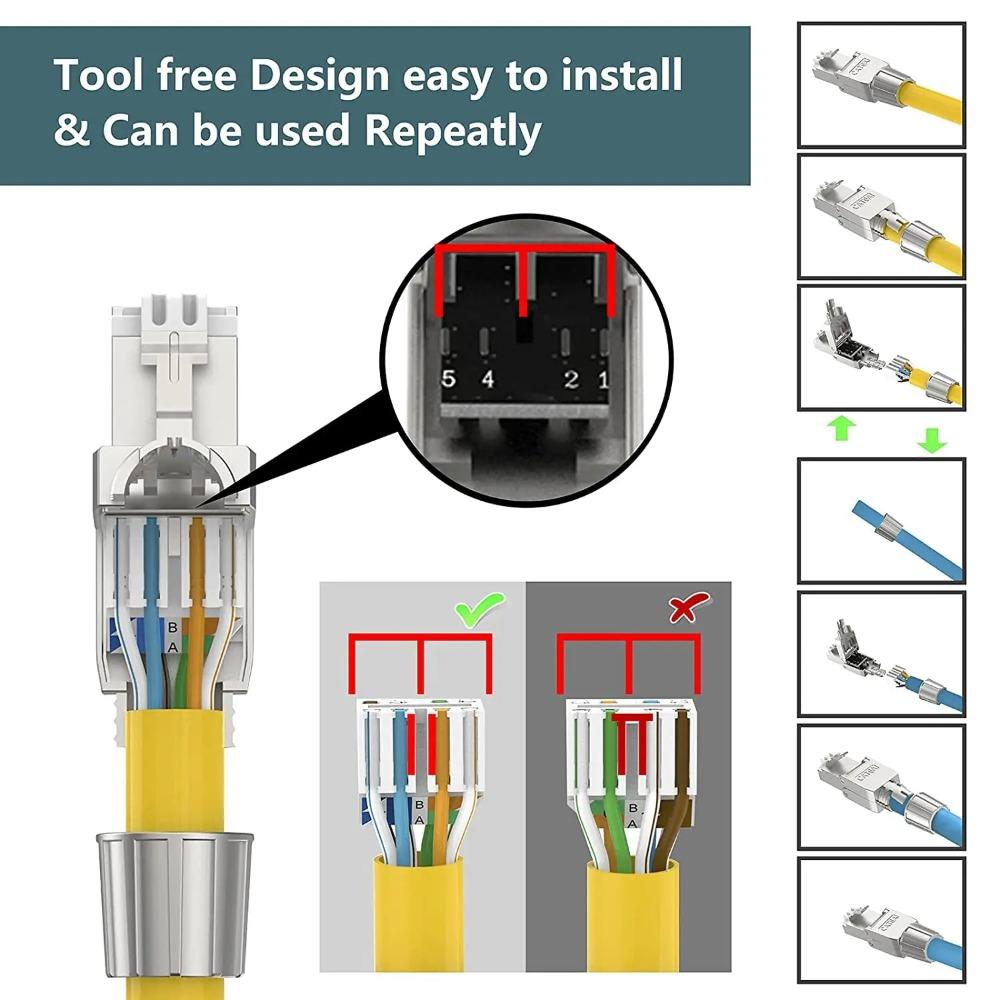

Cat8 Cat7 Cat6A RJ45 Tool-Free Connector, STP Shielded Field Termination Plug, PoE++ 100W, 10Gbps 600MHz Ethernet Modular Plug Excellent PerformanceThis product adopts component-level professional specifications, supporting 10G high-speed network transmission (10/100/1000/10000 Mbps) with a maximum transmission distance of 100 meters. It is compatible with 22-26AWG solid and stranded copper wires, and supports PoE, PoE+, PoE++ (IEEE 802.3af/at/bt) 4PPoE power supply with a maximum power of 100W. Adopting press forming technology, it greatly improves product stability and transmission performance with a tested bandwidth up to 600MHz. The strain relief structure is built with self-adjusting springs to ensure tight fitting between the cable shield and metal housing, achieving stable grounding performance.Easy OperationFeatured with self-terminating design, no crimping pliers or punching tools are required. The 90-degree toolless structure and snap-lock design ensure firm and stable installation. The dual-layer termination cover is printed with clear color codes for standard T568A and T568B wiring, which effectively separates wire pairs and reduces signal crosstalk. Built-in detachable anti-drop sliding lock prevents accidental disconnection and supports anti-tampering installation. The cuttable strain relief boot fits cable jackets with a diameter of 5.80mm to 7.80mm.Wide CompatibilityCompatible with all standard RJ45 Ethernet female ports. Made of high-strength metal material, it is wear-resistant and durable. The integrated full-circumference strain relief structure fully protects internal wire cores during and after installation, preventing wire damage and termination failure caused by improper operation. It supports F/UTP shielded cables, backward compatible with Cat5e and Cat6 cables, and also applicable to U/UTP unshielded cables.Quality CertificationCompliant with ANSI/TIA 568 2.D industry standards, with CE certification, TUV RoHS compliance, TAA compliance and ISO/IEC international standard certification. All products have passed on-site installation tests by professional technicians, featuring stable and reliable performance with long-term quality assurance. label:yes
