High-concerned chemical : none
Communication method : Bluetooth-Compatible
Camera Equipped : No
State of Assembly : Almost Ready
Model Number : 1/2/4 Channel For Bluetooth Relay
Compatibility : others
Brand Name : occkic
Origin : Mainland China
Certification : NONE
Single channel
The single channel Bluetooth relay module includes one channel 5V / 10A or one channel 12V / 10A relay module and spp-c Bluetooth serial port slave module. The switch of the relay can be controlled by sending instructions through the mobile phone app. It is a new and modified version, which is more practical and more stable.
Function description
1. Onboard high-performance MCU and spp-c Bluetooth 2.1 slave module;
2. Provide Bluetooth relay control app;
3. Control distance: 10M (open environment);
4. Working voltage: DC12V;
5. On board 1-way 12V, 10a / 250V AC, 10a / 30V DC relay, which can be pulled in for 100000 times continuously, with diode leakage protection and short response time;
6. Onboard Bluetooth status indicator and relay indicator;
7. UART debugging interface is reserved, which can be used to modify Bluetooth pairing password, etc.
8. Board size: 62 * 20MM
Instructions
1. Connect the power supply: the in + and in - of the module are respectively connected to the positive and negative poles of 5V / 12V (subject to the actual purchase) power supply.
2. Use app to control 1-way relay. There are two apps available: one is a special app for Bluetooth relay developed by LC electronics, and the other is a general app downloaded from Android application mall
2.1. Instructions for use of special app for Bluetooth relay:
2.1.1. Install the "lcbs test program" app and Bluetooth serial port transmission tool on the Android mobile terminal. Open the app and click "search Bluetooth". The default Bluetooth names are generally bta-04, jdy-30, spp-c, etc. connect the mobile phone to the Bluetooth module, enter the password and click OK (the initial password is 1234). After the connection is successful, the blue light changes from slow flashing to constant on, and then click the box to control the switch of the relay.
Dual channel
The 5V / 12V dual Bluetooth relay module includes two 5V / 10A and 12V / 10A relay modules and spp-c Bluetooth serial port slave module. The switch of the relay can be controlled by sending commands through the mobile phone app.
Functional features
1. It carries 8-bit high-performance microcontroller chip and spp-c Bluetooth 2.1 slave module
2. Provide Bluetooth relay control app
3. Control distance: 10M (open environment)
4. Working voltage: DC5V / 12V
5. On board 2-way 10A / 250VAC, 10a / 30VDC relay, which can be pulled in for 100000 times continuously,It has diode leakage protection and short response time
6. Onboard Bluetooth status indicator and relay indicator
7. UART debugging interface is reserved
8. Board size: 40 * 64.5mm
Instructions
1. Connect the power supply: the in + and in - of the module are respectively connected to the positive and negative poles of 5V / 12V (subject to the actual purchase) power supply
2. Use app to control 2-way relay. There are 2 apps available: one is a special app for Bluetooth relay developed by LC electronics, and the other is a general app downloaded from Android application mall.
2.1. Instructions for use of special app for Bluetooth relay:
2.1.1 install the "lcbs test program" app and Bluetooth serial port transmission tool on the Android mobile terminal, open the app, click "search Bluetooth", connect the mobile phone to the Bluetooth module, enter the password and click OK. After the connection is successful, the blue light changes from slow flashing to constant on, and then click the box to control the switch of the relay

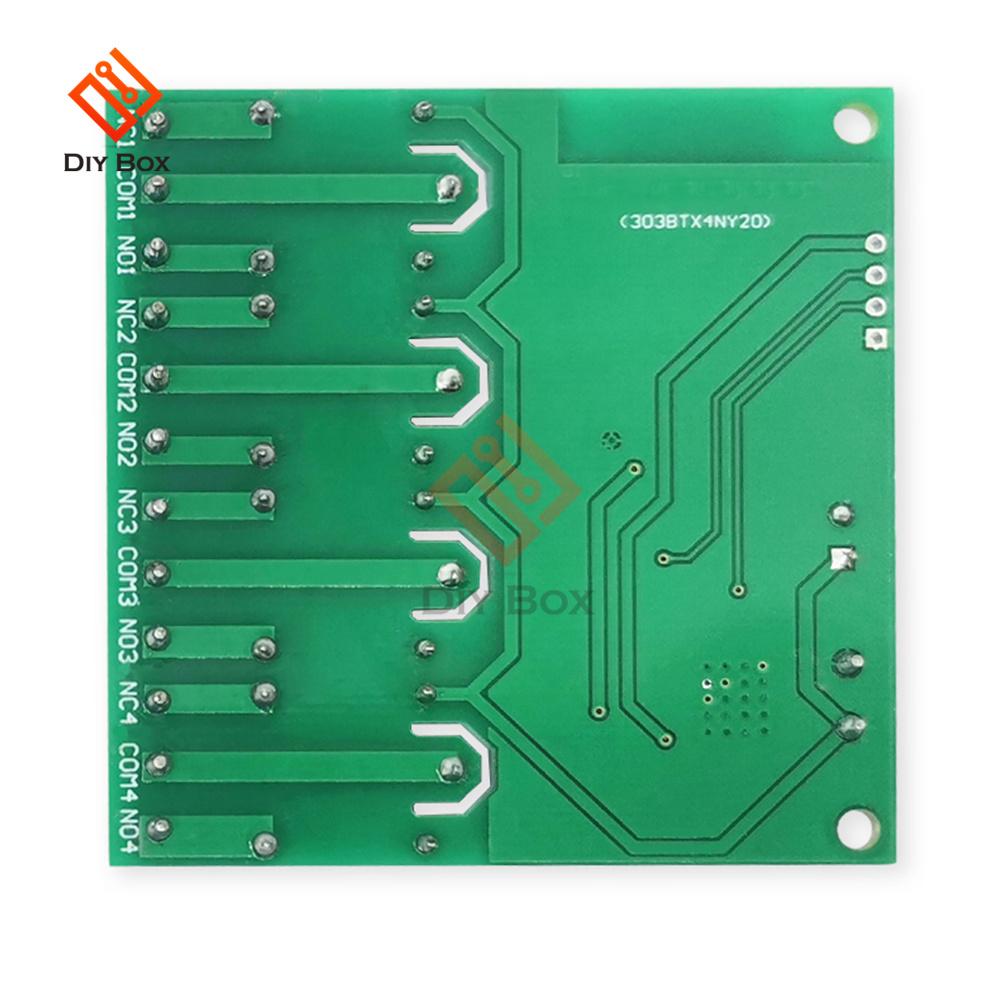

4-channel
The 5V / 12V 4-way Bluetooth relay module includes 4-way 5V / 10A relay module and jdy-31 Bluetooth module, which can control the switch of the relay by sending tracking commands through the mobile phone app.
Product function
1. Onboard jdy-31 Bluetooth module, supporting spp protocol;
2. Provide Bluetooth relay control app;
3. Control distance: 30m (open environment);
4. Working voltage: DC5V;
5. On board 4-way 5V, 10a / 250V AC, 10a / 30V DC relay, which can be pulled in for 100000 times continuously, Diode leakage protection with short response time;
6. Onboard Bluetooth status indicator and relay indicator;
7. UART debugging interface is reserved.
8. Board size: 60 * 62.7mm weight: 56g
label:yes
