12V Timer Relay On-Off Automotive Digital Delay Relay Electric Delay Timer Switch Cycle Time Delay Module With Casing

Wireless Function : No Output Power : ＜18.65 Use : others High-concerned chemical : none Communication method : Other Camera Equipped : No State of Assembly : Ready-to-Go Model Number : 12V power-on and power-off delay switch relay module Compatibility : others Brand Name : occkic Origin : Mainland China State of Assembly : Ready-to-Go Certification : NONE

Features: 1.High quality shell, dustproof and flame retardant. 2.Automotive modification parts 3.Time is optional, you can choose according to your own needs. 4.Easy to operate and can automatically close at a fixed time 5.Widely used, such as exhaust fans, engines, cooling fans, lighting, navigation, media sound effects, delayed lifting of doors and windows, and other automotive circuit power-off delay control Parameters: Name: Automotive power on/off delay switch Model: YS-RT1Q Shell with hole specification: 63 * 35 * 22mm Bare board specification: 45 * 29 * 18mm Power supply voltage: DC 12V Standby current: ≤ 10ma Working current: 68ma (current after the trigger switch is turned on) Output control voltage: DC 0-14V, AC 0-125V Output control current:<11A Working temperature and humidity: -20 ℃ to 70 ℃, RH ≤ 80% Switch workflow: After powering on the switch, when ACC detects power and delays for 8 seconds, the switch remains closed. In this case, ACC detects no power and delays for X, and when the time is up, the switch opens. (Among them, 8 seconds is a fixed time that cannot be modified by users and can be d)

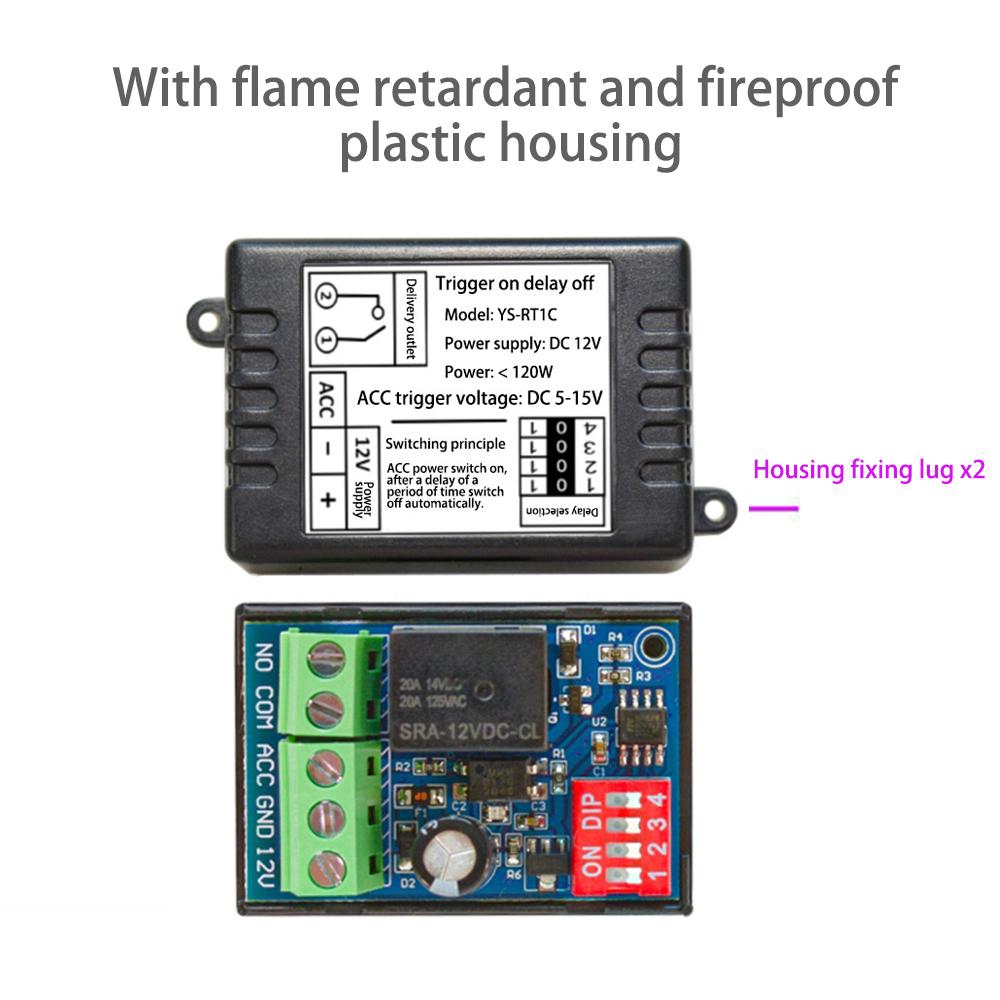

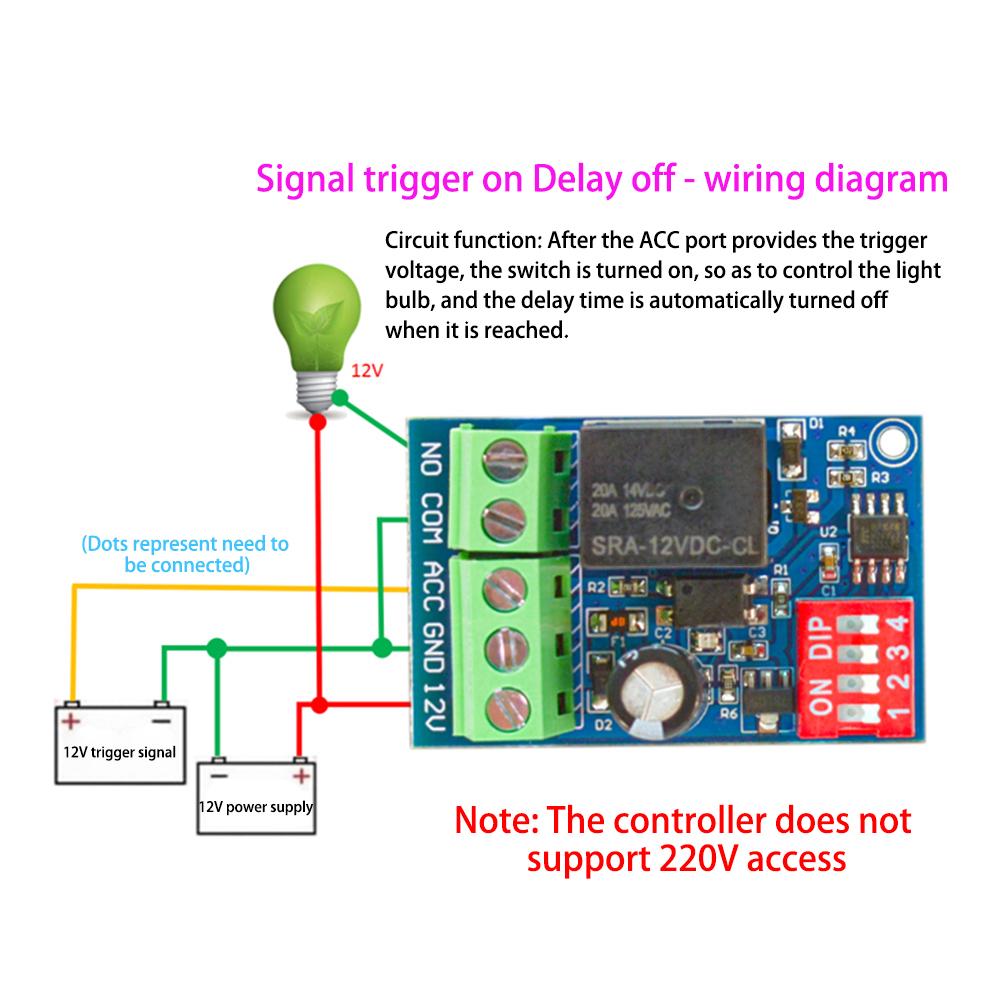

Model: YS-RT1C Specification: 50x35x22mm Power supply voltage: DC 12V Working current: 68ma (current after the trigger switch is turned on) Standby current: 10ma Output control voltage: DC 0-14V, AC 0-125V Output control current:<11A Working temperature: -20 ℃ to 70 ℃ Working principle: After connecting the power to this device, the trigger port provides voltage triggering, and the switch automatically closes after a delay of a certain period of time when opened

Model: YS-RT1K Shell with hole specification: 63 * 35 * 22mm Bare board specification: 45 * 29 * 18mm Power supply voltage: DC 12V Standby current:<3MA Working current: 68ma (current after the trigger switch is turned on) Output control voltage: DC 0-14V, AC 0-125V Output control current:<11A Working temperature: -20 ℃ to 70 ℃ Working principle: After connecting the power to this device, the switch will open and delay for a period of time before closing. Common function: Check whether the external power supply has power, as a trigger signal to control lower level equipment.

Model: YS-RT1T Specification: 50x35x22mm Power supply voltage: DC 12V Working current: 68ma (current after the trigger switch is turned on) Output control voltage: DC 0-14V, AC 0-125V Output control current:<11A Working temperature: -20 ℃ to 70 ℃ Working principle: After connecting the power to this device, the device will delay for a period of time before turning on the output

Model: YS-RT1M Shell with hole specification: 63 * 35 * 22mm Bare board specification: 45 * 29 * 18mm Power supply voltage: DC 12V Standby current: ≤ 10ma Working current: 68ma (current after the trigger switch is turned on) Output control voltage: DC 0-14V, AC 0-125V Output control current:<11A Working temperature: -20 ℃ to 70 ℃ Package include: Car power outage delay switch * 1 label:yes
