Wide Voltage Battery Voltage Capacity Indicator LCD Screen Low Sleep Power Dustproof Waterproof Embedded Mount Battery Monitor

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : DC 9-120V Type : Module Operating Temperature : -10-60C Origin : Mainland China Condition : New Lead Acid Battery : Ternary Lithium Battery LiFePO4 Battery : Multi Type Battery Universal Battery Indicator : Dual Display Voltage And Capacity Low Power Sleep : Waterproof Dustproof Embedded Panel Mount : Undervoltage Warning

Features: 1. High-Definition LCD Display: Features a wide-viewing-angle LCD screen with clear, easy-to-read digits that display voltage and remaining battery level in real time, making it easy to read both day and night. 2. Wide DC Voltage Compatibility (9–120 V): Supports 9–120 V DC systems and is suitable for a wide range of devices, including electric vehicles, motorcycles, RVs, solar energy storage systems, and UPS power supplies. 3. Smart Adaptation to Multiple Battery Types: Supports mainstream battery types such as acid battery, ternary lithium batteries, and lithium iron phosphate (LiFePO₄) batteries; settings can be adjusted based on actual battery parameters 4. Dual Monitoring of Voltage and Charge Level: Monitors changes in battery voltage and remaining capacity in real time, providing early warnings of low charge levels to prevent risks associated with sudden power loss 5. Snap-Fit Installation and Sealed Protective Design: Features a snap-fit, embedded structure for quick and secure installation; the sealed housing design offers excellent dust and water resistance, making it suitable for use in challenging environments

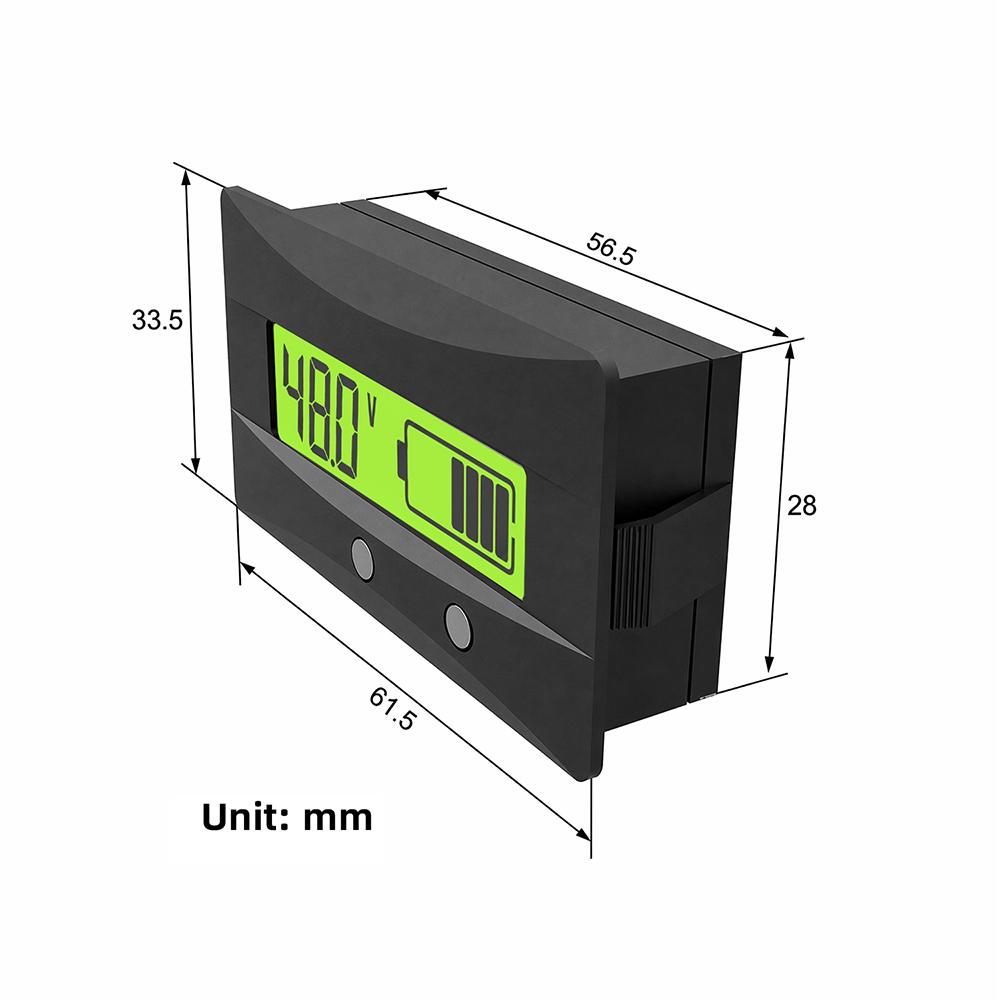

Parameter: Input Voltage: DC 9–120 V Sleep Mode Power Consumption: <1 mA Maximum Power Consumption: <10 mA Refresh Rate: 0.5 s Voltage Measurement tolerance: ±1% Battery Level Measurement tolerance: ±10% Operating Temperature: -10–60 °C Backlight Color: Green, Blue, White (optional) Product Dimensions: 61.5 × 33.5 × 16 mm Cutout Dimensions: 58 × 29 mm Lead Length: 30 cm

Package include: Battery indicator*1 Wiring*1 label:yes
