Quantity : 1
High-concerned chemical : none
Package : SOP
is_d : Yes
Supply Voltage : 3V-3.7V
Type : Module
Origin : Mainland China
Condition : New
Operating Temperature : 0-50C
Feature 1 : 2.4G 4CH RC Transmitter And Receiver
Feature 2 : RC Motor Servo ESC Controller
Feature 3 : Multi-mode RC Receive Kit
Feature 4 : One To One Code Lock RC Module
Feature 5 : RC Car DIY Remote Control Kit
Feature 6 : RC Boat Model Receiver Board
Feature 7 : Adjustable Speed RC Drive Module
Feature 8 : 2.4G Anti-interference RC Transmitter Receiver
Product Features
1.2.4G four channel remote control receiver kit, compatible with motors, servos, and brushless ESC
2. One on one lock code anti crosstalk, dozens of sets can be turned on at the same time, and the signals do not interfere with each other
3. One click dual-mode switching, no need for complex settings, quickly adapt to different working conditions
4. Supports brushless motors, with three adjustable speeds and controllable power gears for smooth operation
5. DIY model accessories with strong expandability, easy to make and assemble small cars and model planes
Product Introduction
The remote control set can be paired with one code, and multiple sets can be used without serial code or interference. One set of control board has five usage modes, and the sub control mode and differential mixed control mode can be freely switched. It can also be used to drive one unidirectional or bidirectional electrically controlled brushless motor and 180 ° servo, supporting three speed regulation and mode conversion
Product Specifications
Normal version:
Remote control board operating voltage: DC3V to 3.7V
Receiver board working voltage: DC3V to 6V (7.4V power supply not supported)
Terminal: PH2.0
Maximum support for motors: N20, TT motors up to 13000 rpm, conventional speed motors up to 130, 180, 280, 370 rpm (no hollow cup motors or violent motors of any type are available)
Enhanced version:
Remote control board operating voltage: DC 3V to 3.7V
Receiver board working voltage: DC 3.7V to 12V
Terminal: XH2.54
Maximum motor support: 130, 280, 370, 540 motors within 13000 rpm are supported for motors up to 7.4V, and 370 motors within 13000 rpm are supported for motors above 7.4V (please do not overload to use as it may damage the control board) (No high-speed or violent motors of any model are available)
Attention:The servo and ESC drive ports on the receiving board do not have voltage reduction function. The input and output voltages are the same. Please check if the current voltage used can be used with the servo or ESC. If it does not meet the requirements, an external voltage reduction module is needed to avoid damaging the servo or ESC
Kind reminder
This module is suitable for various DIY or upgraded vehicles, ships, as well as machinery and structures that require remote control
However, it is not applicable to aviation production
Please use according to the correct parameters specified, otherwise it may damage the receiving board and remote control module
Packing List

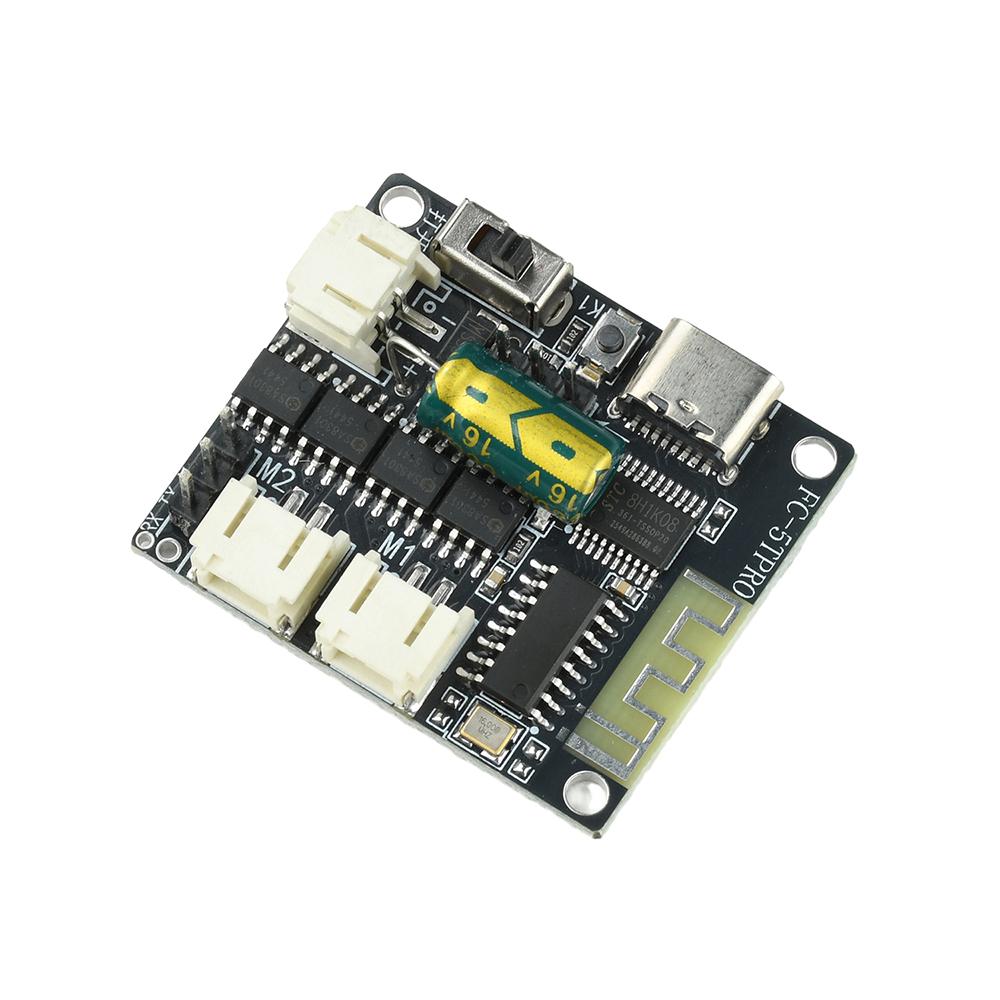

Receiver board * 1
Remote control board * 1
label:yes
