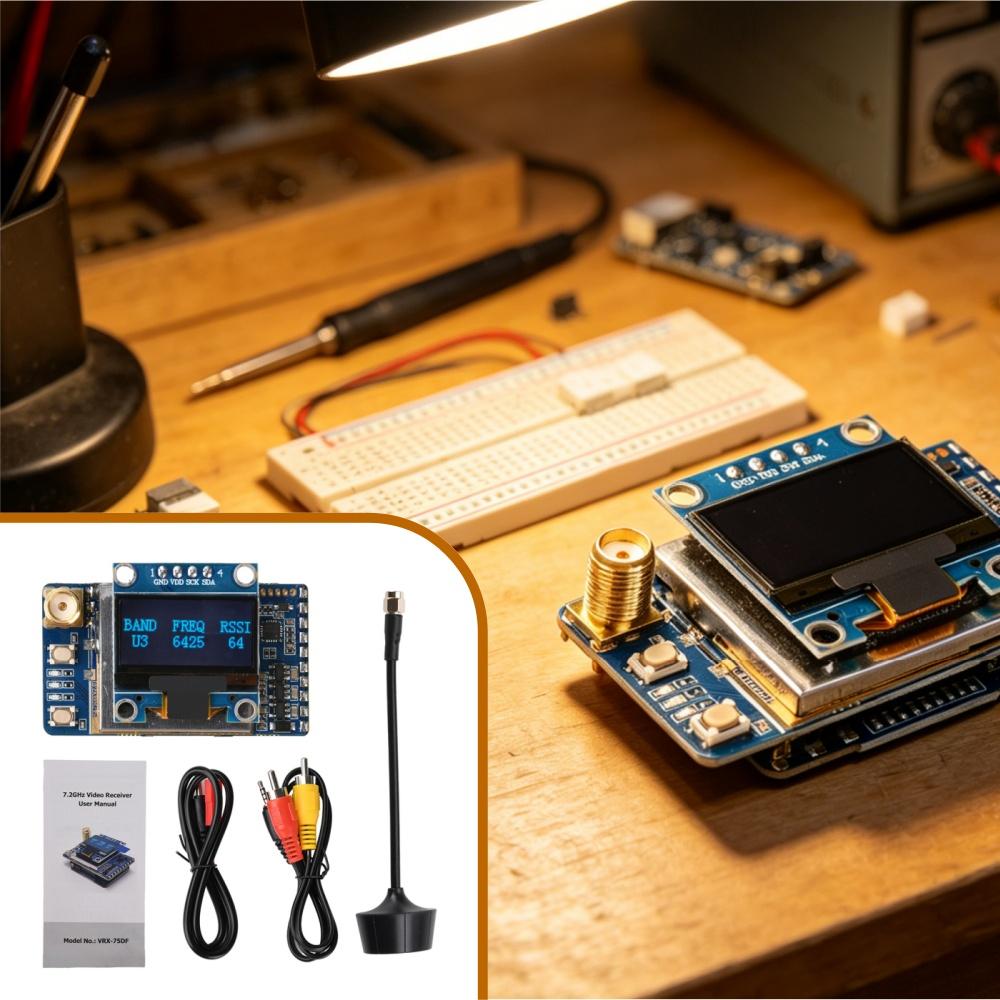

VRX-75DF 6110-7210MHz FPV Video Receiver 64CH LED Indicator High Sensitivity Stable Signal for FPV Drone Wireless Transmission

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : DC 5-36V Type : Module Origin : Mainland China Condition : New Operating Temperature : -10-65C

Broadband coverage: 6.1-7.2GHz ultra wide receiving range, 64 channels compatible with mainstream FPV frequency bands 2. High sensitivity reception: -95dBm reception sensitivity, stable signal reception over long distances without disconnection 3. Real time signal display: OLED screen intuitively displays frequency bands, channels, and RSSI strength, making debugging more convenient 4. Three light status indication: red, green, and blue LEDs provide precise feedback on the working status, displaying frequency bands and channels in real-time 5. Wide range of application scenarios: suitable for FPV drones, ground station systems, wireless communication platforms, etc Product Name: 7.2GHz Video Receiver Channel: 64CH Supply voltage: DC 5-36V Current consumption: 420mA Max Working environment: -10~+65 º C, 85% RH Storage temperature: -30~+85 º C Display screen: 0.96-inch OLED display screen Application scenarios: FPV unmanned aerial vehicles, ground station receiving systems, wireless communication experimental platforms, etc Indicator lights: three indicator lights: green, blue, and red Indicator light description: 1. Green LED indicator light, flashing times represent the current frequency band 2. Blue LED indicator light, flashing indicates that the channel is currently being automatically searched for 3. The red LED indicator light flashes several times to represent the current channel Radio frequency (RF): Receiving frequency range: 6110~7210MHz Input standing wave ratio: 2:1 Demodulation method: FM/PLL Intermediate frequency IF: 480MHz Receiver sensitivity: -95dBm Video Characteristics: Video output impedance: 75 ohms, Typ Video output level: 1Vp-p, Typ 3dB intermediate frequency bandwidth: 16.5MHz Signal to Noise Ratio (S/N): 38dB, Min RSSI Output Voltage(-30dBm~-90dBm)：1.3~0.7V Description VRX-75DF is a receiving module that, when used in conjunction with an OLED display screen, can display frequency bands, channels, and RSSI signal strength, with a receiving frequency range of 6.1-7.2GHz. This module is equipped with a 2.5mm diameter headphone jack for video output and a DC_ Φ 1.3mm power interface, supporting an input voltage range of 5-36V. Button usage instructions: Frequency band button: 1. Lightly press to adjust the current frequency band range FR1~FR8, with green light indicating the period. The number of flashes represents the current frequency band. OLED display screen dynamically displays the current frequency band 2. Press and hold the frequency adjustment button for 2 seconds to enter automatic search mode. The flashing blue indicator light indicates that an automatic search is currently being performed on the image signal channel. After the search is completed, the channel image with the strongest signal will be displayed. The OLED screen will dynamically display the channel currently being automatically searched. Channel button: Short press to adjust current channels CH1~CH8, red indicator light indicates cycling status. The number of flashes represents the current channel. The OLED screen dynamically displays the current channel. Caution: Do not touch the OLED display connection pins during use, otherwise it may cause garbled characters. If accidentally touched, please press the automatic search button to refresh. Receiver x1 Antenna x1 Wiring x2 Instruction manual x1label:yes
