1.06 Inch TFT DC Voltage Current Power Meter Type‑C Bidirectional Current Measuring Tester DC4‑30V 0‑6.5A Multifunction Monitor

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : DC 4-30V Type : Module Origin : Mainland China Condition : New Operating Temperature : 0-50C Feature 1 : DC Voltage Current Meter Feature 2 : TypeC Power Meter Feature 3 : Battery Capacity Tester Feature 4 : Bidirectional Current Test Feature 5 : Digital DC Multimeter Feature 6 : TFT Display Power Meter Feature 7 : Charge Parameter Monitor

Features: 1. Features a 1.06-inch TFT HD display for a brighter, clearer view and more accurate measurement of bidirectional voltage and current 2. Real-time monitoring of various parameters, including voltage, current, power, capacity, energy, elapsed time, and CPU temperature 3. Single-click to switch between screens; double-click to rotate the screen orientation for more convenient viewing, meeting the needs of various settings 4. Displays multiple data points for charging devices such as chargers and power banks on a single screen, meeting diverse testing needs 5. Fully compatible with all interfaces; supports recording of single-cycle peak power, maximum voltage, and current; bidirectional current testing; and real-time charging power monitoring

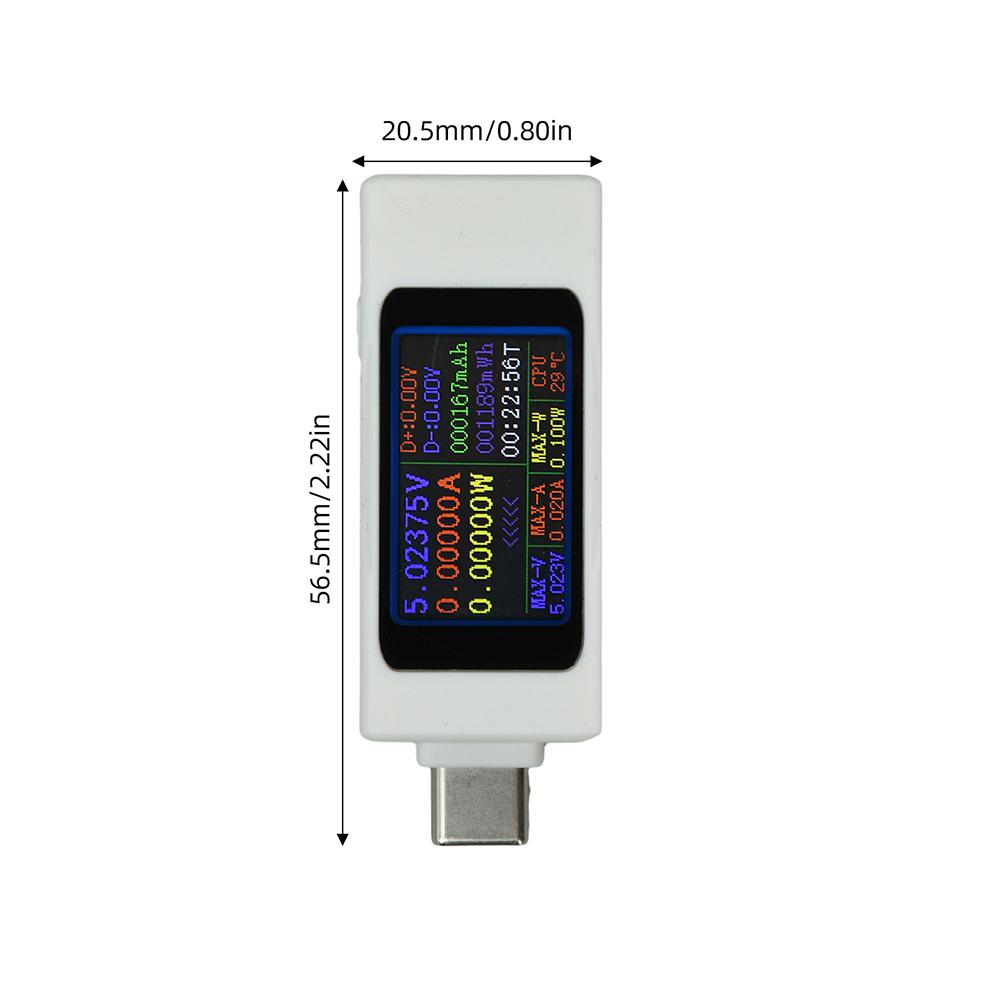

Parameter: Voltage: DC 4–30 V Current: 0–6.5 A Power: 0–195 W Capacity: 0–666,666 mAh Energy: 0–999,999 mWh Countdown: 0–99 hours Connector: Type-C Product Dimensions: 56.5 × 20.5 × 9.3 mm

Package include: Tester*1 Instruction Manual*1 label:yes
