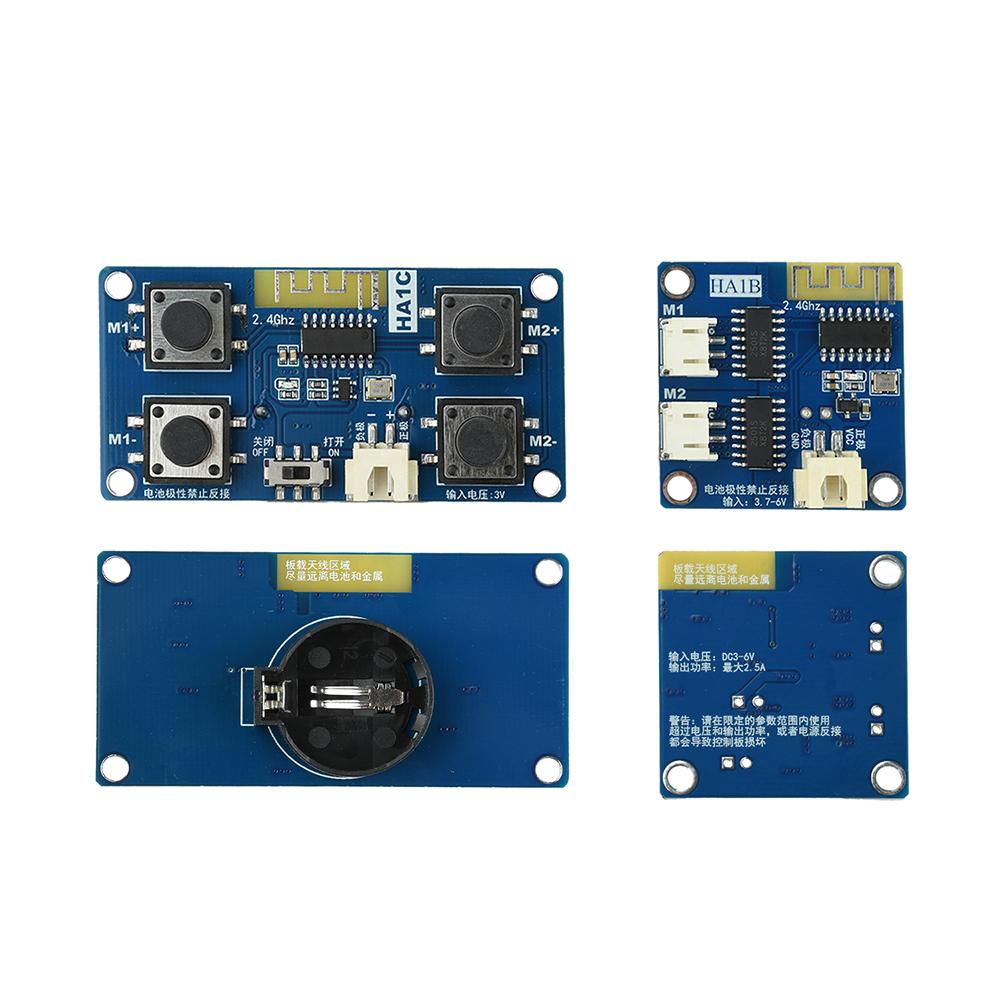

4CH 2.4G Differential RC Receiver Transmitter Module Kit For Diy RC Toy Car Boat Model Automatic frequency matching

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : 3-6V Type : Module Origin : Mainland China Condition : New Operating Temperature : 0-50C Feature 1 : 4 Channel RC Receiver Feature 2 : Differential Wireless RC Module Feature 3 : RC Boat DIY Kit Feature 4 : Toy Car Remote Control Kit Feature 5 : 2.4G 4CH Differential RC Transmitter Receiver Feature 6 : DIY RC Model Car Boat Module Feature 7 : 2.4G Anti-interference RC Receiver Board Feature 8 : 4CH Toy Vehicle Wireless Remote Control Kit

Product Features 1.2.4G anti-interference, stable signal, strong penetration, multiple people in the same field without frequency interference 2. Four channel independent control, forward/backward/left/right turn, flexible handling and fast response 3. Differential bidirectional communication, precise control with low latency, suitable for both vehicle and vessel models 4. Adopting XH2.0 and PH2.0 standard interfaces, the connection is more stable and reliable 5. Intelligent automatic frequency matching design, indicator light prompts for more convenient operation

Product Specifications Receiving board voltage: 3V-6V (7.4V not supported) Peak current: 2.5A Remote control voltage: 3V-3.7V Applicable motors: N20, TT motors, 130, 180, 280 conventional speed motors within 12000 rpm (no hollow cup motors or violent motors of any model are available) Remote control distance on open ground: 80 meters Remote control distance on open water surface: 50 meters

Code method First use, code operation is required The coding method is as follows: 1: First, turn off the receiver board and remote control board, then long press the M1+and M1- buttons on the remote control board (hold down and do not release), and then turn on the remote control board switch until the LED light on the remote control board flashes quickly, entering the pairing mode 2: After the remote control board light flashes, you can release the two buttons and turn on the receiver that needs to be paired with the code. At the moment of power on, the code lock will be automatically completed (automatically connected the next time you turn on). At this time, the remote control board light stops flashing. Pressing any button on the remote control board will turn on or off the lights corresponding to the remote control board and receiver board, indicating a successful code pairing operation

Packing List Receiver board * 1 Remote control board * 1
