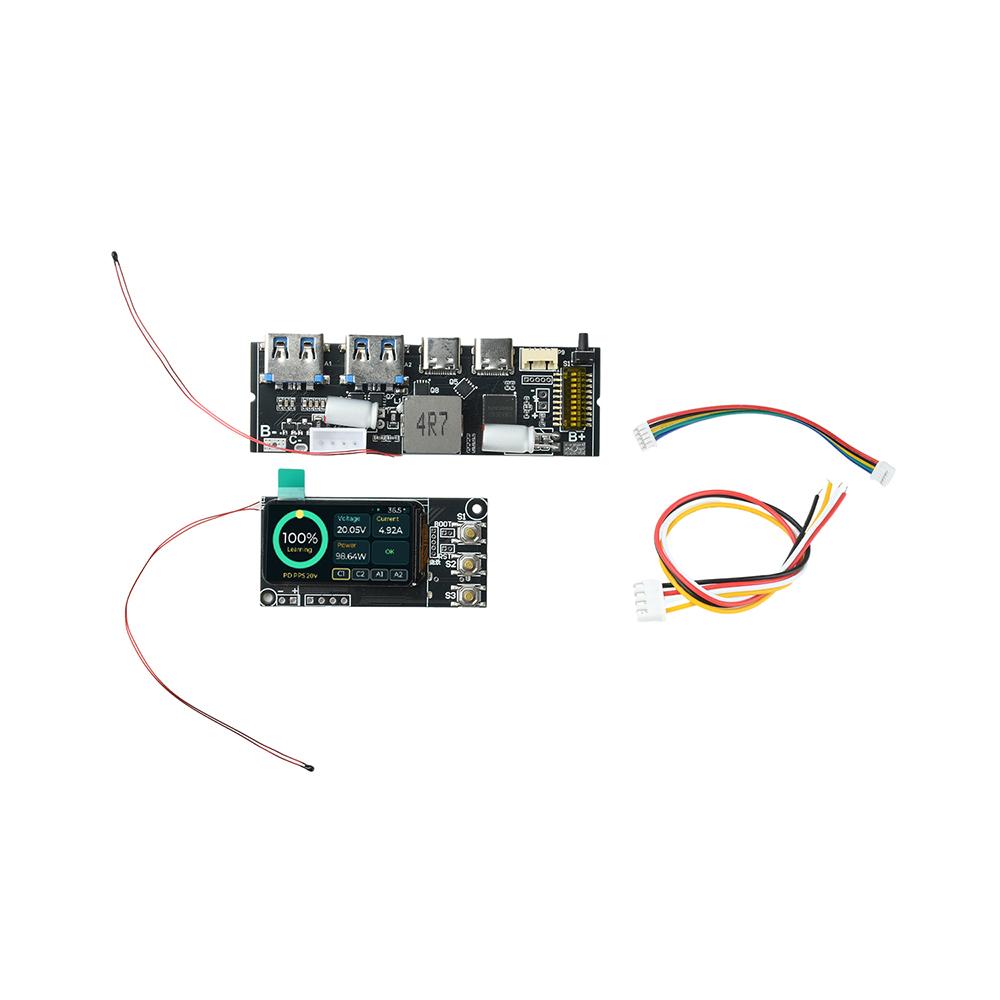

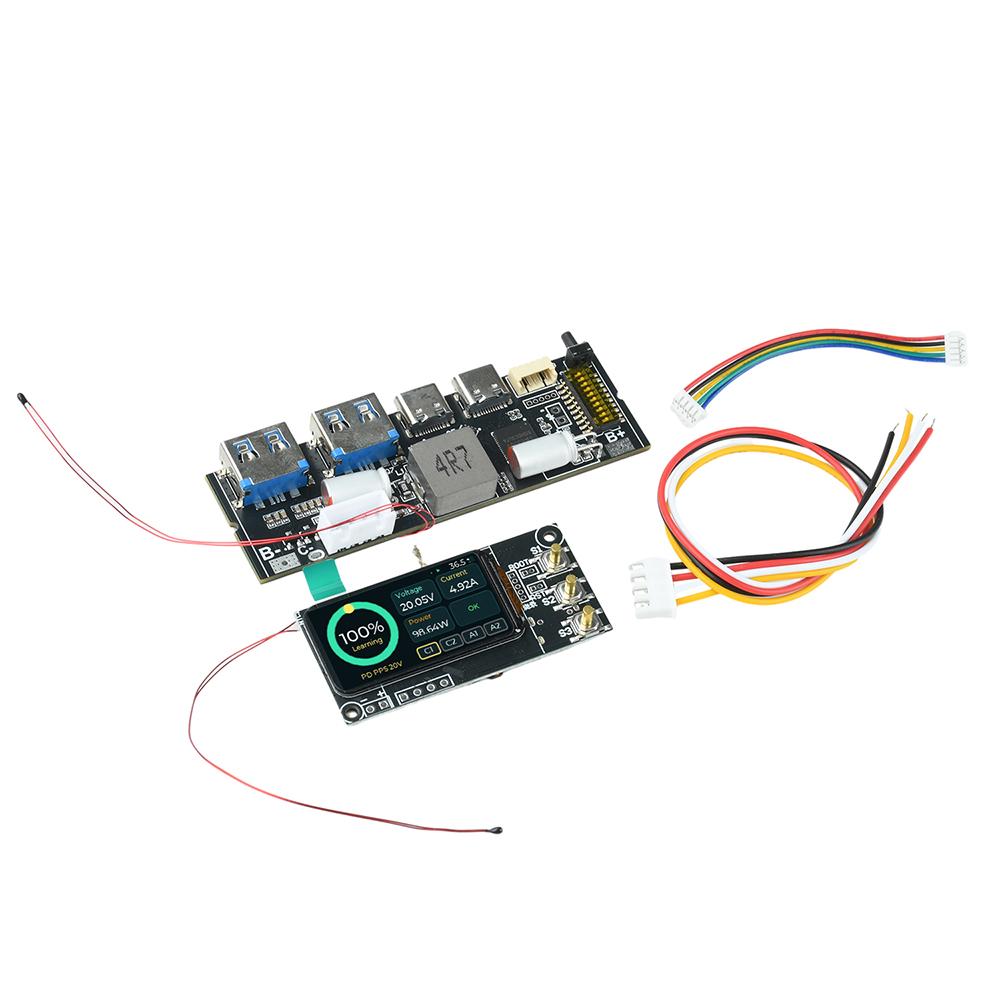

3-5S Lithium Battery Charging Diy Board 1.47 Inch Tft Display Mppt Solar Charging 100W Bidirectional Super Fast Charging Module

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Dissipation Power : 100W Supply Voltage : 5V Type : Module Origin : Mainland China Condition : New Operating Temperature : 0-50C Feature 1 : 100W Power Bank DIY Module Feature 2 : Bidirectional Fast Charging Board Feature 3 : 3-5S Lithium Battery Charging Module Feature 4 : PD3.1 Fast Charge Board Feature 5 : UFCS Universal Charging Module Feature 6 : 1.47 Inch TFT Color Screen Feature 7 : MPPT Solar Charging Function Feature 8 : Auto Buck Boost Voltage Regulation Feature 9 : Adjustable Voltage Current Power Feature 10 : Full Protection Charging Board

Product Features 1. Both input and output support 100W full power, compatible with 3-5S lithium batteries and 3.6-4.5V voltage, with wide applicability. 2. Equipped with MPPT function, it can be connected to solar panels to achieve maximum power point tracking charging and efficiently utilize light energy. 3. Adopting automatic voltage rise and fall technology, intelligent switching between PWM and PSM modes, balancing efficiency and power consumption. 4. Integrate a complete set of protection mechanisms such as overcurrent, overvoltage, short circuit, over temperature, and low temperature to ensure the safety of equipment and battery use. 5. Provide nearly 30 adjustable menu parameters to meet the refined setting needs of deep players and professional users 6. No need for decoy, can directly output adjustable voltage of 3.3~21V, can set USB port output voltage, current and power, one machine for multiple purposes

Input/Output Fast Charging Protocol Type-A1 and Type-A2 support UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCP Output Protocol Type-C1 and Type-C2 support PD3.1/UFCS/AFC/FCP/SCP input protocols Type-C1 and Type-C2 support PPS/PD3.1/UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCP output protocols Micro-B supports UFCS/AFC/FCP/SCP input protocols IP supports PD3.1 input protocol

Voltage, current, power PPS/PD3.1： 20V@5A The 3.3V-21V@5A ， Maxin100W/Maxout60W UFCS： 3.4-21V@5A ， Maxin100W/Maxout60W QC2.0：5V3A/9V3A/12V2.8A/20V1.5A QC3.0： 3.6V-20V@200mV /step! 5V@3A / 9V@3A / 12V@2.8A / 20V@1.5A QC3+： 3.6V-20V@20mV /step! 5V@3A / 9V@3A / 12V@2.8A / 20V@1.5A AFC：5V3A/9V3A/12V2.8A FCP：5V3A/9V3A/12V2.8A SCP：OUT3.3V-12V、IN5V/9V/10V/12V、 Support 10V4A PE1.1：5V/7V/9V/12V PE2.0： 5V-12V@500mV /step SFCP：5V/9V/12V VOOC: Supports 5V for VOOC, 10V5A for 1.0, and 10V6.5A for 2.0

The motherboard must be connected to the battery according to the wiring method shown in the diagram. If the battery comes with its own protection board, only the positive and negative terminals of the battery need to be connected to the B+and C - pads of the motherboard. Otherwise, the integrated protection of the motherboard must be wired according to the diagram, and a balance wire needs to be connected, otherwise it cannot be activated and used normally!!!

Packing List Mobile power module * 1 Balance line * 1 label:yes
