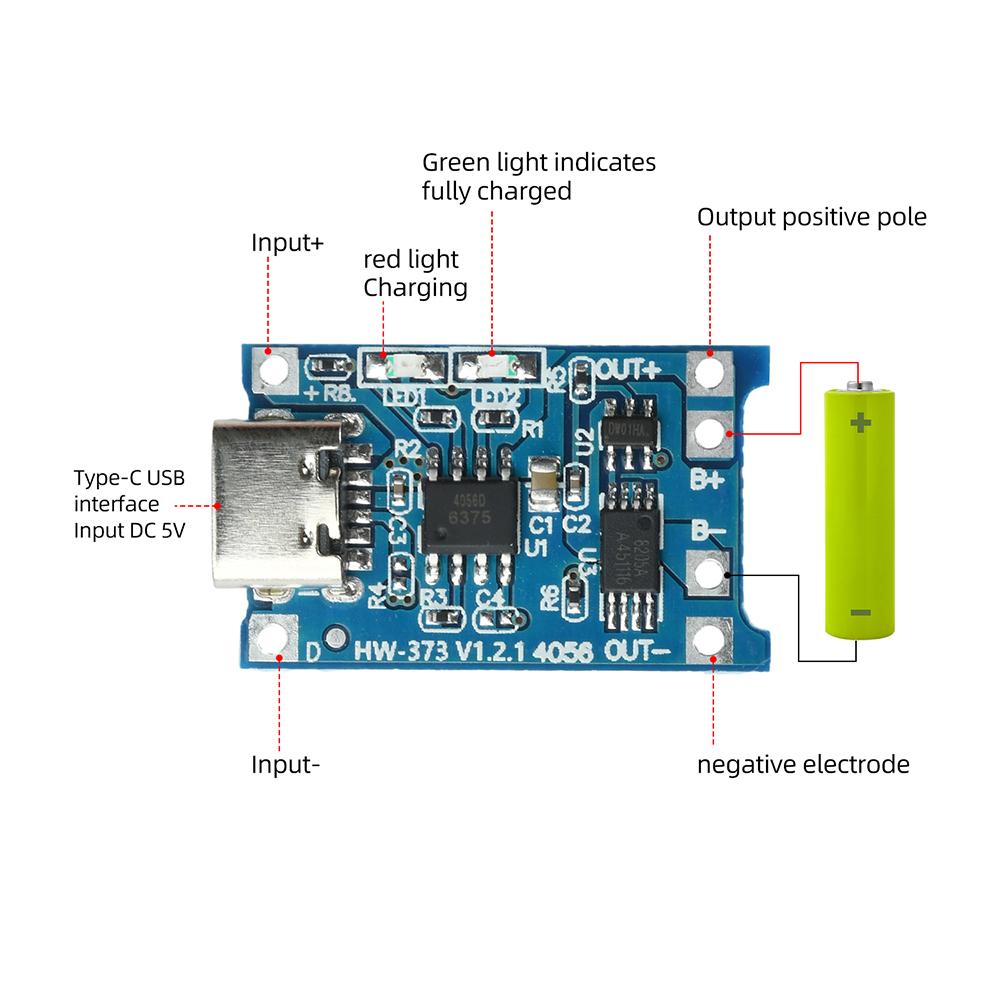

18650 Lithium Ion Battery Charging Board Type‑C 5V 1A TC4056 Module With Indicator Light And Battery Holder

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : 4.35-6V Type : Module Origin : Mainland China Condition : New Operating Temperature : 0-50C Feature 1 : 18650 Lithium Battery Charger Module Feature 2 : TC4056 Charger Board Feature 3 : TypeC Lithium Battery Charger Feature 4 : Charger Module With Battery Holder Feature 5 : Lithium Battery Charger With Protection Feature 6 : 5V 1A Charging Module Feature 7 : Overcharge Overdischarge Protection Lithium Charge

Product Features 1. Mainstream TYPE-C interface, supports 5V/1A input, multiple devices can be powered 2. Built in TC4056 charging management effectively extends battery life 3. Comes with overcharge, overdischarge, and overcurrent protection, safe and reliable 4. Integrated 18650 battery holder, the battery can be charged directly by inserting it, making it easy to replace 5. Charging red light, fully charged green light, progress visible intuitively

Product Introduction This module is a charging management module designed specifically for 18650 lithium batteries, powered by mainstream TYPE-C interface, supporting 5V/1A input, compatible with various power sources such as mobile phone chargers, power banks, computer USB, etc., making charging more convenient. Built in TC4056 charging management chip, efficient charging and effectively extending battery life. On board multiple protection circuits with safety protection functions such as overcharging, overdischarging, and overcurrent, providing a more secure use. The module is equipped with an 18650 battery holder, which does not require welding. The battery can be charged directly by inserting it, making it convenient and quick to replace. Equipped with a charging status indicator light, the red charging light is on, and the charging progress from full charge to green light is clear at a glance. Product Parameters Input voltage: 4.35-6V (recommended voltage of 5V) Charging cut-off voltage: 4.2 V+/-1% Maximum charging current output: 1000mAh Battery overcharge protection voltage: 4.28V Battery overcharge boost: 4.00V Battery discharge protection voltage: 3.0V Battery discharge termination voltage: 3.2V Battery: overcurrent protection current 3A Lamp status: No load, no light on, red light charging, fully charged, green light

Packing List Charging pad * 5 Battery compartment * 5 label:yes

Number of ports: 1 port
