1.3 Inch ST7789 LCD ESP32-C6 Board 240×240 Resolution QMI8658 6-Axis WiFi6 BLE5 Type-C for AIoT Secondary Development

High-concerned chemical : none Display Mode : 1 is_d : Yes Model Number : 240x240 Type : TFT Origin : Mainland China Resolution : 240x240

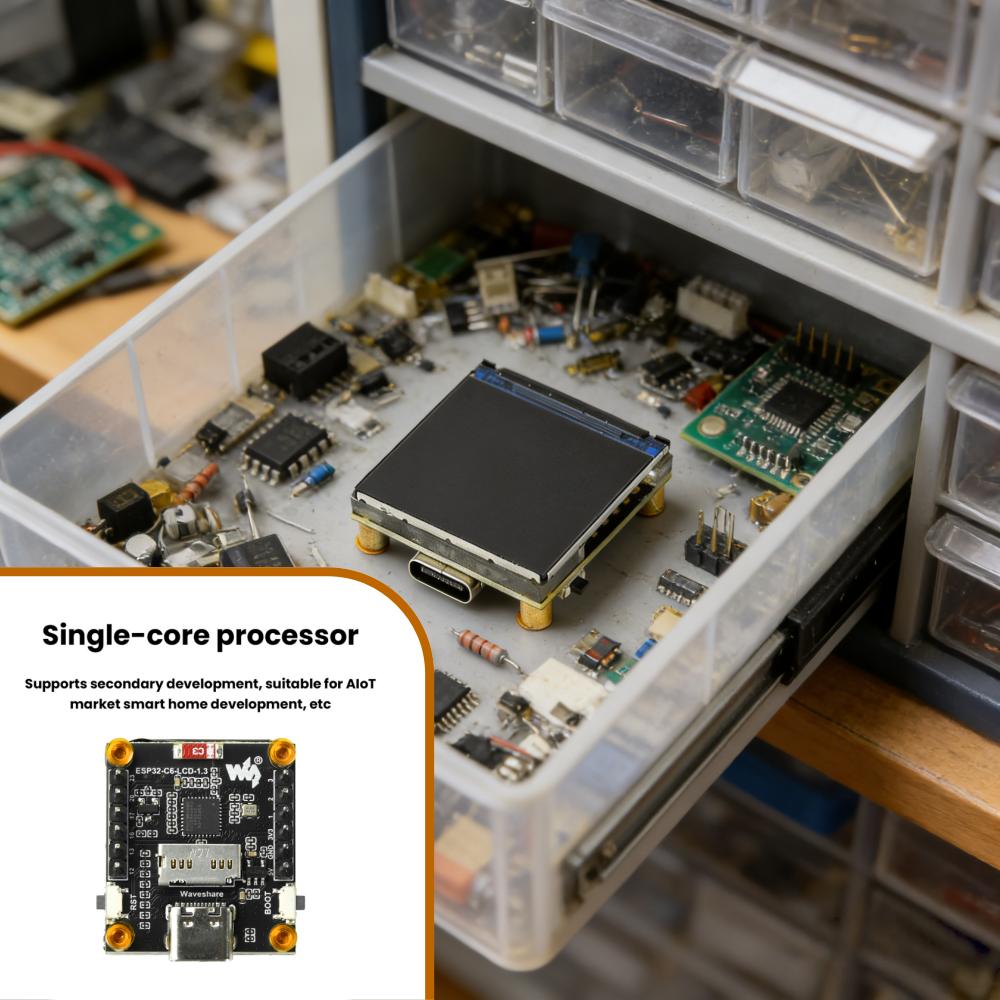

Product Features: 1. Equipped with RISC-V 32-bit single core processor, low power consumption and high performance 2. Supports Wi Fi 6+BLE 5 wireless transmission, onboard antenna 3. Onboard 1.3-inch LCD display screen with a resolution of 240 × 240, capable of displaying color images clearly 4. Onboard QMI8658 six axis inertial measurement unit, supporting attitude perception development 5. Support secondary development, suitable for the development of smart homes in the AIoT market.

Characteristic parameters: Low power SoC equipped with RISC-V 32-bit single core processor, with a clock speed of up to 160 MHz Supports 2.4GHz Wi Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna Built in 320 KB SRAM, stacked 4 MB Flash Adopting Type-C interface, there is no need to worry about forward and backward insertion Onboard 1.3-inch LCD screen, 240 × 240 resolution, 262K color, capable of displaying color images clearly Built in ST7789V2 driver chip, using SPI does not occupy too many interface pin resources Onboard QMI8658 six axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), capable of detecting motion posture and expanding applications Onboard 3.7V MX1.25 lithium battery charging and discharging interface Introduce a 9-pin 2.54mm spacing GPIO interface for external devices and debugging, allowing for flexible configuration of peripheral functions

LCD screen parameters: Display panel: IPS Display size: 1.3 inches Display resolution: 240 × 240 pixels Display color: 262K Communication interface: SPI Driver IC: ST7789

Product list: 1X development board
