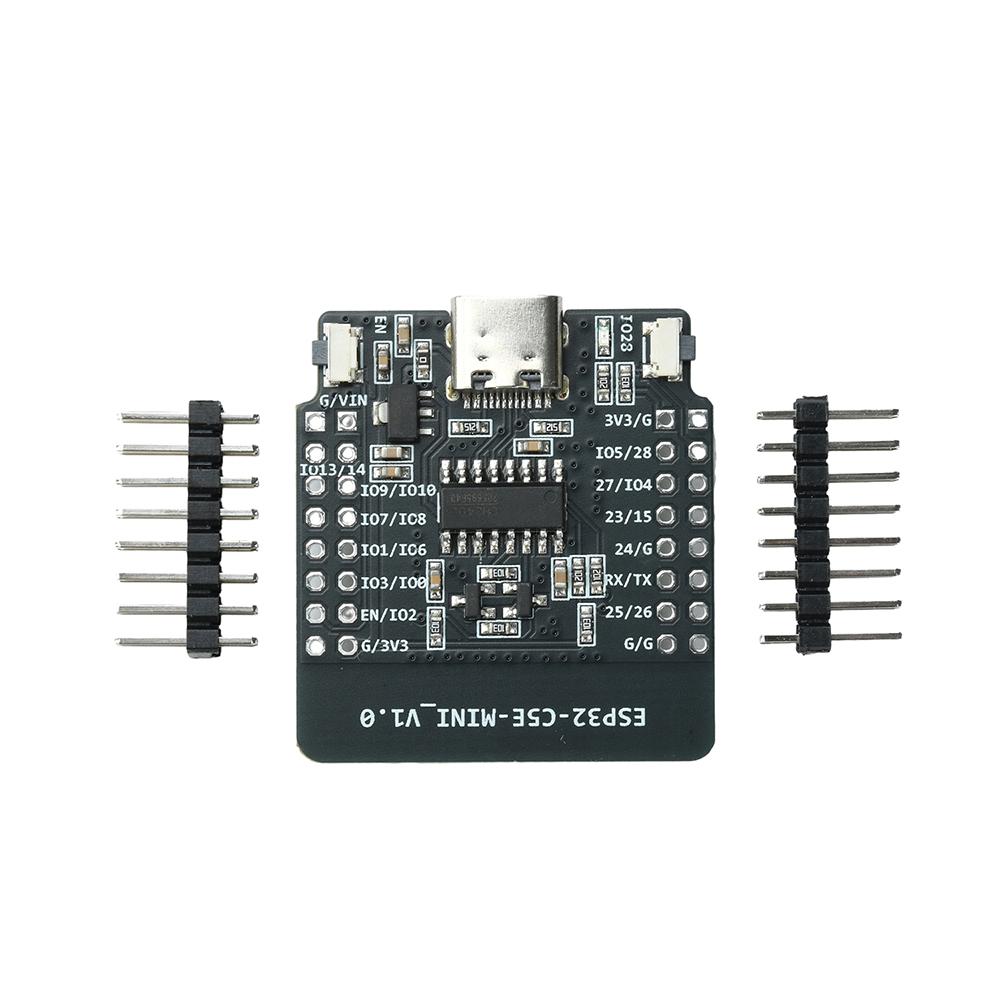

MINI ESP32 C5 N16R8 Core Board RISC V High Speed Wireless Transmission Bluetooth Industrial IoT Sensor Node Development Module

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : 3.0-3.6 V Type : Module Origin : Mainland China Condition : New Operating Temperature : -40-85C Feature 1 : Dual Band WiFi 6 Feature 2 : 2.4G 5G WiFi Feature 3 : Wide Temperature Range Feature 4 : High Speed Transmission Feature 5 : External Antenna Support Feature 6 : 16MB Flash 8MB PSRAM Feature 7 : 240MHz High Frequency Feature 8 : IoT Smart Home Module Feature 9 : Wireless Sensor Node Feature 10 : Prototype Development Board

Product Features: 1. Dual band WiFi 6 high-speed networking, compatible with 802.11ax/b/g/n, with a maximum transmission rate of 150Mbps. 2. Multi protocol wireless integration, suitable for smart home gateway development. 3. RISC-V high-performance core, supporting clock frequencies up to 240 MHz, with strong computational processing capabilities. 4. Supporting 2Mbps helps build IoT devices with wider coverage and stronger RF performance. 5. Industrial grade wide temperature stable operation, suitable for industrial and outdoor IoT projects.

Product Introduction ESP32-C5-N16R8 MINI is a high-performance IoT development core board, equipped with ESP32-C5 chip, supporting 2.4G/5GHz dual band WiFi6, adopting RISC-V single core architecture, with a maximum clock frequency of 240MHz, memory configuration of 16MB Flash+8MB PSRAM, strong RF performance, balancing high-speed transmission and long-distance communication. MINI is a compact version suitable for rapid prototyping and product solution verification. It also supports a 2 Mbps PHY to improve transmission speed and data throughput, helping to build IoT devices with wider coverage and stronger RF performance.

Product Parameters: Built in ESP32-C5 chip, RISC-V 32-bit single core processor, supporting clock frequencies up to 240 MHz • ROM：320 KB • HP SRAM：384 KB • LP SRAM：16 KB • Flash:16 MB(Quad SPI) • PSRAM:8 MB(Quad SPI) Wi-Fi： Working in the 2.4&5 GHz dual band, 1T1R • Working channel center frequency range: 2412~2484 MHz, 5160~5885 MHz • Compatible with IEEE 802.11ax protocol Fully compatible with IEEE 802.11b/g/n protocol: -Supports bandwidth of 20 MHz and 40 MHz -Data rate up to 150 Mbps -Wireless Multimedia (WMM) -Frame Aggregation (TX/RX A-MPDU, TX/RX A-MSDU) -Immediate Block ACK Bluetooth: • Bluetooth LE: Bluetooth 6.0 • Bluetooth mesh 1.1 High power mode (20 dBm transmission power) Working conditions: • Working voltage/supply voltage: 3.0~3.6 V • Working environment temperature: -40~85 ℃ Product size: 36.5mm * 33mm Application scenarios: smart gateway, smart home control, wireless sensors, IoT nodes, multi protocol bridging devices, product prototype development, etc.

Product List: 1X development board 2X needle arrangement label:yes
