6 8.2GHz VRX 8200 Video Receiver 128Ch Auto Scan OLED Screen 95dBm Sensitivity Dual Antenna Wireless Video Transceiver

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : DC 7-24V Type : Module Origin : Mainland China Condition : New Operating Temperature : -10-65C Feature 1 : VRX-8200 Receiver Feature 2 : 6-8.2GHz FPV Receiver Feature 3 : 128Ch FPV Receiver Feature 4 : Dual Antenna Feature 5 : High Sensitivity Feature 6 : OLED Display VRX Feature 7 : FM PLL Demodulation Receiver Feature 8 : Long Range FPV Drone VRX Feature 9 : 7-24V DC FPV Receiver Feature 10 : Analog Image Transmission Receiver

Product Features: 1. Wide band coverage, 6-8.2GHz ultra wide receiving range, 128 receiving channels compatible with multiple scenarios 2. High sensitivity reception, -95dBm reception sensitivity, stable signal reception over long distances without disconnection 3. Support automatic search in multiple frequency bands, with real-time display of channel status on OLED screens, making debugging more convenient 4. Dual antenna design, FM/PLL demodulation method, stable signal, clear image quality 5. Wide range of application scenarios: suitable for wireless video transmission, FPV aerial photography, security monitoring and other scenarios

Product Parameters: Product Name: Video Receiver Product Model: VRX-8200 Receiving channel: 128 channels, 2 frequency bands Output interface: 2.5mm diameter socket Supply voltage: DC 7-24V Working current: 210mA Max Working environment: -10~+65 ° C, 85% RH Storage temperature: -30~+85 ° C Application scenarios: wireless video transmission, FPV aerial photography, security monitoring, etc

Radio frequency (RF): Receiving frequency range: 6110-8210MHz Input standing wave ratio: 2:1 Demodulation method: FM/PLL Intermediate frequency IF: 480MHz Receiver sensitivity: -95dBm

Description: VRX-8200 is a professional video receiver in the 6-8.2GHz frequency band, supporting multi band automatic search and equipped with OLED display screen. It is widely used in wireless video transmission, FPV aerial photography, security monitoring and other fields.

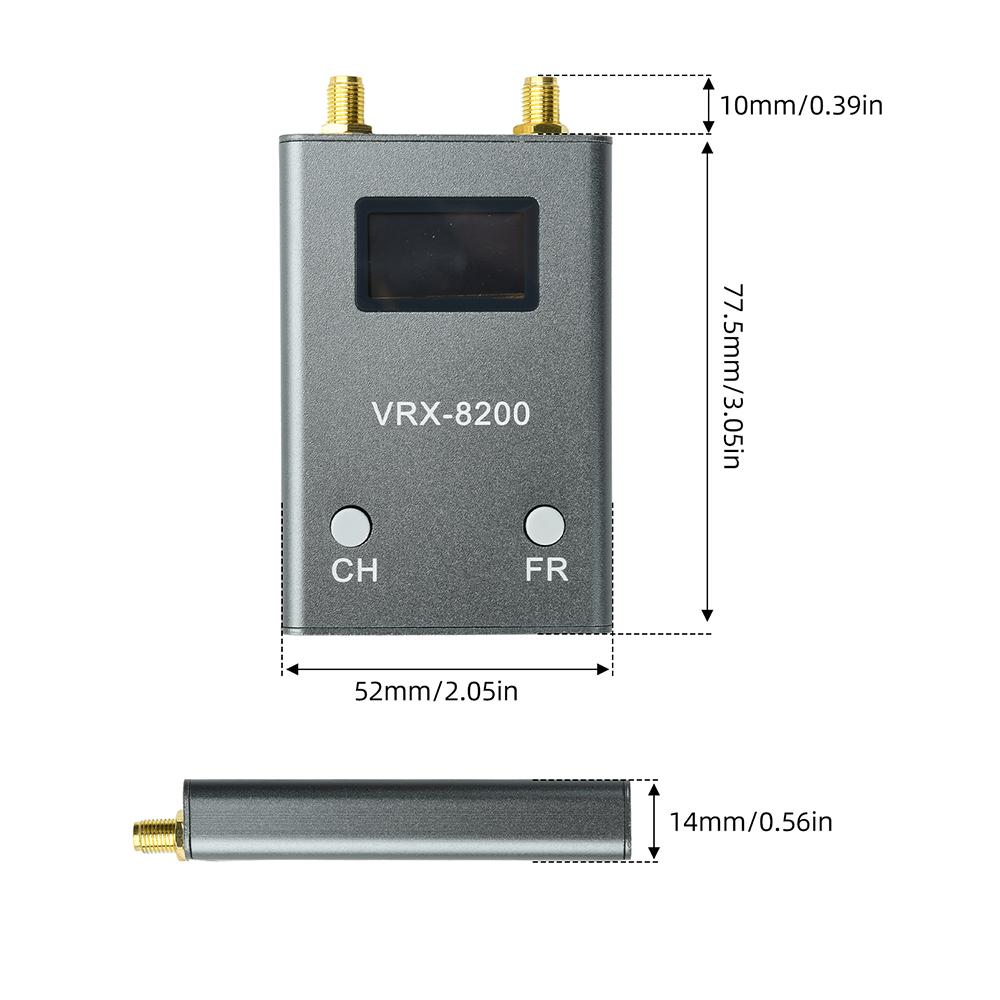

Button usage instructions: Frequency band button (FR): Short press: Adjust the current frequency band, cycle through A-B-E-F-R-U-O to switch, and the OLED screen displays the current frequency band Long press for 2 seconds: Enter automatic search mode, OLED screen displays the channel being searched, and automatically locks the strongest signal channel after the search is completed Channel button (CH): Short press: Adjust the current channel, CH1-CH8 cycle switching, OLED screen displays specific channel values Long press: Switch between A-band module and B-band module, the OLED screen displays the specific module number

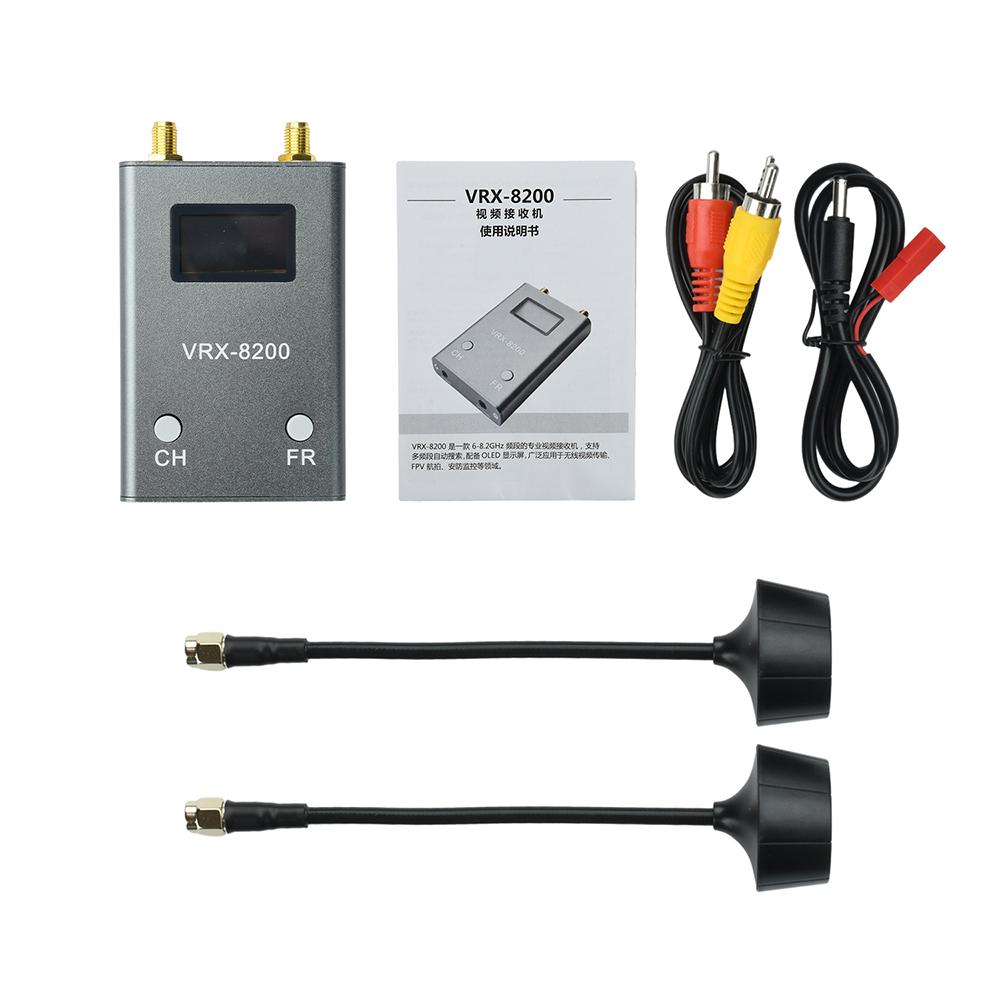

Shipping List: Host x1 Power cord x1 AVline x1 Antenna x2 label:yes
