Quantity : 1
High-concerned chemical : none
Package : SOP
is_d : Yes
Dissipation Power : 200W/400W/600W
Supply Voltage : DC 12-42V 19-51V 12-30V
Application : Speaker
Type : Module
Origin : Mainland China
Condition : New
Operating Temperature : 0-50C
Bluetooth Amplifier Board : TPA3223/TPA3255 Amplifier Module
TWS Wireless Stereo Amplifier : HiFi Stereo Amplifier with Bass Treble Control
Lossless Audio Amplifier USB Bluetooth AUX : DIY Home Theater Amplifier Module
Party Speaker Amplifier Board : TWS True Wireless Pairing Amplifier

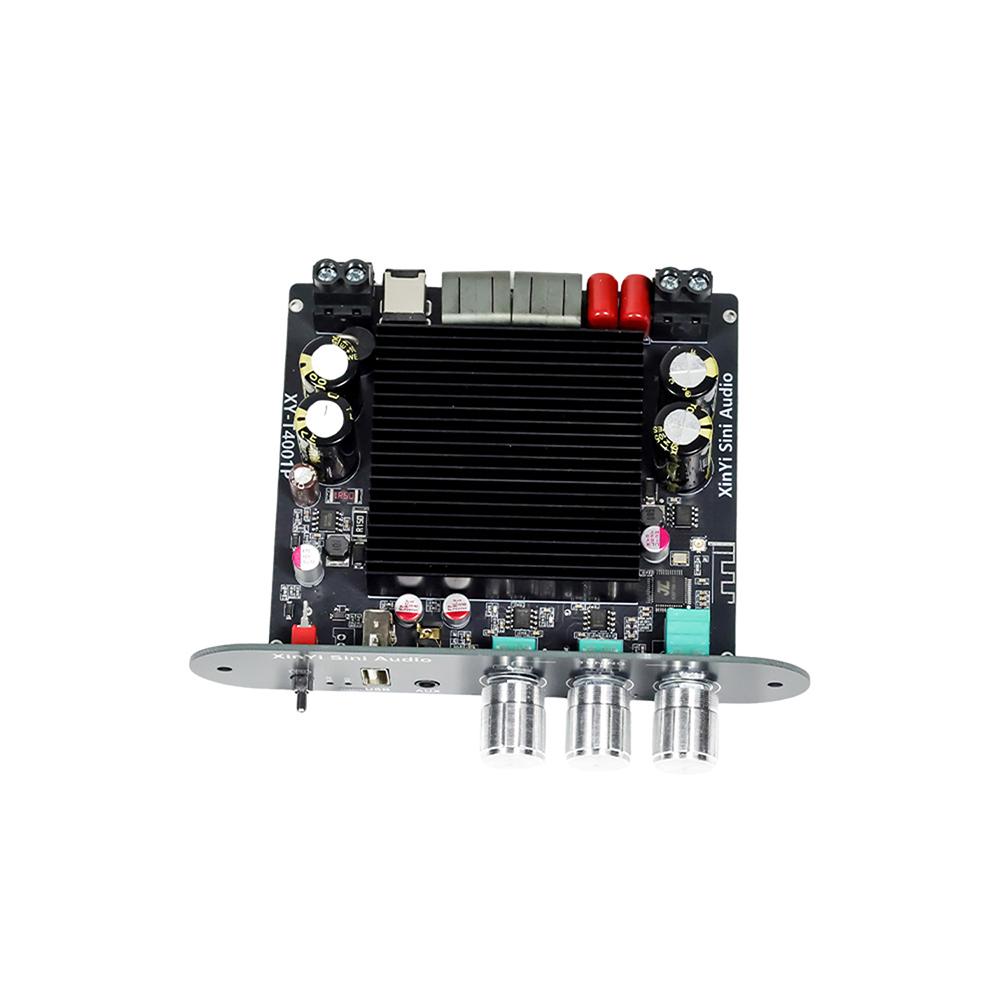

Type 1：XY-T4001P（Integrated potentiometer）
Type 2：XY-T4001P（Integrated with shell）
Type 3：XY-T4001P（External Potentiometer）
1. Using TPA3223 chip: efficient and low heat, high power output, pure sound quality without heating.
2. TWS true wireless box: supports dual machine interconnection, forming a stereo system with one click.
3. Independent adjustment of high and low frequencies: Multi function knob for free control of sound quality.
4. Multi decoding lossless support: Bluetooth AAC/SBC+USB lossless format playback.
5. Widely applicable: Suitable for home theaters, party speakers, DIY and other scenarios.
Product Parameters:
Product Name: TWS Bluetooth Digital Audio Amplifier Board
Product Model: XY-T4001P
Power supply: DC 12-42V/5A
Audio input: Bluetooth/AUX/USB
Bluetooth audio decoding: SBC AAC
USB lossless decoding: WAV FLAC APE MP3
Power supply and power output:
① 12V:Output power: 8 Ω @ 10W; 4 Ω @ 20W; 4 Ω @ 30W
② 24V:Output power: 8 Ω @ 30W; 4 Ω @ 70W; 2 Ω @ 150W
③ 36V:Output power: 8 Ω @ 80W; 4 Ω @ 160W; 2 Ω @ 350W
④ 42V:Output power: 8 Ω @ 100W; 4 Ω @ 200W; 2 Ω @ 400W

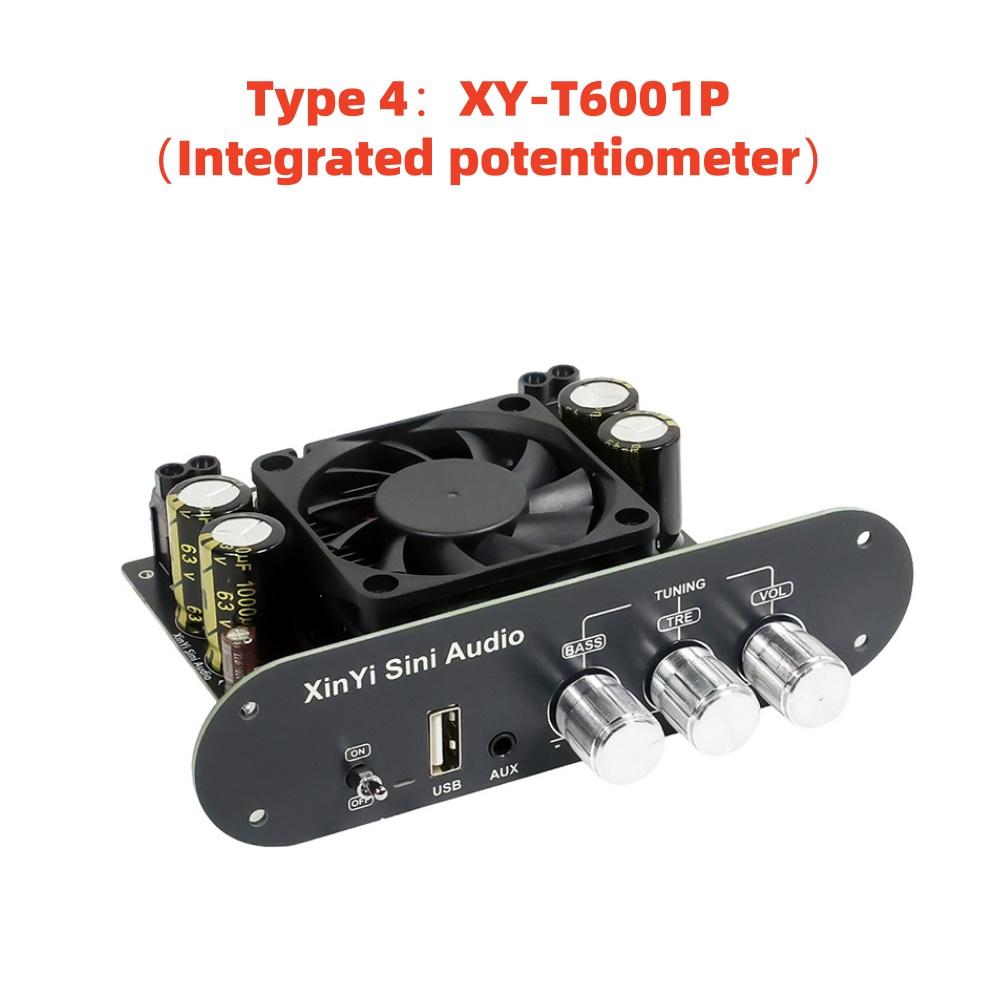

Type 4：XY-T6001P（Integrated potentiometer）
Type 5：XY-T6001P（External Potentiometer）
Type 6：XY-T6001P（Integrated with shell）
1. Using TPA3255 chip, 600W peak power, driving strong and stable
2. Supports TWS true wireless stereo pairing, Bluetooth 5.0+ACC/SBC dual decoding
3. Using dedicated digital inductors and aluminum heat sinks for stable performance
4. Multi source input, supporting Bluetooth/AUX/USB audio input
5. Suitable for home Hi Fi, outdoor stage, car audio or DIY amplifier projects
Product Parameters:
Product Name: TWS Bluetooth Digital Audio Amplifier Board
Product Model: XY-T6001P
Power supply: DC 19-51V/10A
Audio input: Bluetooth/AUX/USB
Bluetooth audio decoding: SBC/AAC
USB lossless decoding: WAV/FLAC/APE/MP3
Power supply and power output:
①24V:Output power: 8 Ω @ 30W; 4 Ω @ 70W; 2 Ω @ 150W
②36V:Output power: 8 Ω @ 80W; 4 Ω @ 160W; 2 Ω @ 350W
③50V:Output power: 8 Ω @ 160W; 4 Ω @ 300W; 2 Ω @ 600W

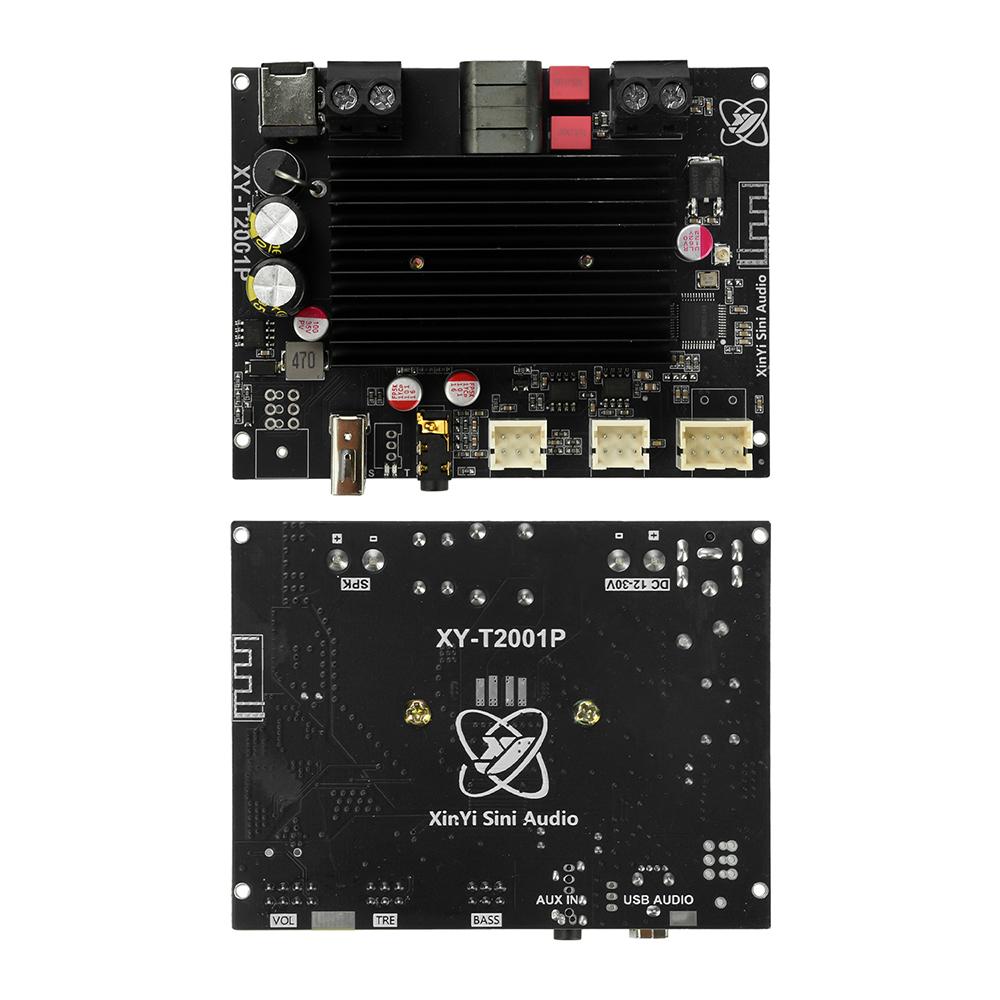

Type 7: XY-T2001P（Integrated potentiometer）
Type 8: XY-T2001P（Integrated with shell）

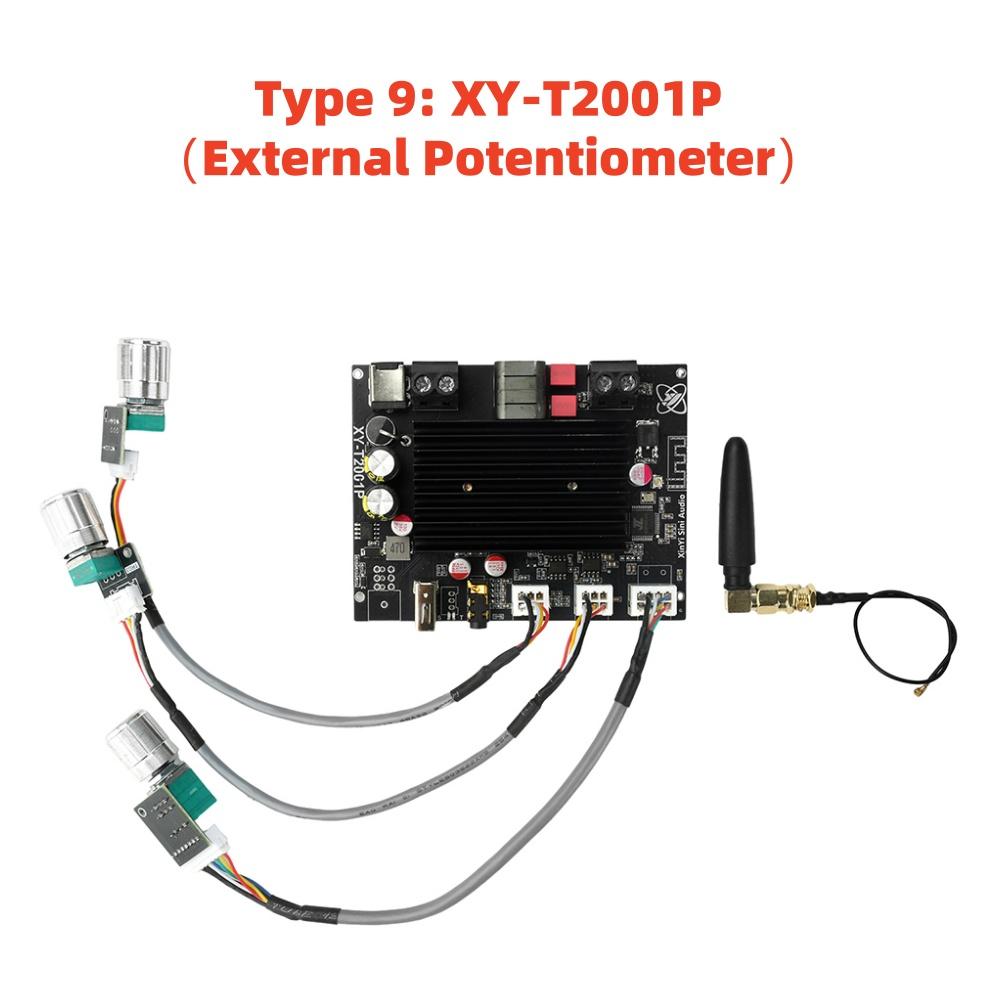

Type 9: XY-T2001P（External Potentiometer）
1. Support TWS box interconnection to form a stereo system.
2. Adopting the original imported TPA3221 chip with high fidelity amplification.
3. Multiple audio input methods, fully compatible with Bluetooth/AUX/U drives.
4. Independent adjustment of high and low frequencies, with distinct levels of sound quality.
5. Suitable for home theaters, outdoor performances, and other settings.
Product Parameters:
Product Name: TWS Bluetooth Digital Audio Amplifier Board
Product Model: XY-T2001P
Power supply: DC12-30V/3A
Audio input: Bluetooth/AUX/USB
Bluetooth audio decoding: SBC/AAC
USB lossless decoding: WAV/FLAC/APE/MP3
Power supply and power output:
①12V:Output power: 4 Ω @ 20W; 8 Ω @ 10W
②24V:Output power: 4 Ω @ 70W; 8 Ω @ 35W
③30V:Output power: 8 Ω @ 35W; 4 Ω @ 100W; 2 Ω @ 200W
TWS Box Operation Instructions
This product can seamlessly blend dual channels into single channels; Simultaneously supporting two amplifier boards to pair through TWS, forming a stereo system TWS box to form stereo sound, and two amplifier boards to form a stereo box through TWS technology.
TWS box connection:
1. Two power amplifier boards are powered on, and the blue indicator light flashes rapidly (do not pair with Bluetooth on your phone/do not connect AUX/do not plug in USB flash drive).
2. Press the volume knob of one of the amplifier boards for 4 consecutive times, and the TWS red indicator light will start flashing rapidly (the other one will keep the blue indicator light flashing rapidly).
3. Wait for the TWS red indicator light to change from fast flashing to long on (host), and the other blue indicator light to turn off and the red indicator light to start flashing slowly (slave), indicating that the TWS has been successfully connected; If the red indicator light goes out, it means the connection has failed. You can press the volume knob again 4 times to connect to TWS.
4. After successful TWS connection, open your phone's Bluetooth to search for XinYi and connect, and your phone will play music; Or insert an AUX or USB drive to play music.
Cancel TWS box function
During the TWS box connection process, press the volume knob of any amplifier board four times in a row to exit the TWS boxconnection mode.
Note:
1.When using the TWS box function, it is necessary to first connect the TWS box and then pair it with the phone's Bluetooth.
2. The TWS box function is in memory mode, and it will automatically connect to the box the next time it is turned on.
1X power amplifier board
1X screwdriver
Type 1：XY-T4001P（Integrated potentiometer）
Type 2：XY-T4001P（Integrated with shell）
Type 3：XY-T4001P（External Potentiometer）
Type 4：XY-T6001P（Integrated potentiometer）
Type 5：XY-T6001P（External Potentiometer）
Type 6：XY-T6001P（Integrated with shell）
Type 7: XY-T2001P（Integrated potentiometer）
Type 8: XY-T2001P（Integrated with shell）
Type 9: XY-T2001P（External Potentiometer）
label:yes
