DC5V/3.7V TWS Digital Stereo Audio Power Amplifier Board Bluetooth-compatible 10W+10W 2Channel

Quantity : 1 High-concerned chemical : none Package : TQFP is_d : Yes Supply Voltage : As Description Application : MP3/MP4 Player Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New Operating Temperature : As Description Condition : New Type : Stereo Audio Amplifier Board Key Word : Amplifier Board Dropship : Support

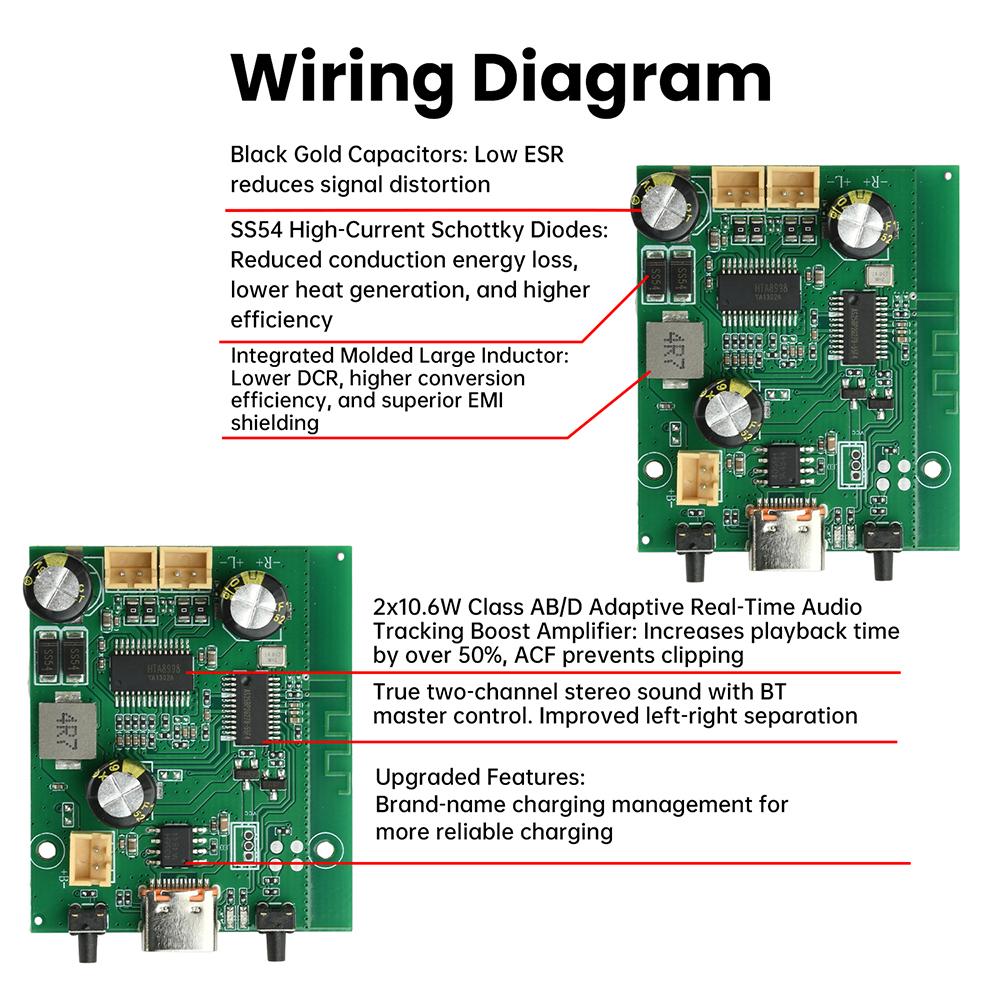

DC5V/3.7V TWS Digital Stereo Audio Power Amplifier Board Bluetooth-compatible 10W+10W 2Channel Features: 1. Supports dual power supplies: 3.7V battery and DC5V, offering flexible adaptability in various scenarios. 2. Bluetooth 5.1 wireless connection for stable stereo audio signal transmission. 3. Output power reaches 2 x 10W, optimized for sound quality with 4Ω speakers. 4. Built-in EQ and DRC compression, supporting computer-tuned sound and saving. 5. Integrated charging management and protection functions for safe and reliable protection against over-temperature and over-current.

Product Parameters: Chip Type: Stereo Number of Channels: 2 Audio Input: Wireless Bluetooth/Wired Sound Card Power Supply: 3.7V Battery/DC5V (Note: Voltage does not exceed 5V) Bluetooth Version: 5.1 Bluetooth Name: LF02 Output Power: 2 x 10W Output Impedance: 4Ω Protection Mechanism: Over-temperature and Over-current Main Board Dimensions: 39mm x 46mm

Product Contents: 1 x Module 2 x Speaker Cables

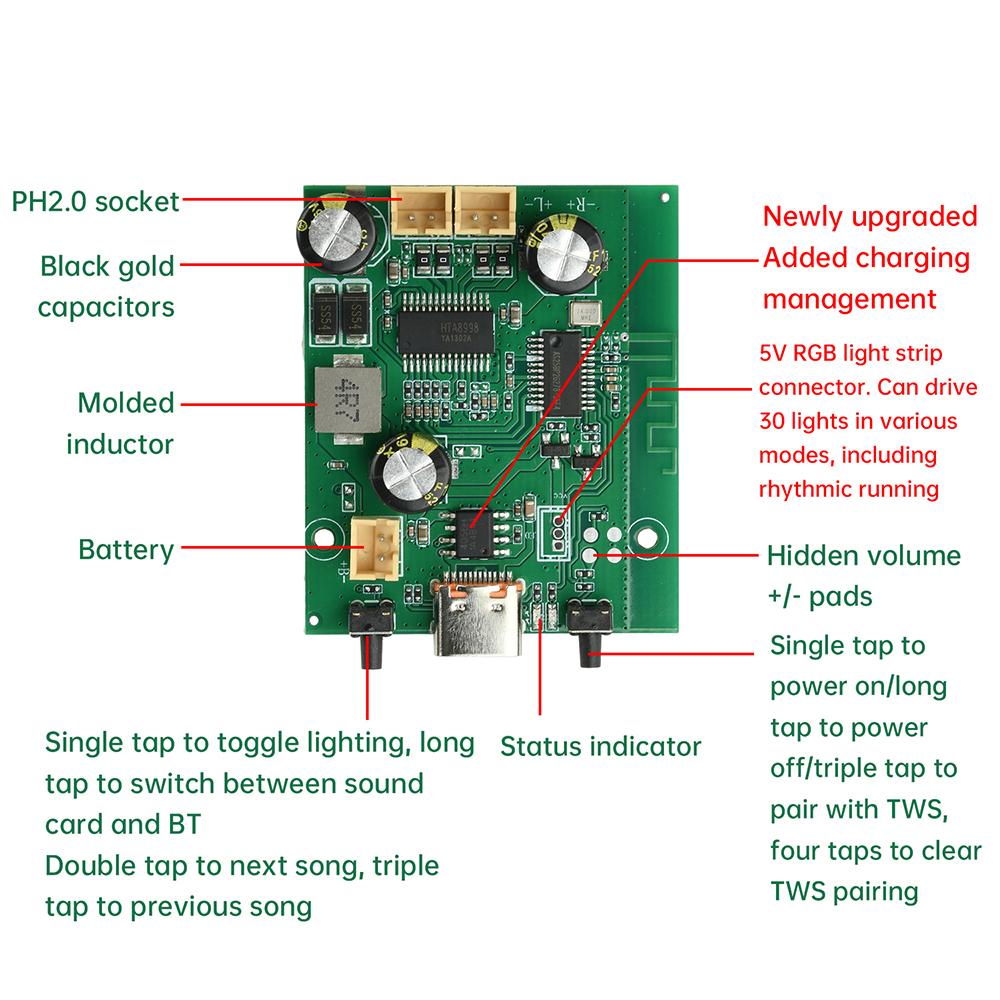

Note: Be sure to use a 3.7V battery with a current rating of 5A or higher and a protective board. Otherwise, the battery will trip at maximum volume. When using a 5V3A power supply without batteries, the volume cannot exceed 50% when powered by a wired connection, otherwise it will restart. It is compatible with 4Q speakers (2Q speakers cannot be used). The amplifier's signal-to-noise ratio is 67, which means the volume is very low. You will hear white noise when your ear is about 10 cm from the speaker. Please do not take pictures if this is a concern. The tuning software does not support Windows 7 or earlier. It supports 30 5V RGB expansion, hidden volume increase and decrease pads, battery charging, and single-cell battery power. It supports computer-based tuning and save EQ, 10-band EQ gain, and DRC dynamic compression. label:yes
