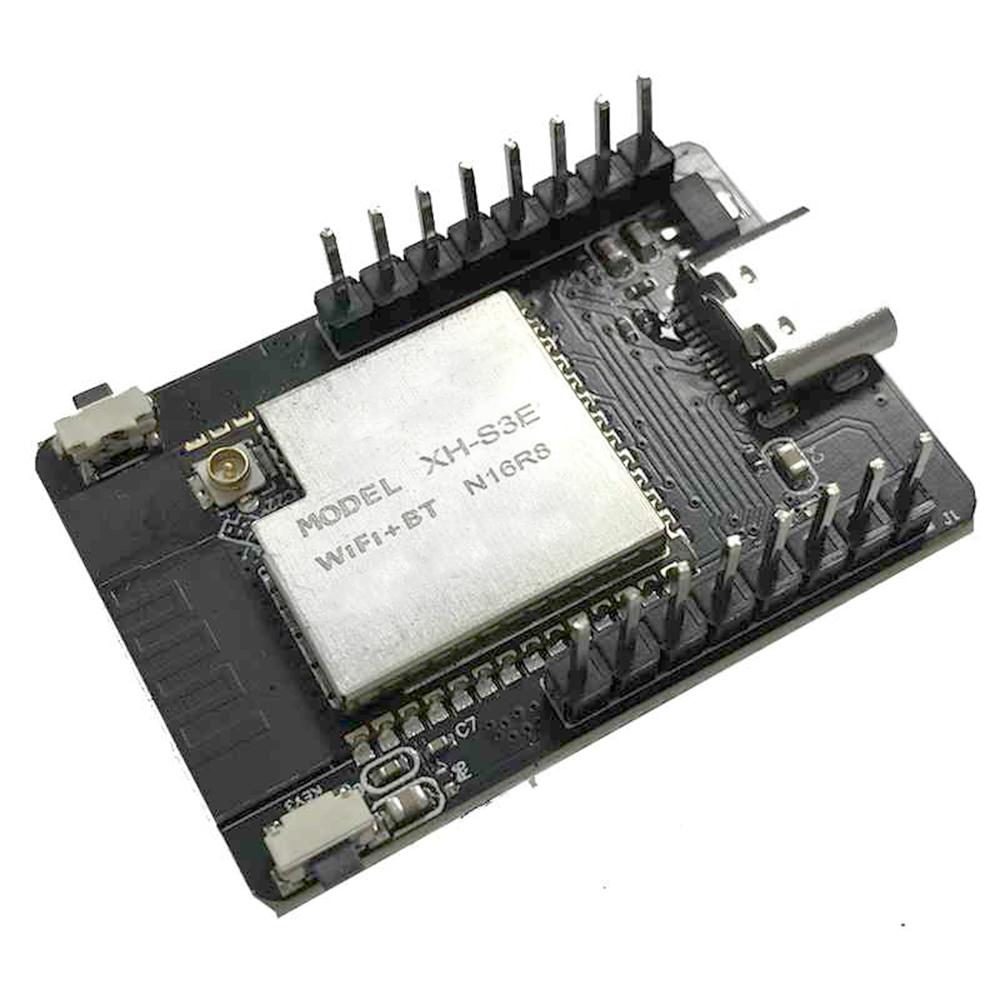

ESP32-S3-CAM WiFi+Bluetooth Internet Of Things Dual Type-C Development Board ESP 32 Core Board Ov2640 Camera N16R8 Version

Quantity : 1 High-concerned chemical : none is_d : Yes Supply Voltage : As Description Type : Module Brand Name : Gaqqee Origin : Mainland China Condition : New Condition : New Type : ESP32-S3-CAM Key Word : ESP32-S3-CAM Module Dropship : Support

ESP32-S3-CAM WiFi+Bluetooth Internet Of Things Dual Type-C Development Board ESP 32 Core Board Ov2640 Camera N16R8 Version

Feature: 1. Low power consumption and high performance: ESP32-S3 chip, dual-core 32-bit LX7 processor, up to 240MHz frequency, low power design. 2. Rich wireless connection: support WiFi and Bluetooth 5.0, data rate up to 150Mbps. 3. Large capacity storage: built-in storage, support up to 16MB external PSRAM. 4. Support low power mode: support multiple low power working states, fine clock gating, optimize power consumption. 5. Convenient development experience: can realize automatic download mode, FLASH download mode.

Performance introduction: Processor: ESP32-S3 series chips use Xtensa® dual-core 32-bit LX7 microprocessor, with a maximum clock frequency of up to 240 MHz‌1. ‌Storage‌: Integrated 384KB ROM, 512KB SRAM and 16KB RTC SRAM, supports up to 16MB external PSRAM Wi-Fi‌: Supports 802.11 b/g/n protocol in 2.4 GHz band, with data rate up to 150 Mbps‌1. ‌Bluetooth‌: Supports low-power Bluetooth (Bluetooth LE) 5.0, supports multiple rates (125Kbps, 500Kbps, 1Mbps, 2Mbps)‌1. Supply voltage: DC 3.3V; Wi-Fi module IO maximum output current: 12mA; Wi-Fi module RST pin low level is valid; External interface: Wi-Fi module RXD connects to external MCU TXD, Wi-Fi module TXD connects to external MCU RXD; Automatic download mode: Connect the module's EN and GPIO pins to the DTR and RTS of the serial port chip to achieve software automatic download mode. The module enters the FLASH download mode: IOO is at a low level, then the module is reset and powered on; the Wi-Fi module enters the normal working mode: IOO is at a high level, and the module is reset and powered on. Size: 40mm*27mm

Note: The product has a built-in program, please do not re-burn the firmware! If the firmware is re-burned, it will cause the connection to our APP to fail. The development board module uses the ESP32-S3 chip, which is fully compatible with the ESP-S3-WROOM-1 series module, and the default N16R8 version.

Product list: 1X development board 2X pin headers (optional if the pin headers are not soldered or soldered) 1X camera Picture
