ESP32-CAM WiFi Module 2.4G Antenna ESP32 Serial to WiFi ESP32 CAM Development Board 5V Bluetooth with OV3660 DIY Camera Module

Quantity : 1 High-concerned chemical : none Package : TQFP is_d : Yes Supply Voltage : As Description Application : TV Type : Module Brand Name : DIY NOW Operating Temperature : As Description Origin : Mainland China Condition : New Condition : New Type : ESP32-CAM WiFi Module Key Word : ESP32 Dropship : Support

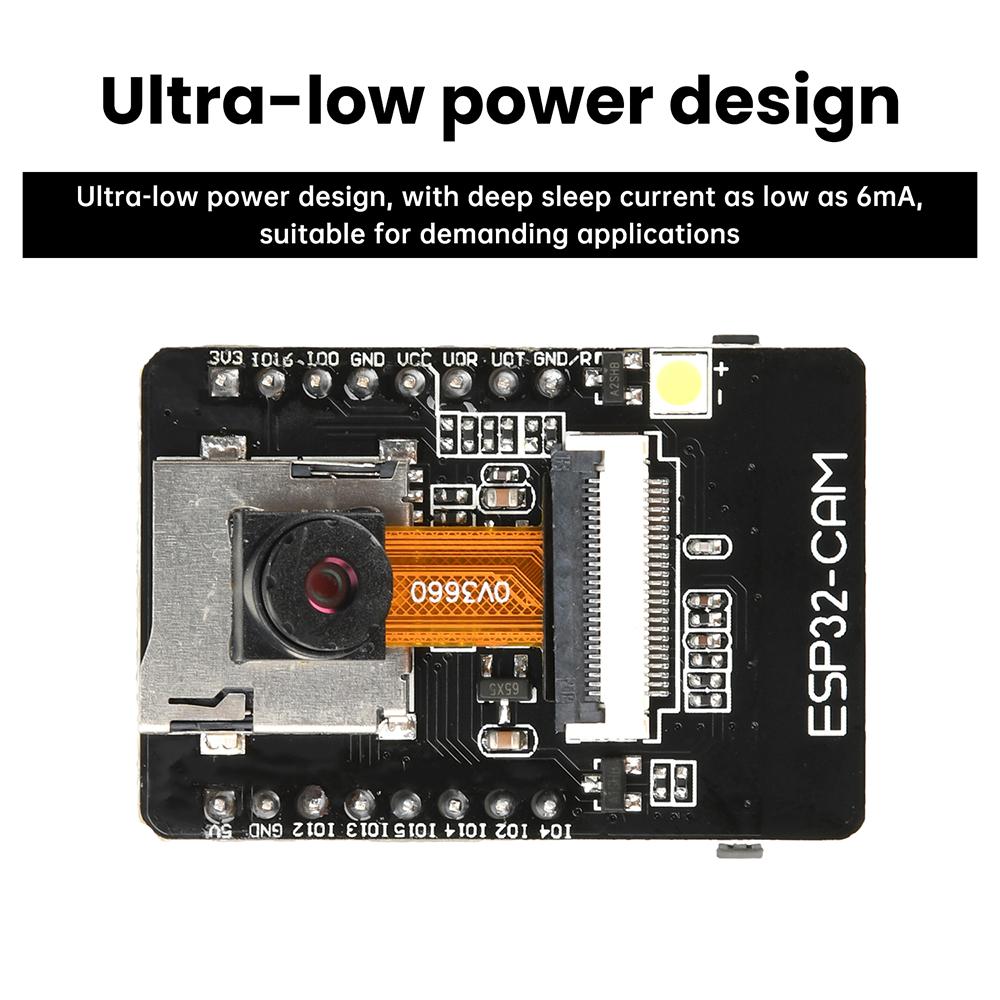

ESP32-CAM WiFi Module 2.4G Antenna ESP32 Serial to WiFi ESP32 CAM Development Board 5V Bluetooth with OV3660 DIY Camera Module Features: 1. Small-sized camera module with standalone operation, suitable for various IoT devices. 2. Based on ESP32 design, it supports WiFi and Bluetooth dual-mode, delivering stable and efficient performance. 3. Ultra-low power design, with deep sleep current as low as 6mA, suitable for demanding applications. 4. Supports secondary development, easy to use, and widely applicable to IoT hardware devices. 5. Widely applicable, suitable for various scenarios such as monitoring, identification, and positioning.

Product Specifications: Core: Xtensa dual-core 32-bit LX7 CPU with a maximum frequency of 240MHz Operating Voltage: 4.75-5.25V, 5V recommended SPI Flash: Default 32MB RAM: Internal 520KB + External 4MB PSRAM Wi-Fi: 802.11b/g/n/e/i Bluetooth: Bluetooth 4.2BR/EDR and BLE Supported Interfaces (2Mbps): UART, SPI, I2C, PWM TF Card Support: Up to 4G IO Ports: 9 Serial Port Rate: Default 115200bps Spectrum Range: 2400 to 2483.5 MHz Antenna Type: Integrated PCB, 2dBi Gain Transmit Power: 802.11b: 17 ± 2dBm (@ 11Mbps) 802.11g: 14 ± 2dBm (@ 54Mbps) 802.11n: 13 ± 2dBm (@ MCS7) Receiver Sensitivity: CCK, 1Mbps: -90dBm CCK, 11Mbps: -85dBm 6Mbps (1/2BPSK): -88dBm 54Mbps (3/464-QAM): -70dBm MCS7 (65Mbps, 72.2Mbps): -67dBm Operating Temperature: -20°C to 70°C Storage Environment: -40°C to 125°C, <90% RH

OV3660 Camera Core Parameters: Resolution: 3MP (2048×1536) Optical Dimensions: 1/5-inch Interface Type: SCCB (Serial Camera Control Bus) Frame Rate: Up to 15 fps Power Supply: Core Voltage 1.5V

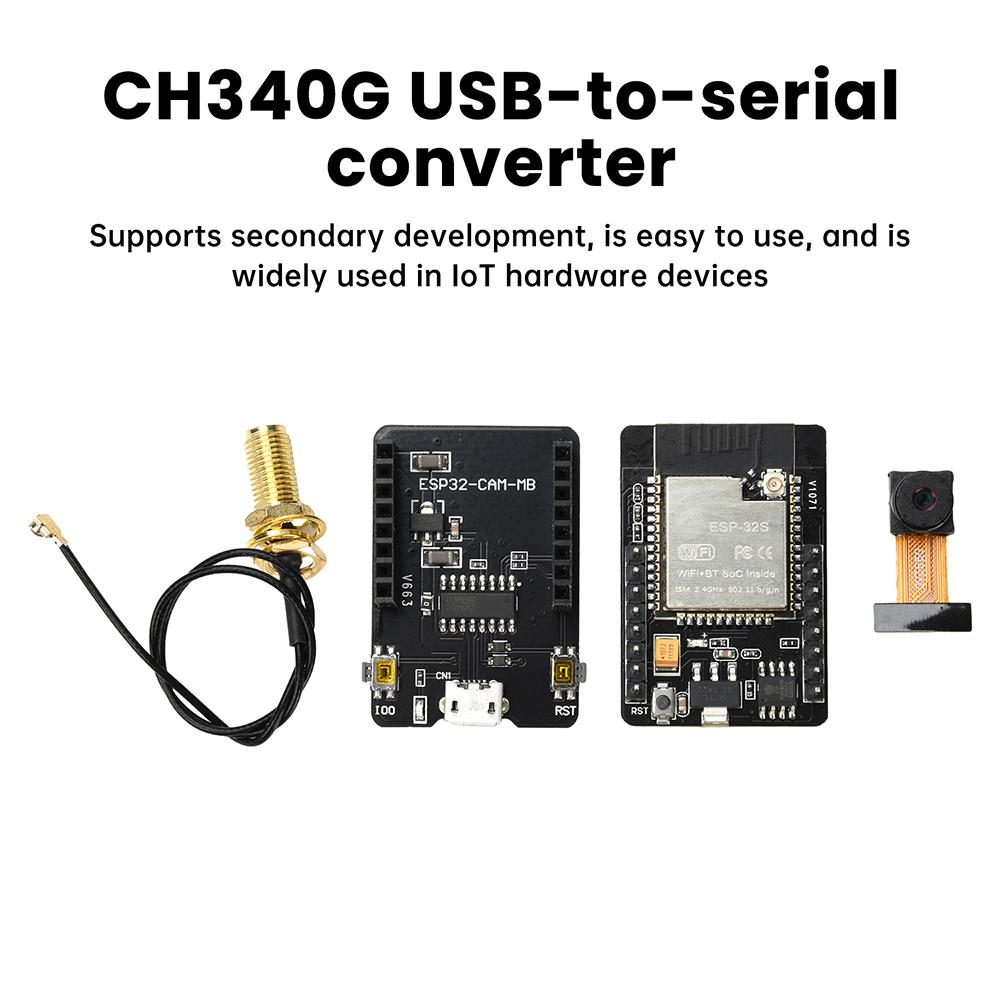

Shipping Items: Kit 1: Development Board x1 Programming Socket x1 Camera x1

Kit 2: Development Board x1 Programming Socket x1 Camera x1 2.4G Antenna Rod x1 IPX Adapter Cable x1 label:yes

Camera resolution: 1920×1080
