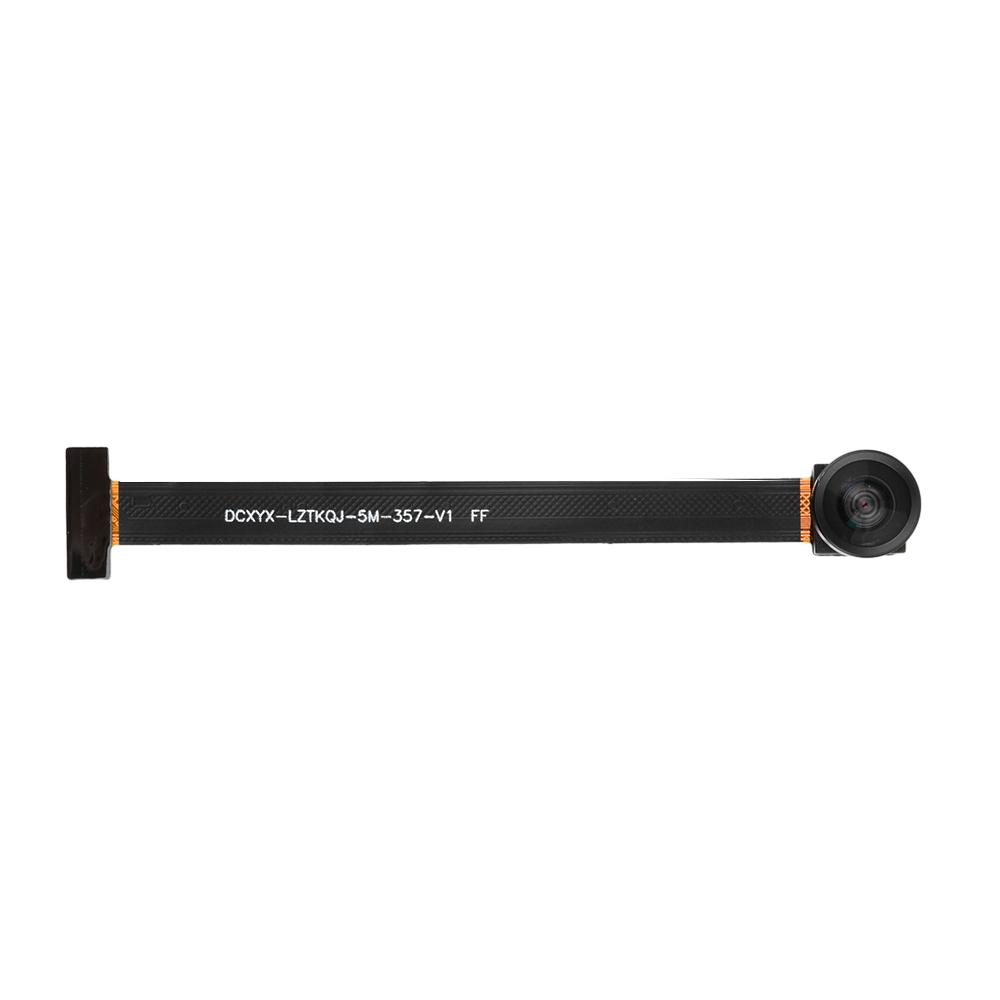

8MM OV5640 Camera Module 68 72 120 160 Degree Auto Focus AF 5 Million Pixels 24PIN DVP MIP I Interface Electronic Compoent Kit

Quantity : 1 High-concerned chemical : none Package : TQFP is_d : Yes Dissipation Power : As Description Supply Voltage : As Description Application : Camera Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New Operating Temperature : As Description Condition : New Type : OV5640 Camera Module Key Word : OV5640 Module Droipship : Support

8MM OV5640 Camera Module 68 72 120 160 Degree Auto Focus AF 5 Million Pixels 24PIN DVP MIP I Interface Electronic Compoent Kit

Feature

1. The module is small and exquisite, easy to install and use 2. Automatic image control function: automatic white balance, automatic band filter, automatic 50/60HZ brightness detection, automatic black level calibration 3. Image quality control: color saturation, hue, gamma, sharpness (edge enhancement), lens correction, defective pixel elimination and noise elimination 4. Support video or snapshot operation 5. Support LED and flash strobe mode 6. Support 5 million pixels and any size reduced from 5 million pixels, support embedded autofocus control

Product Product parameters: Sensor size: 1/4 inch Pixels: 5 million Chip model: OV5640 Product size length: 78mm Pixels: 2592*1944 (15fps) Interface voltage: DC1.8V/2.8V Interface: DVP Viewing angle (diagonal): 68° lens/72° autofocus lens/120° autofocus lens/120° distortion-free lens/120° wide-angle lens/160° wide-angle lens (optional) Output format: YUV Sensitivity: 60dB/mW Pacakge list Camera module*1 label:yes
