Type-C ESP32-DevKit-32E Board 2.4 GHz Wifi Bluetooth-compatible Dual Core Development Module With Built-In ESP 32 V3 Chip 4MB

Quantity : 2 High-concerned chemical : none Package : TQFP is_d : Yes Supply Voltage : As Description Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New Condition : New Type : ESP Board Key Word : ESP32 V3 Chip Dropship : Support

Type-C ESP32-DevKit-32E Board 2.4 GHz Wifi Bluetooth-compatible Dual Core Development Module With Built-In ESP 32 V3 Chip 4MB

Product features: 1. The product is beautifully designed, the welding place is designed to be flat, the welding place is flat and flawless, showing the exquisite craftsmanship, providing a stable and reliable solution for your project. 2. The original V3 generation chip, replacing the module, can effectively solve the problems of overheating and easy damage. 3. Built-in RC oscillator, supporting self-calibration. 4. Easy to use, using a more universal Type-C interface, supporting 4 system development environments. 5. The built-in FLASH size is 4MB, and the ESP32V3 generation chip integrates 2.4GHZWIFI+Bluetooth dual-core single-chip solution. Powerful chip, intelligent interconnection, and wide range of applications.

Performance parameters: Interface: Type-C Chip: ESP32 V3 chip Flash: 4MB 2.4 GHz WiFi+Bluetooth@+Low-power Bluetooth module Product size: 28.4x51.5mm Software support: Mixly, Mind+, Ard IDE, MicroPython Power supply: type-C power supply (default)/5V GND pin power supply/3V3GND pin power supply EN: Reset button BOOT: Press and hold the BOOT key, and press the EN key at the same time (do not release the BOOT key at this time to enter the "firmware download" mode and download the firmware through the serial port. Type-C interface: can be used as the power supply of the circuit board, used for burning port, input voltage 6-12V Power LED light: After the development board is powered on, this indicator will light up. 1/0: The pins are all led out to the pin header of the development board, and users can program the ESP32.

ESP32 V3 chip parameters: ●448 KB ROM, 520 KB SRAM, 16 KB RTC SRAM ● QSPI supports multiple flash/SRAM ● Built-in 8MHz oscillator ● Supports self-calibration ● Built-in RC oscillator, supports self-calibration ● Supports external 2MHz to 60MHz main crystal oscillator (if using Wi-Fi/Bluetooth function, currently only 40MHz crystal oscillator is supported) ● Supports external 32kHz crystal oscillator for RTC, supports self-calibration ● 2 timer groups, each group includes 2 64-bit general timers and 1 main system watchdog ● 1 RTC timer ● RTC watchdog ● 34 GPIO ports; 12-bit SARADC, up to 18 channels ●Ethernet MAC interface with dedicated DMA, supports IEEE1588 ●Two-wire automotive interface (TWAI®, compatible with ISO11898-1); IR (TX/RX)

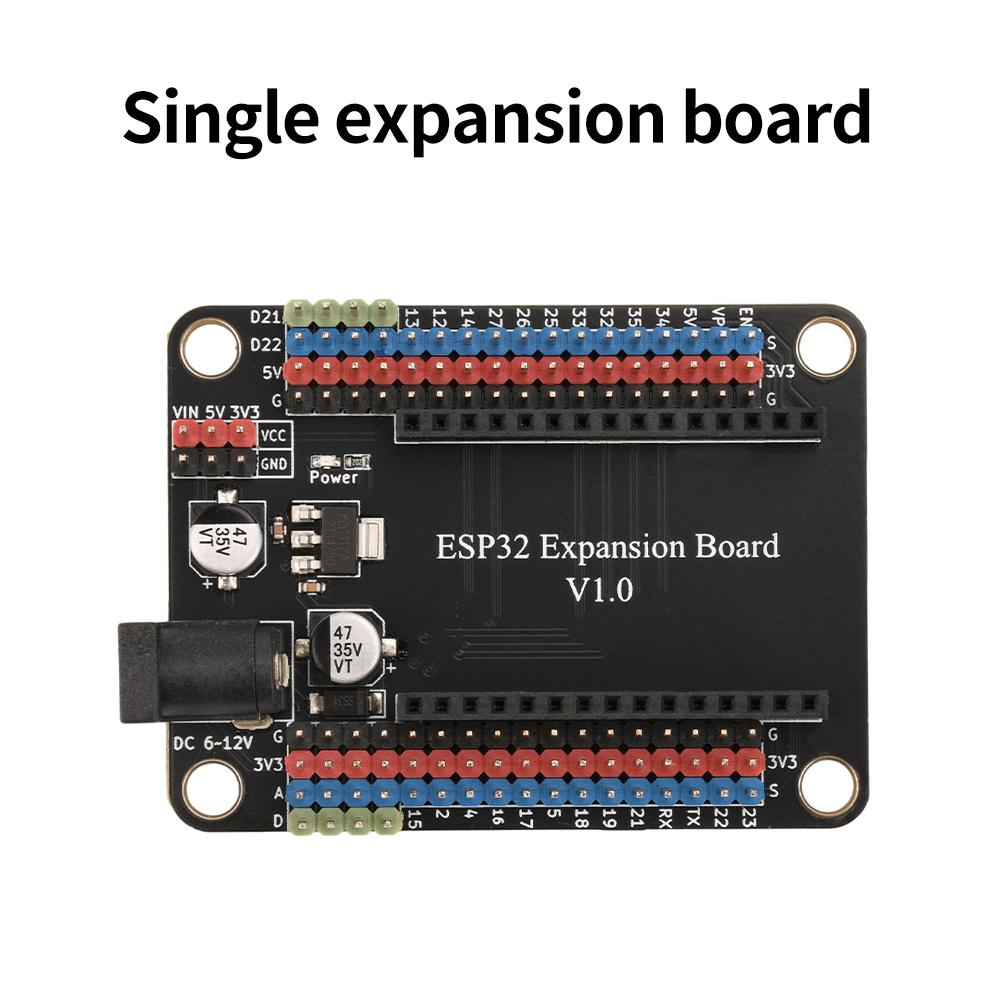

Expansion board parameters: Power interface: DC interface Voltage: 6-12V I0 port is fully led out Compatible with building blocks Onboard I2C interface Size: 64mm*48mm

Product list: Package 1: 1X development board 2X pin headers (welded pin headers/unwelded pin headers are optional)

Package 2: 1X expansion board (Note: the expansion board does not include the development board) label:yes
