DC12-16.8V to 220V Step UP Module 120W DC-AC Boost Inverter Module Inverse Converter Booster Module Power Regulator With Shell

Quantity : 1 High-concerned chemical : none Package : TQFP is_d : Yes Supply Voltage : As Description Type : Module Brand Name : DIY NOW Operating Temperature : As Description Origin : Mainland China Condition : New Condition : New Type : DC12-16.8V to 220V Step UP Module Key Word : Step UP Module Dropship : Support

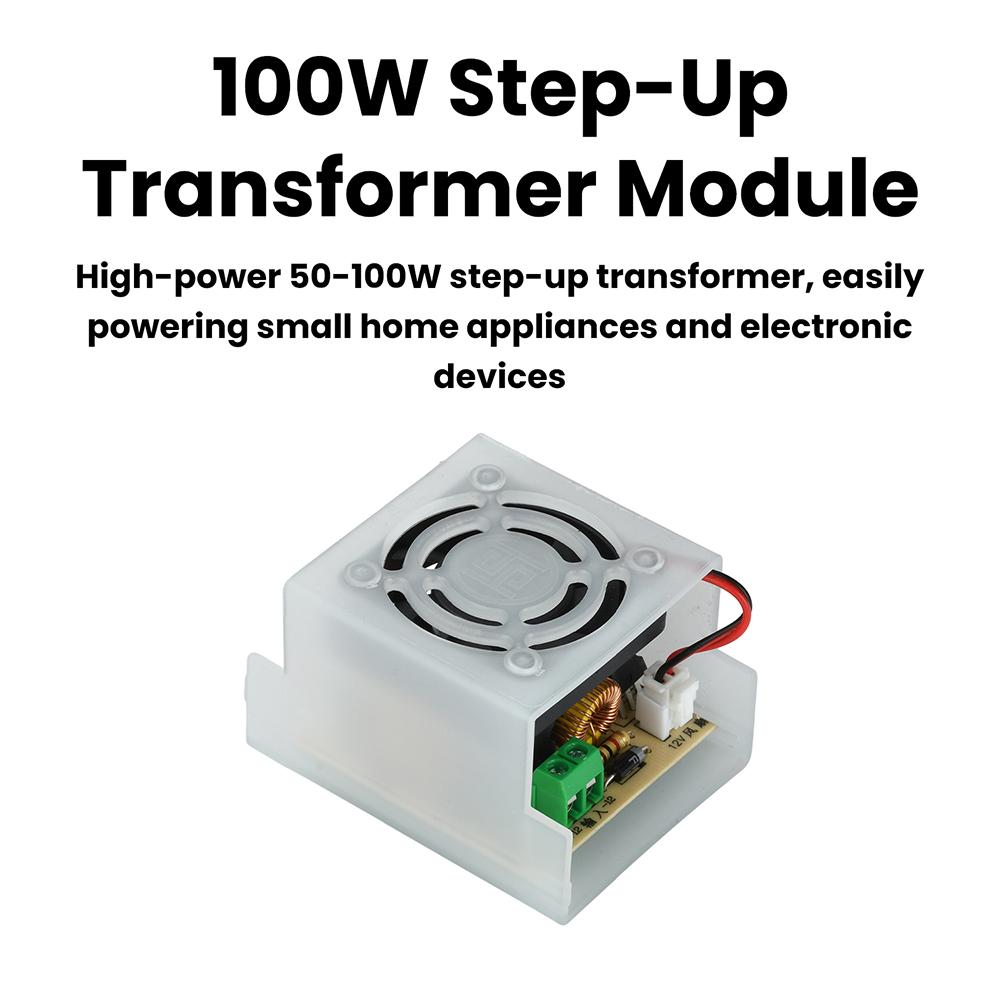

DC12-16.8V to 220V Step UP Module 120W DC-AC Boost Inverter Module Inverse Converter Booster Module Power Regulator With Shell Features: 1. Wide voltage input 12-16.8V, stable 220V output, compatible with various power sources 2. High power 50-100W boost, easily powers small home appliances and electronic devices 3. Insulated casing design for safer use, ideal for outdoor applications 4. Widely compatible with LED lights, mobile phone chargers, routers, and other daily electrical equipment 5. Built-in efficient heat dissipation design, adding a fan can increase continuous operation at full load power

Product Parameters: Product Name: Boost Inverter Module Input Voltage: DC 12-16.8V Output Voltage: DC 220V Current: 2.1A Power: 50-100W (up to 100W with fan cooling) Output: Only suitable for low-power appliances, output should not exceed 50W Compatible Fan: DC 12V fan (with PH2.0-2P connector)

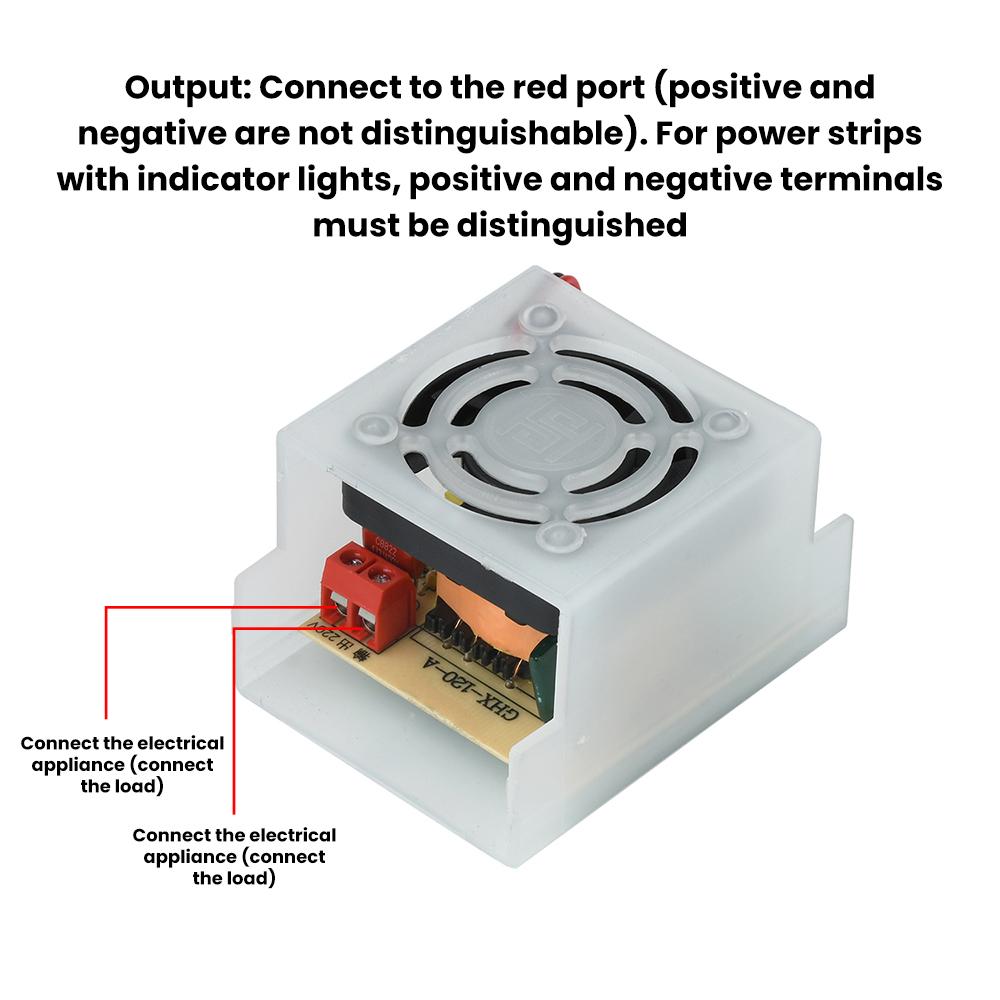

Application Scope: Suitable for light bulbs, fluorescent lamps, LED lights, energy-saving lamps (resistive-capacitive lamps are not compatible), mobile phone chargers, routers, broadband modems, speakers, monitoring equipment, etc. Not suitable for temperature-controlled soldering irons, solenoid valves, relays, capacitor charging, or power strips with indicator lights (can be used by switching the positive and negative output wires). Not compatible with motors, fans, aquarium water pumps, oxygen pumps, shavers, motor-driven devices, iron core transformers, etc. Wiring Instructions: Input 12-16.8V: Connect to the green terminal, observing polarity. Connect the positive (+) terminal to the battery's positive terminal and the negative (-) terminal to the battery's negative terminal. Output: Connect to the red terminal. Polarity is not important for the output, except for power strips with indicator lights, which require correct polarity.

Precautions: 1. This product's input can only be connected to a 12-16.8V battery. It converts the input to 220V AC power. The input positive and negative terminals must not be reversed, and it cannot be connected to an electric vehicle. Ensure the input and output connections are correct before connecting the battery and powering on. 2. For prolonged operation or in enclosed spaces, a cooling fan must be used. The output terminal of this product cannot be tested with a multimeter. 3. This product is a high-frequency inverter module. Please take necessary safety precautions during use and operate according to the instructions.

Package List: Buck Converter Module x1 label:yes
