Quantity : 1
High-concerned chemical : none
Package : As Description
is_d : Yes
Supply Voltage : As Description
Type : Voltage Regulator
Brand Name : DIY NOW
Origin : Mainland China
Condition : New
Operating Temperature : As Description
Condition : New
Type : Limitation Ideal Diode Module
Key Word : Voltage Module
Dropship : Support
40A 60A No Voltage Limitation Ideal Diode Module Solar Energy Anti Reverse Irrigation Battery Charger Protection Board
Features:

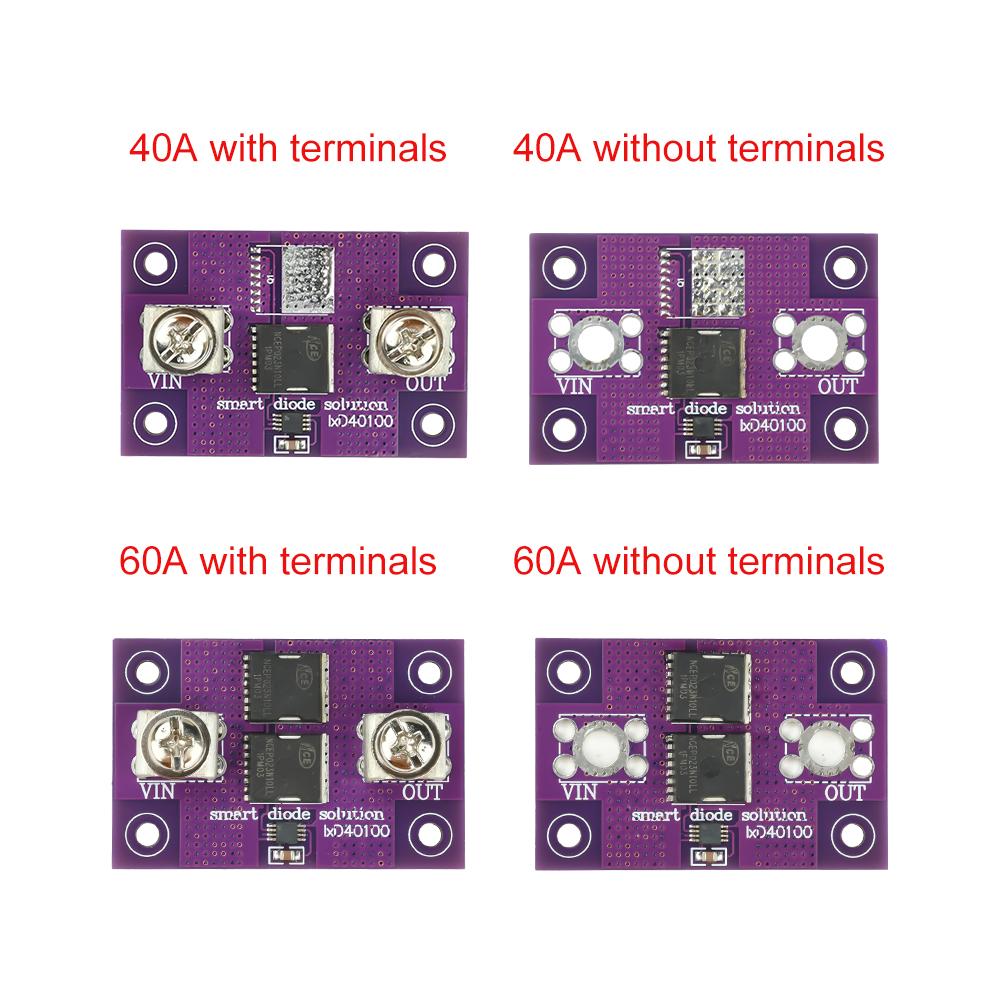

1. Available in 40A and 60A sizes, meeting the application requirements of different power scenarios and providing high flexibility.
2. An innovative ground-free structure reduces installation complexity.
3. No voltage restrictions, strong compatibility, and adaptability to a wide range of power systems.
4. Integrated reverse polarity protection, backflow protection, and reverse inflow protection functions enhance overall reliability.
5. Utilizing ideal diode control logic, it significantly reduces the on-state voltage drop and power consumption compared to traditional diodes, improving energy efficiency and reducing heat generation.
Product Description:
Several types available to meet diverse customer needs. Only requires series connection to the positive terminal of the circuit; no connection to the negative terminal is required.
No input voltage restrictions (guaranteed reverse voltage is less than 40V).

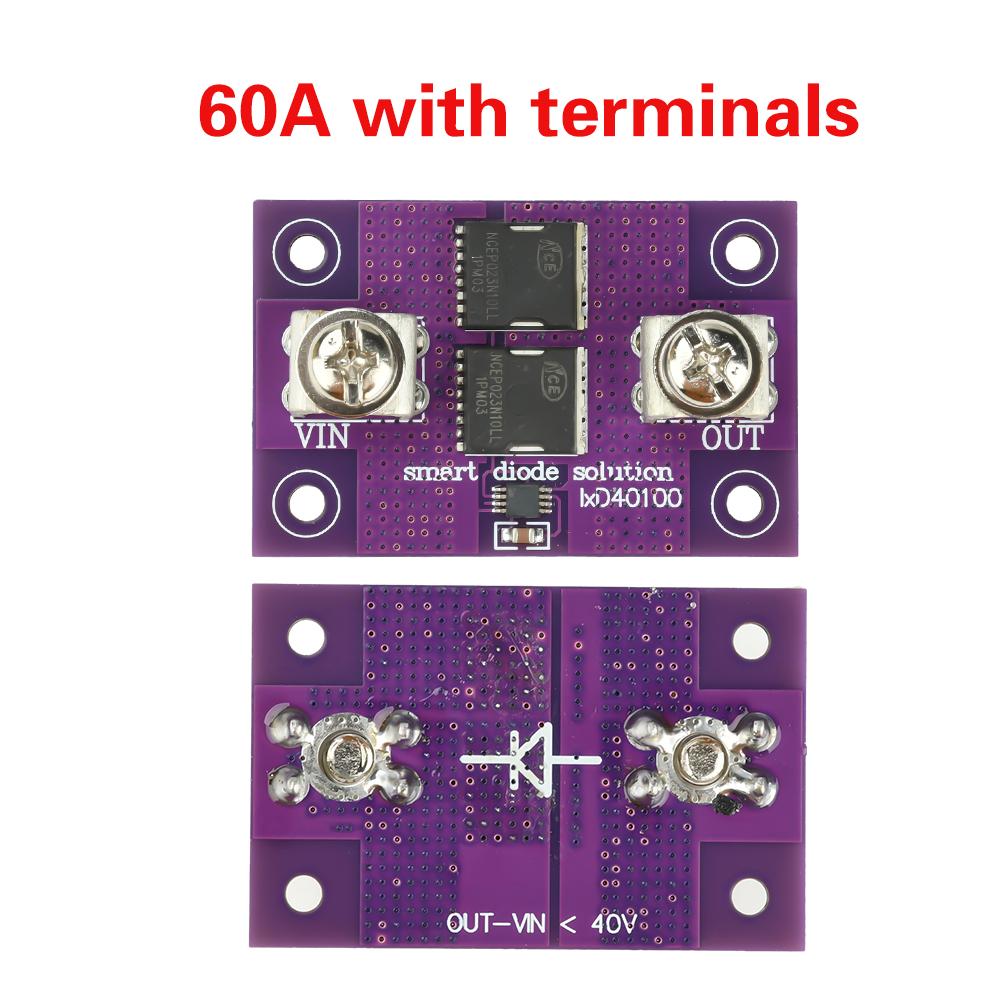

300A high-current MOS diode: one diode can handle 40A, two diodes can handle 60A.
1 milliohm on-resistance: low loss and low heat generation.
Quickly responds to reverse polarity conditions within 2µs, with input and output functioning like diodes. When the output voltage is detected to be greater than the input voltage, the device immediately shuts off the output. The detection level is in the millivolt range, and the response speed is very fast.
Product Applications:
1. Replaces common high-current diodes, batteries, and solar panels to prevent backflow and reverse current.
2. Ideal for reverse polarity protection when connected in series with the power supply input.
Notes:
There is no input voltage limit, but there is a reverse voltage requirement, which must be less than 40V. The output voltage cannot exceed the input voltage of 40V. For example, if the input is connected to a 24V power supply and the output is connected to a battery, a 12V, 24V, 36V, 48V, or 60V battery can be connected. However, a battery with a voltage of 72V or higher (72V output - 24V input = 48V) cannot be connected. The reverse voltage exceeds 40V.
Package List:
Module *1
label:yes
