Zero Voltage Drop Ideal Diode Module 50ns Fast Turn Off Anti Reverse Connection For E-bike Energy Storage PV Power Supply

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : DC 5-100V Type : Module Operating Temperature : 0-50C Origin : Mainland China Condition : New Multi Power Supply Parallel Isolation : Battery Reverse Polarity Protection Replace Schottky Diode : Prevent Battery Backflow Power Supply Fault Isolation : Solar Photovoltaic Anti Reverse Module E-bike Battery Protection Board : Energy Storage Battery Anti Backflow Communication Server Power Module : Industrial Control Power Protection

Product Features 1. Dual chip dual MOS architecture, high current and low heat generation 2. Wide voltage DC 5-100V coverage, compatible with all series from 12V to 72V 3. 50ns fast shutdown to prevent backflow and safeguard battery safety 4. Perfect replacement for Schottky, zero voltage drop, system efficiency leap 5. Support parallel connection of multiple power sources and automatic isolation of faulty power sources

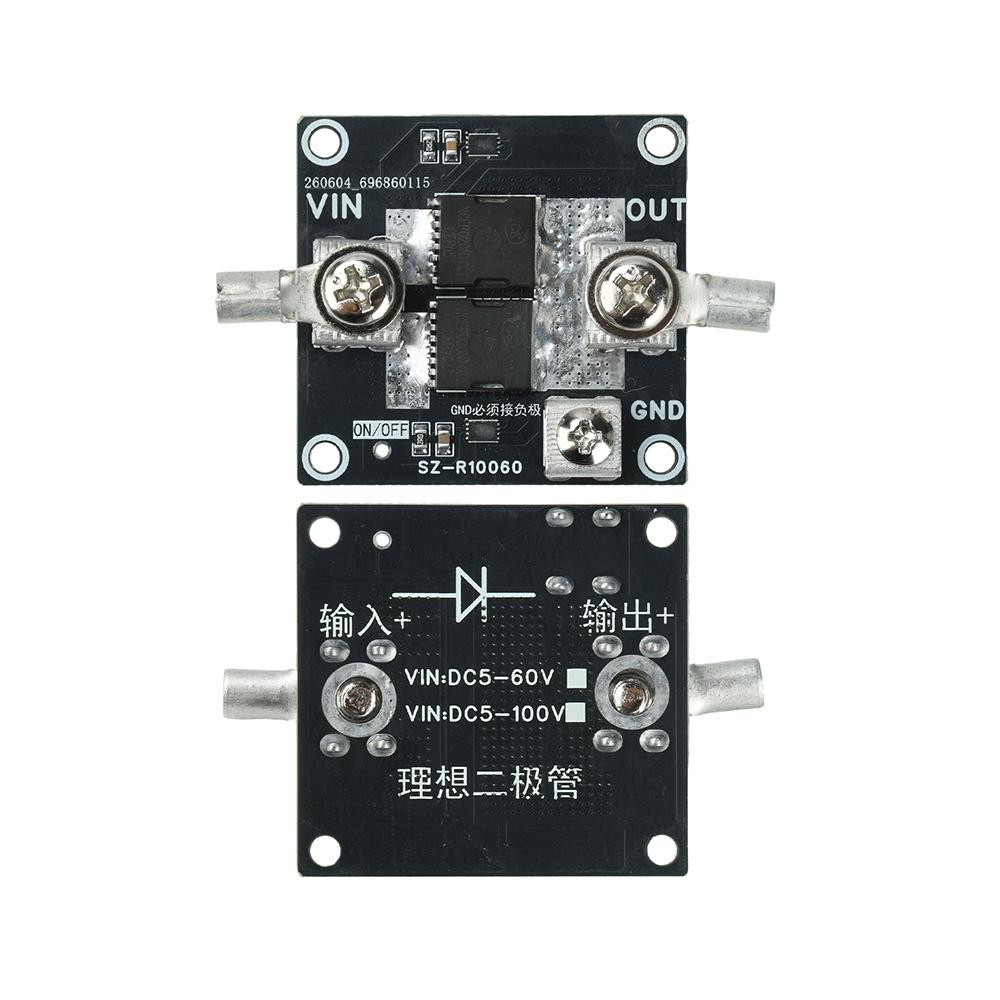

Product Introduction The module adopts a dedicated ideal diode dual chip control dual MOS tube, with high output current, low internal resistance MOS tube, low heat generation, smooth output voltage, small fluctuations, and a wide operating voltage of DC5-100V, 5-60V optional.

Product parameters Type 1/Type 3 Input voltage range: DC 5-100V Input optimal operating voltage: DC 8-90V Peak current: 100A Continuous maximum operating current: 50A Internal resistance of MOS conduction: 1.7m Ω Off time: 50ns

Type 2/Type 4 Input voltage range: DC 5-60V Input optimal operating voltage: DC 6-55V Peak current: 100A Continuous maximum operating current: 60A Internal resistance of MOS conduction: 1.2m Ω Off time: 50ns

Precautions 1. GND must be connected to the negative pole. 2. It cannot be connected to AC power and cannot replace rectifier bridges for AC rectification 3. The input voltage cannot be lower than 5V. When the input voltage is lower than 8V, the loss is greater and the heating is greater. Please reduce the current for use 4. The positive and negative poles of the input cannot be reversed

main purpose 1. High voltage power supply (redundant parallel connection of multiple power sources) 48V/72V communication power supply, parallel connection of multiple power supplies for servers/base stations Automatic isolation of faulty power supply to prevent backflow, fast shutdown in 50ns Replacing multiple Schottky barriers, high current generates minimal heat

2. Anti reverse connection/anti backflow of battery system Electric vehicle (54V/72V/90V), energy storage battery pack Prevent reverse connection of chargers, instant backflow during insertion and removal, and battery interconnection 100V withstand voltage covers most power battery voltages

3. Industrial/new energy high-pressure backflow prevention Photovoltaic junction box, micro inverter (anti night component backflow) 20-80V power tools, industrial control power path protection

Packing List Ideal diode module * 1 (style optional) label:yes
