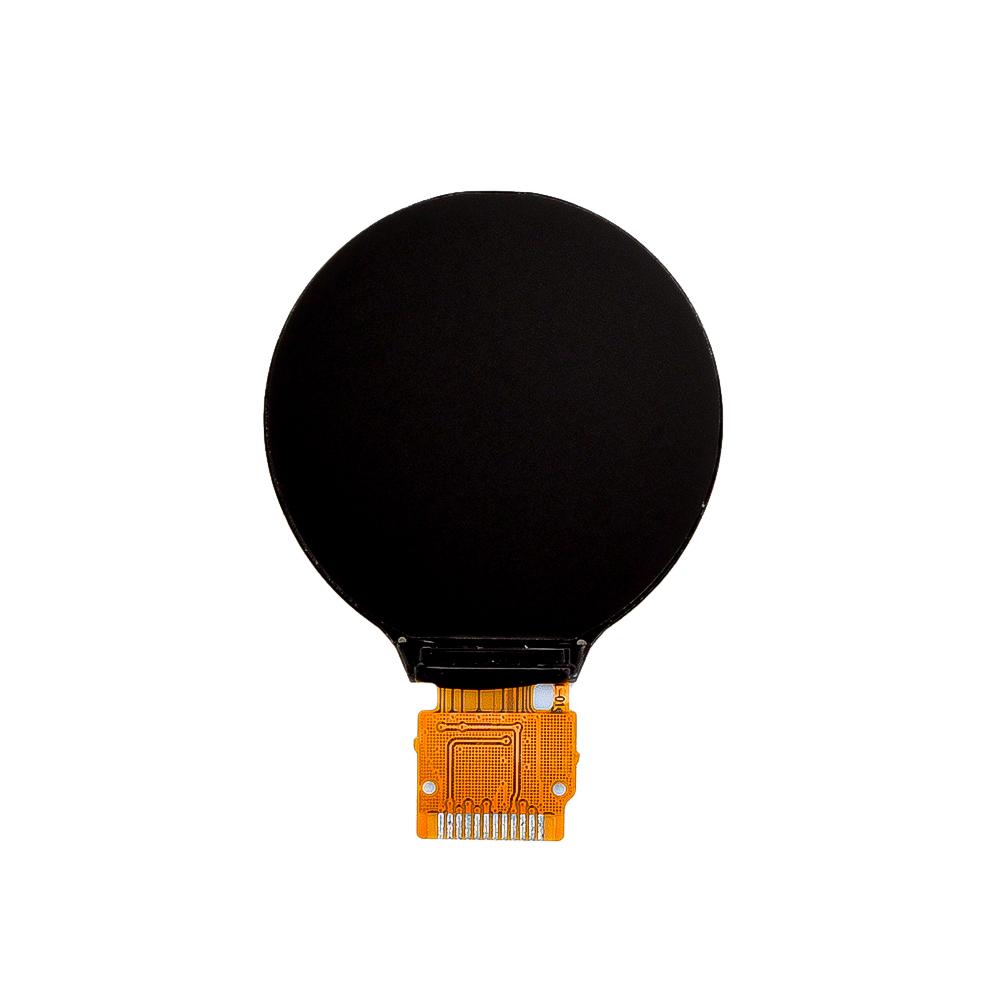

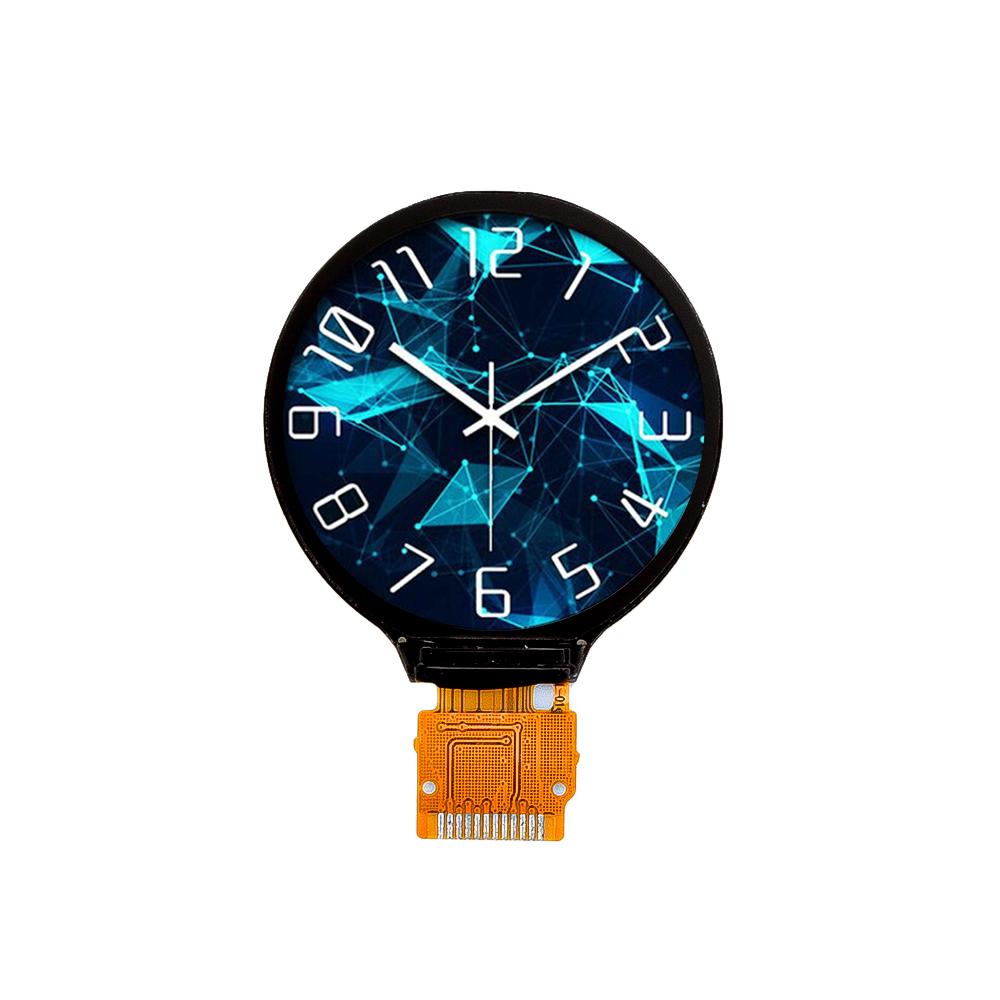

DC 3.3V 1.28 inch TFT LCD Display Module Round RGB 240*240 GC9A01 Driver 4 Wire SPI Interface 240x240 Resolution Electronic Kit

High-concerned chemical : none Display Mode : 240x 240 is_d : Yes Model Number : As Description Type : TFT Brand Name : DIY NOW Origin : Mainland China Resolution : 240x240 Condition : New Type : TFT LCD Display Module Key Word : LCD Module Dropship : Support

DC 3.3V 1.28 inch TFT LCD Display Module Round RGB 240*240 GC9A01 Driver 4 Wire SPI Interface 240x240 Resolution Electronic Kit Features: 1. Compact Size 2. Widely Used in Smart Wearables and Round Products 3. Utilizes the GC9A01 Driver Chip 4. High-Definition IPS LCD 5. 1.28-inch 240*240 Full-Color Display

Product Parameters: Size: 1.28-inch Material: High-Definition IPS LCD Resolution: 240 RGB*240 Driver Chip: GC9A01 Communication Interface: 4-Line SPI Display Color: Full Color Display Area: φ32.4mm Panel Dimensions: 35.6*38.1*1.5" Pixel Pitch: 0.135*0.135" Pin Count: 12-pin bare screen (0.7mm pitch solderable FPC), 8-pin display module (2.54mm pitch single-row pin header, unsoldered by default) Operating Voltage: 3.3V Operating Current: 20mA Operating Temperature: -20°C to 70°C

Package List: 1.28-inch 1.28-inch TFT full-color bare screen*1 1.28-inch TFT full-color display module*1 + pin header*1 label:yes
