Industrial ESP32-S3 Control Board With RS485 And CAN Communication Electronic Kit Type-c Interfaces

Quantity : 1 High-concerned chemical : none Package : TQFP is_d : Yes Supply Voltage : As Description Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New Condition : New Type : ESP32-S3 Control Board Key Word : ESP32-S3 Module Dropship : Support

Industrial ESP32-S3 Control Board With RS485 And CAN Communication Electronic Kit Type-c Interfaces Features:

1. Based on ESP32-S3, dual-core 240MHz, powerful AI computing power.

2. Supports Wi-Fi + Bluetooth 5 (LE), ensuring more stable wireless connectivity.

3. Isolated RS485/CAN interfaces for safer industrial communication.

4. Onboard RS485 and CAN indicator lights for easy monitoring of device operating status.

5. DIN rail-mounted housing design for convenient installation and strong protection.

Product Features:

Based on the ESP32-S3 microcontroller, featuring a built-in Xtensa 32-bit LX7 dual-core processor with a clock speed up to 240MHz.

Integrates 2.4GHz Wi-Fi and Bluetooth Low Energy (BLE) dual-mode wireless communication, offering excellent RF performance.

Onboard isolated RS485 interface for easy expansion to various RS485 Modbus industrial expansion modules or sensors.

Onboard isolated CAN interface for easy expansion to various CAN devices.

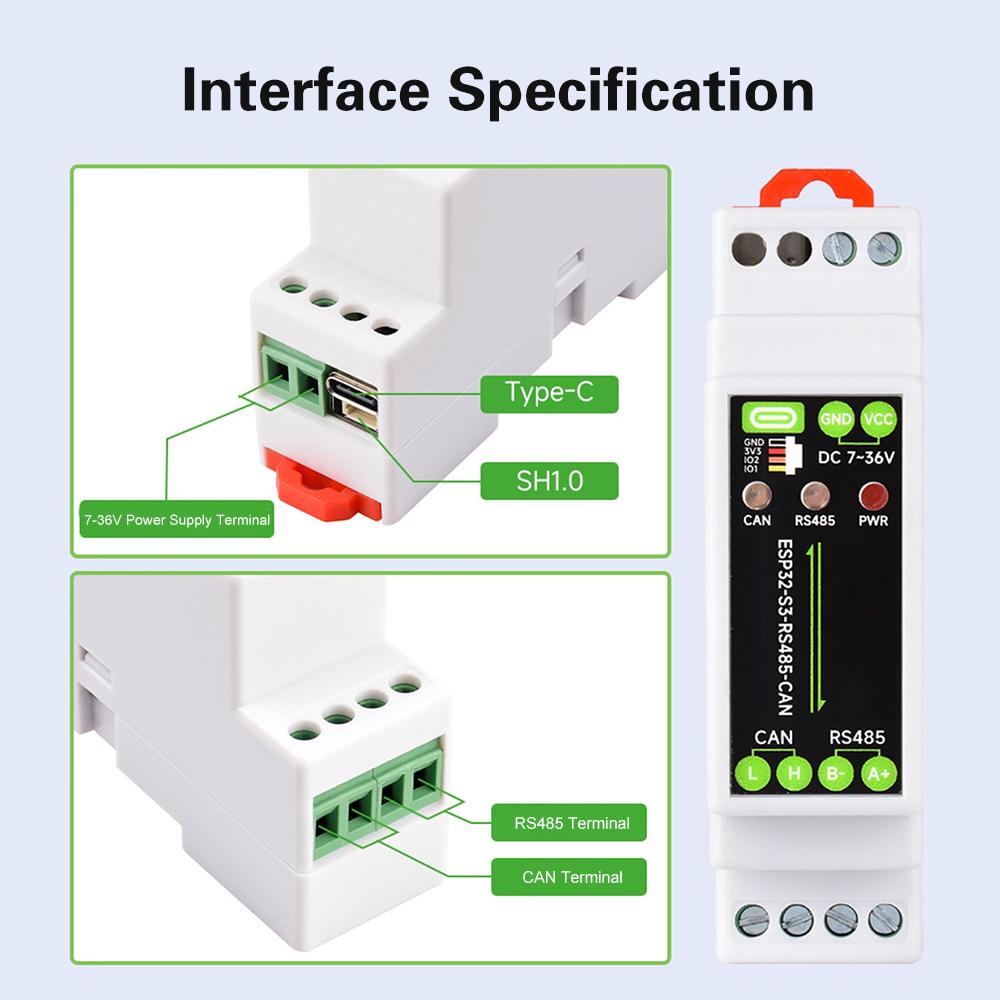

Onboard pin header interface for connecting other devices.

Onboard USB Type-C interface for power supply and download/debugging, facilitating development.

Onboard terminal block power supply interface supporting a wide voltage range of 7V to 36V for industrial power supply applications.

Onboard RTC clock chip for timed tasks.

Onboard digital isolation to prevent external signal interference with the control chip.

Onboard integrated power isolation provides stable isolation voltage; no additional power supply is required for the isolation terminals.

Onboard RS485 transceiver indicator and CAN interface. Operating indicator lights facilitate monitoring of device status. Rail-mounted protective housing facilitates installation and use, and provides enhanced safety.

Product Parameters: Model: ESP32-S3-RS485-CAN Microcontroller: ESP32-S3 (default is ESP32-S3R8 chip) Wireless Communication: 2.4GHz Wi-Fi (802.11 b/g/n), Bluetooth 5 (LE) USB Interface: USB Type-C Power Supply: 5V Functions: Device power supply, USB communication, and firmware download, etc. Isolated RS485 Communication Interface: Interface Type: Terminal Block Direction Control: Automatic control via master hardware settings Interface Protection: TVS diode protection, surge and ESD protection Matching Resistor: Default NC, 120R matching resistor reserved, jumper cap enabled Isolated CAN Communication Interface: Interface Type: Terminal Block Direction Control: Hardware automatically determines and controls data transmission direction Interface Protection: TVS diode protection Pipe protection, surge and ESD protection

Matching resistor: Default NC, 120R matching resistor reserved, can be enabled with jumper cap

PWR power indicator: Red light illuminates when connected to USB and voltage is detected

RS485 indicator: Green light illuminates when data is sent from the RS485 interface. Blue light illuminates when data is sent back from the RS485 interface.

CAN indicator: Flashes when data communication is present on the CAN interface.

Terminal power supply range: 7V ~ 36V

Housing: DIN rail protective housing

Dimensions: 91.6 × 23.3 × 58.7 (mm)

Product list:

ESP32-S3-RS485-CAN × 1

SH1.0 4PIN connector cable approx. 150mm × 1

Screwdriver × 1 label:yes
