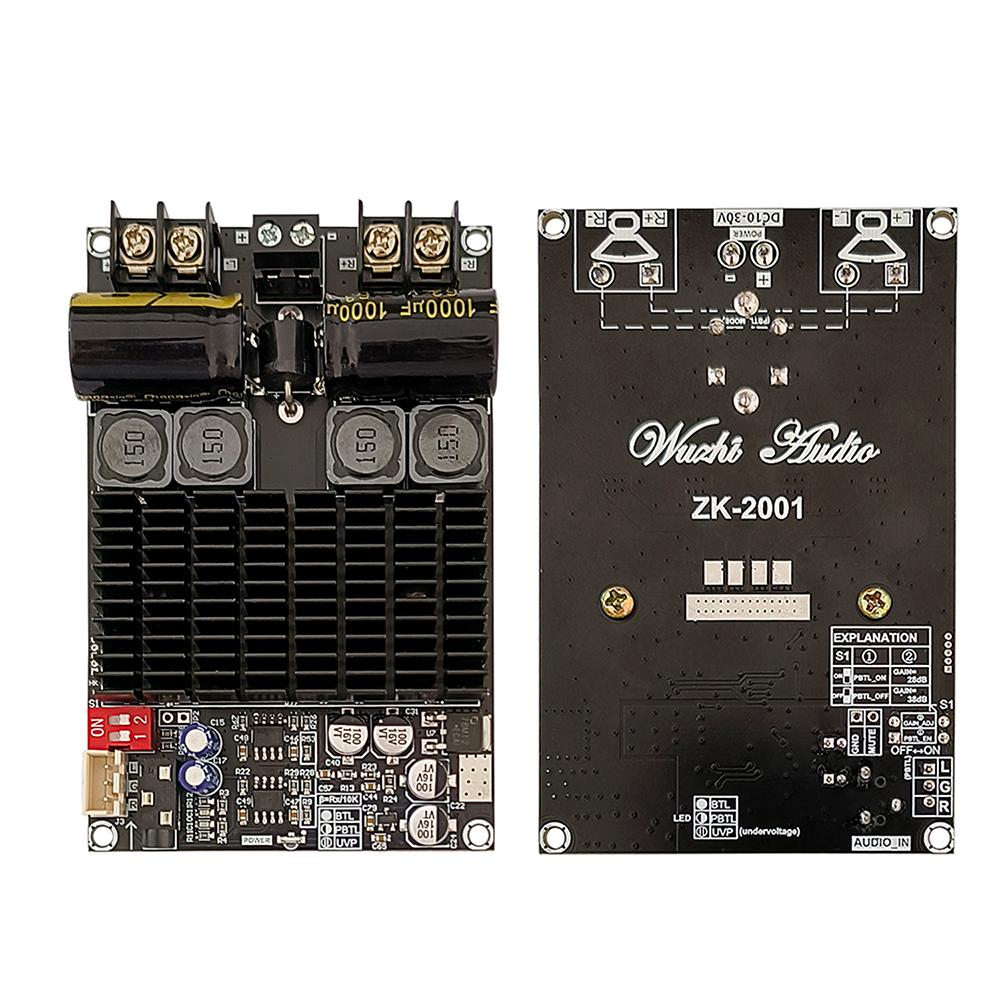

DC 10-30V ZK-2001 TPA3221 Dual Channel Pure Rear Stage Digital Amplifier Board 100W+100W AMP Bridged Mono Subwoofer Speaker

Quantity : 1 High-concerned chemical : none Package : TQFP is_d : Yes Application : Speaker Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New Operating Temperature : As Description Condition : New Type : Digital Amplifier Board Key Word : Amplifier Board Dropship : Support

DC 10-30V ZK-2001 TPA3221 Dual Channel Pure Rear Stage Digital Amplifier Board 100W+100W AMP Bridged Mono Subwoofer Speaker

Features: 1. High-efficiency TPA3221 chip, supports 100W+100W dual-channel/200W mono output. 2. Wide operating voltage range (10-30V DC), 24-30V high voltage is recommended for greater power. 3. Supports BTL and PBTL modes, adapts to a variety of impedance speakers, and meets the needs of different scenarios. 4. Built-in multiple protection mechanisms, including undervoltage, overheating, overcurrent and short circuit protection, safe and reliable. 5. Adopts multi-tooth heat sink design to effectively improve heat dissipation efficiency and ensure long-term stable operation. Product parameters: Product name: 100W+100W dual-channel/200W mono pure post-stage amplifier board Amplifier chip: TPA3221 Product model: 2001 Adaptive power supply: operating voltage range 10-30V DC, limit 31V. It is recommended to use a DC power supply with a voltage of 24-30V and a current of more than 10A. The higher the voltage, the greater the output power. Never connect to AC power, otherwise it will burn out!

Applicable speakers: 3-8 ohms, 20-100W in BTL dual-channel mode; 2-8 ohms, 50-200W in PBTL mono mode

Cooling method: multi-tooth heat sink

Gain selection: 2-speed selection of No. 2 dial switch, 28dB, 38dB

Bridging method: first turn off the power, turn No. 1 dial switch to the ON position, output terminals R+ L+ short-circuit parallel output, R- L- short-circuit parallel output. Maximum power: In BTL mode, 2*70W@24V 4Ω, 2*100W@30V 4Ω; in PBTL mode, 150W@30V 3Ω, 200W@30V 2Ω, 110W@30V 4Ω Protection mechanism: input undervoltage, overheating, overcurrent, short circuit protection, input reverse connection protection Product size: 100x65x18mm

Product list: 1X power amplifier board 1X shielded wire label:yes
