3A DC Fan Governor Digital Thermostat Module Auto Speed Control Support 2 3 4 Wire Fan For Cabinet Heat Dissipation System

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : DC 9V-30V Type : Module Origin : Mainland China Condition : New Feature 1 : chassis cabinet fan speed regulator Feature 2 : dual temperature probe thermostat Feature 3 : automatic fan speed control Feature 4 : cooling fan noise reduction Feature 5 : relay temperature switch Feature 6 : DC 9V-30V wide voltage module Feature 7 : diy cooling system Feature 8 : 3A fan control module

Product Features: 1. Using high-quality materials, stable and durable operation 2. Super compatible and adaptable, supporting 12V/24V multi specification DC fans 3. Intelligent temperature measurement, stepless speed regulation, energy-saving and noise reduction, and extended fan life 4. Digital display, adjustable parameters, easy operation, strong adaptability 5. Suitable for multiple industrial scenarios such as fan speed regulation, temperature control alarm, and cold and hot control

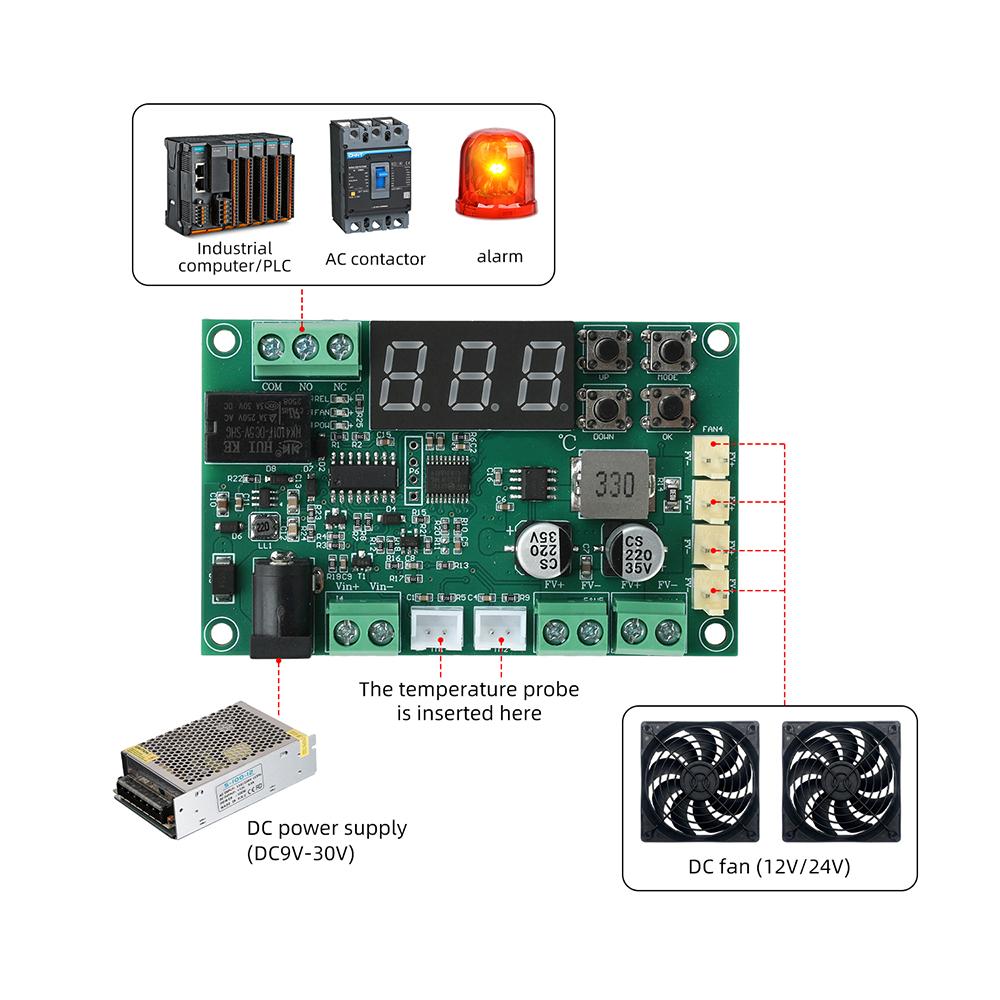

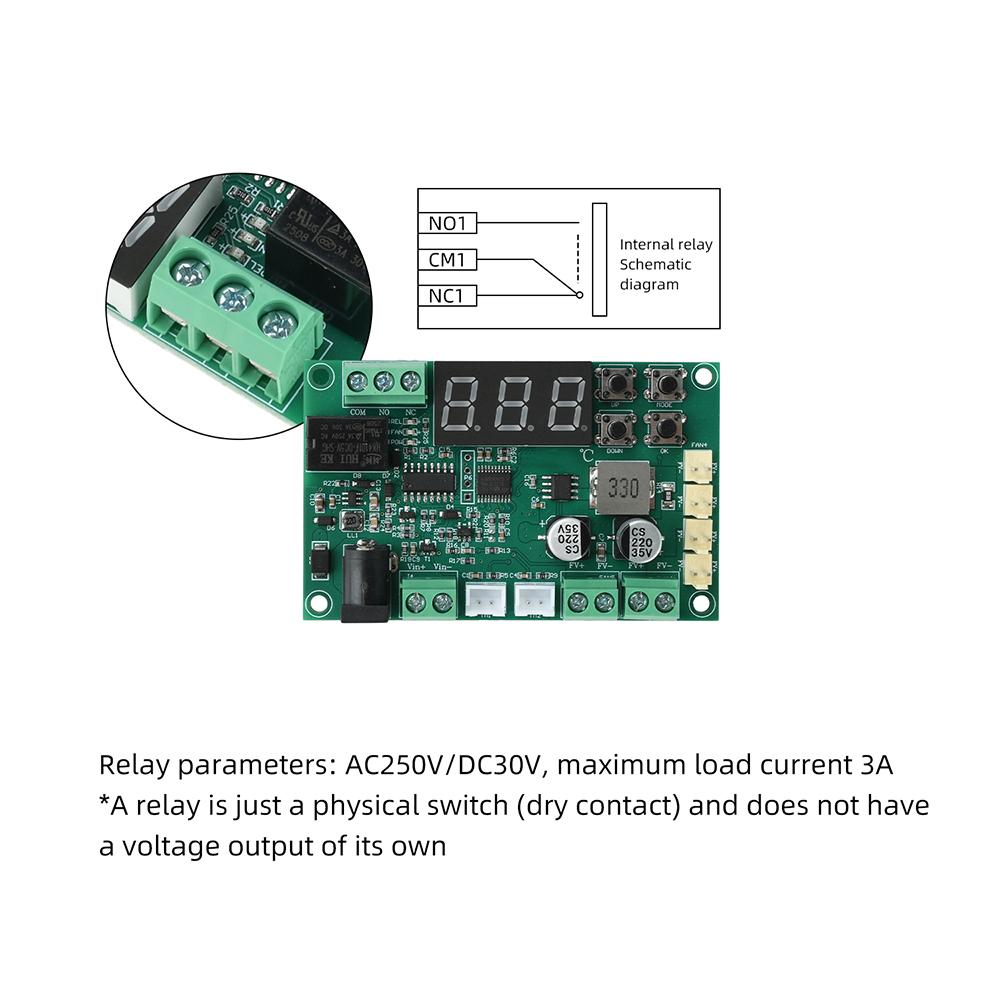

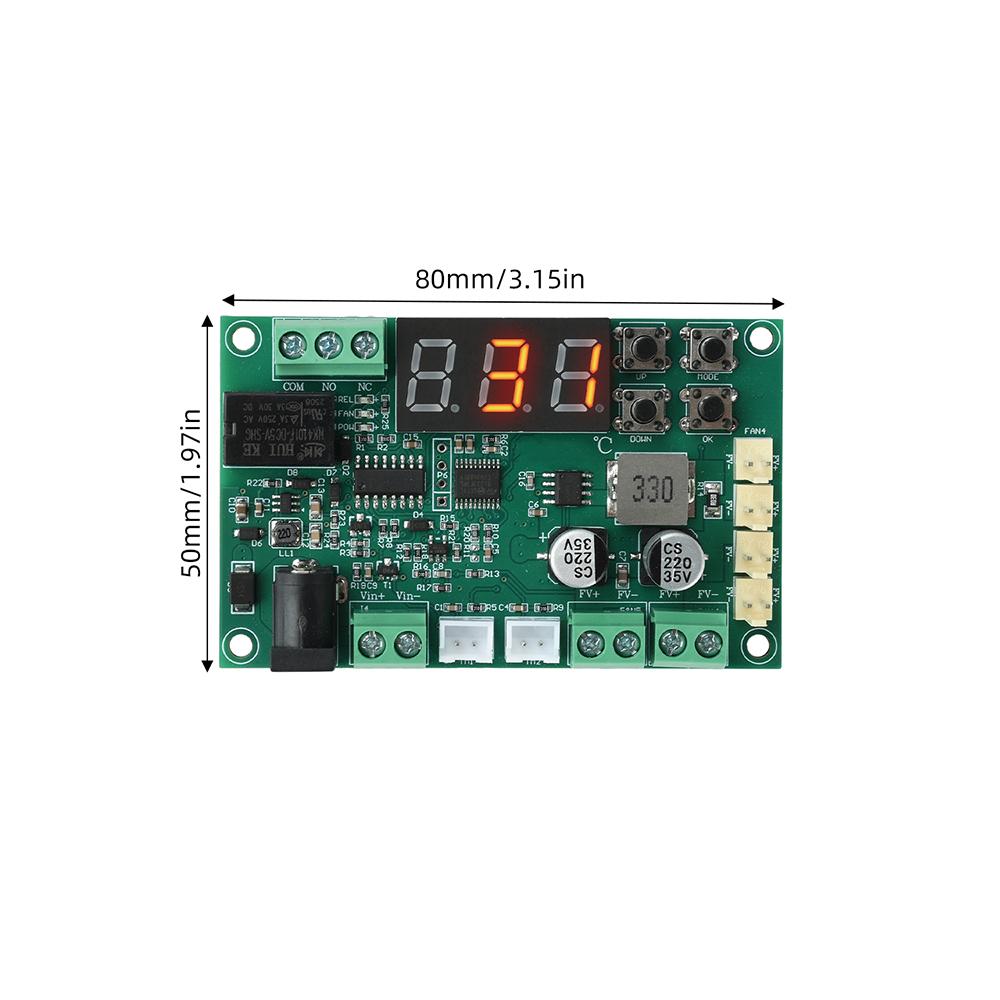

Product Parameters: Power input port: DC 5.5 * 2.1 straight socket, wiring terminal (choose one from two) Power supply: Supports DC 9V-30V; Maximum driving output current: 3A Suitable fan voltage: DC 12V, DC 24V (24V power supply is compatible with 12V fans) Suitable fan types: 2-wire, 3-wire, 4-wire DC 12/24V fan Temperature measurement configuration: supports dual temperature probe access (can be used with a single probe, adjust speed based on high temperature values) Speed regulation method: programmable linear stepless voltage regulation, temperature linked speed automatic adjustment Working mode: minimum speed mode, fan stop mode (start stop temperature difference of 3 ℃) Expansion function: Integrated independent temperature control relay switch, customizable temperature control parameters Fan wiring port: screw wiring terminal, KF2510-2P plug-in port Display mode: digital display screen, real-time temperature measurement in standby mode, adjustable parameters with buttons Overall dimensions of the machine: 80mm * 50mm Installation hole size: 73.5mm * 43.5mm

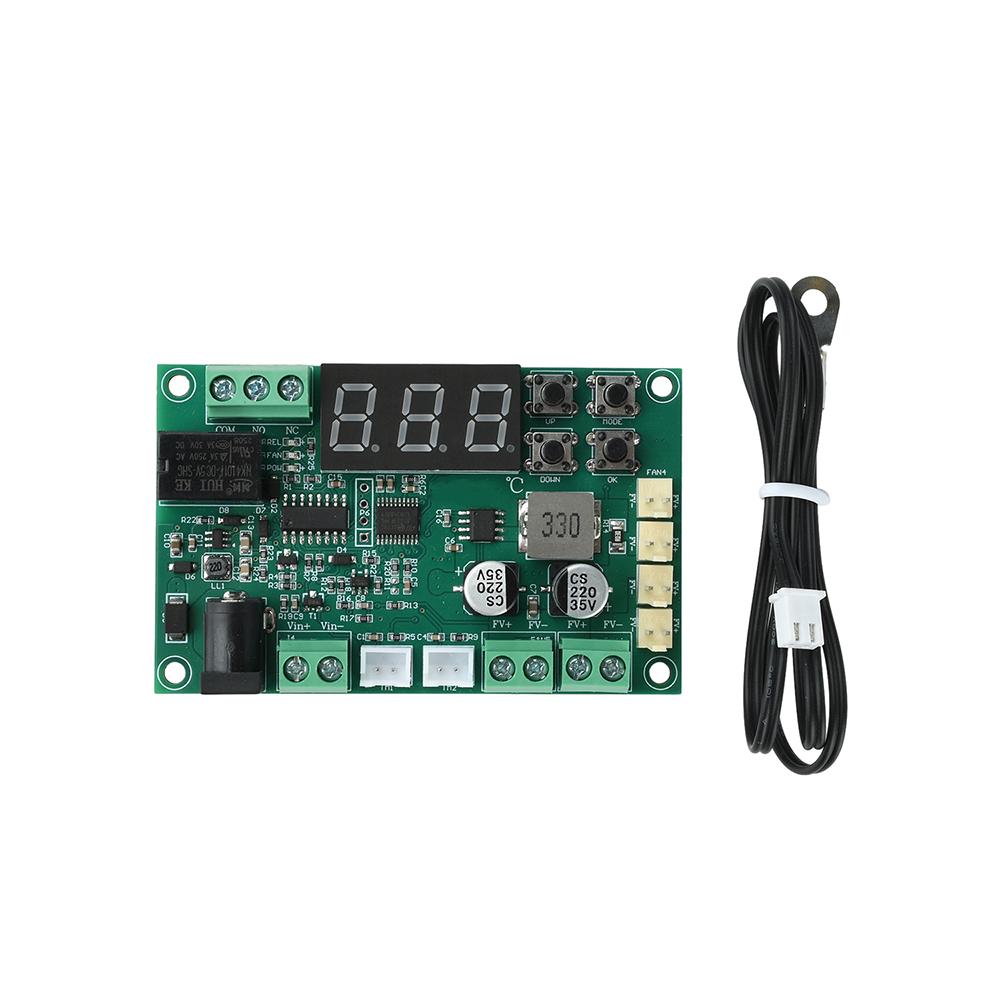

Product List: 1X module 1X temperature probe (wire length approximately 50cm) label:yes
