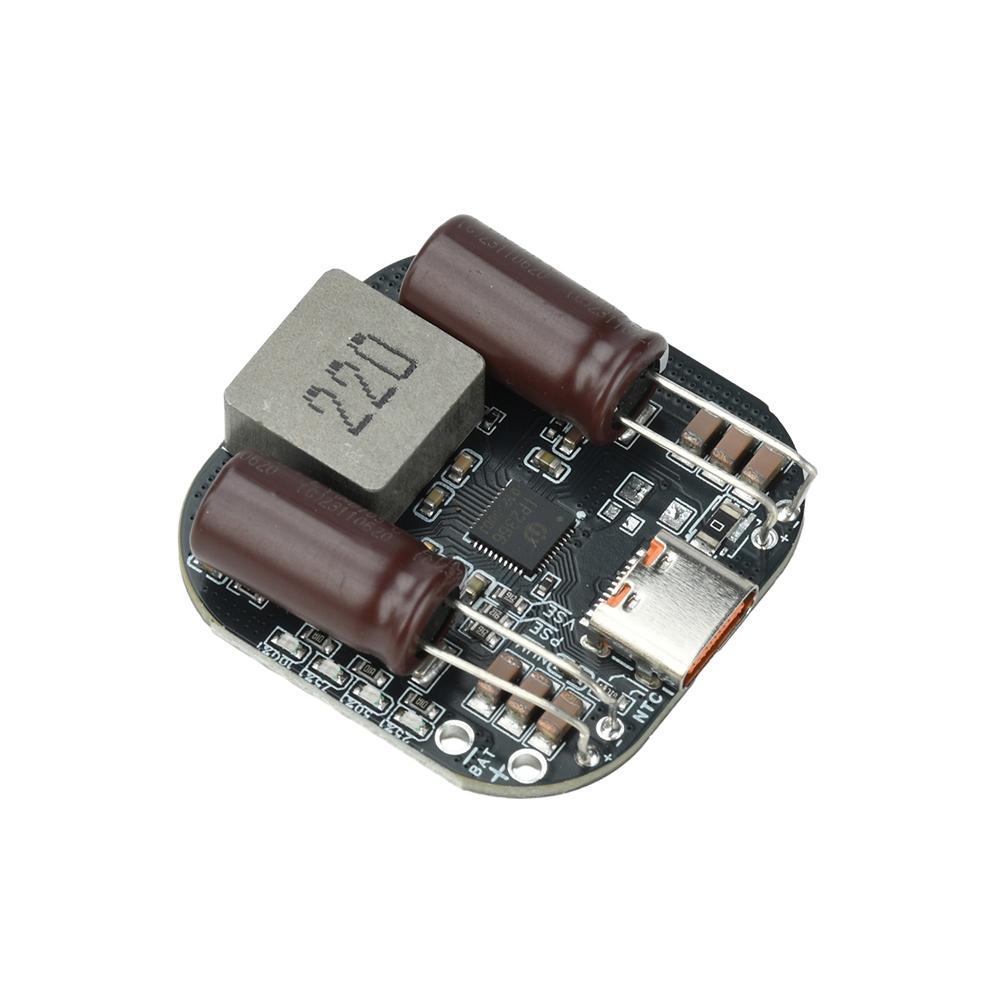

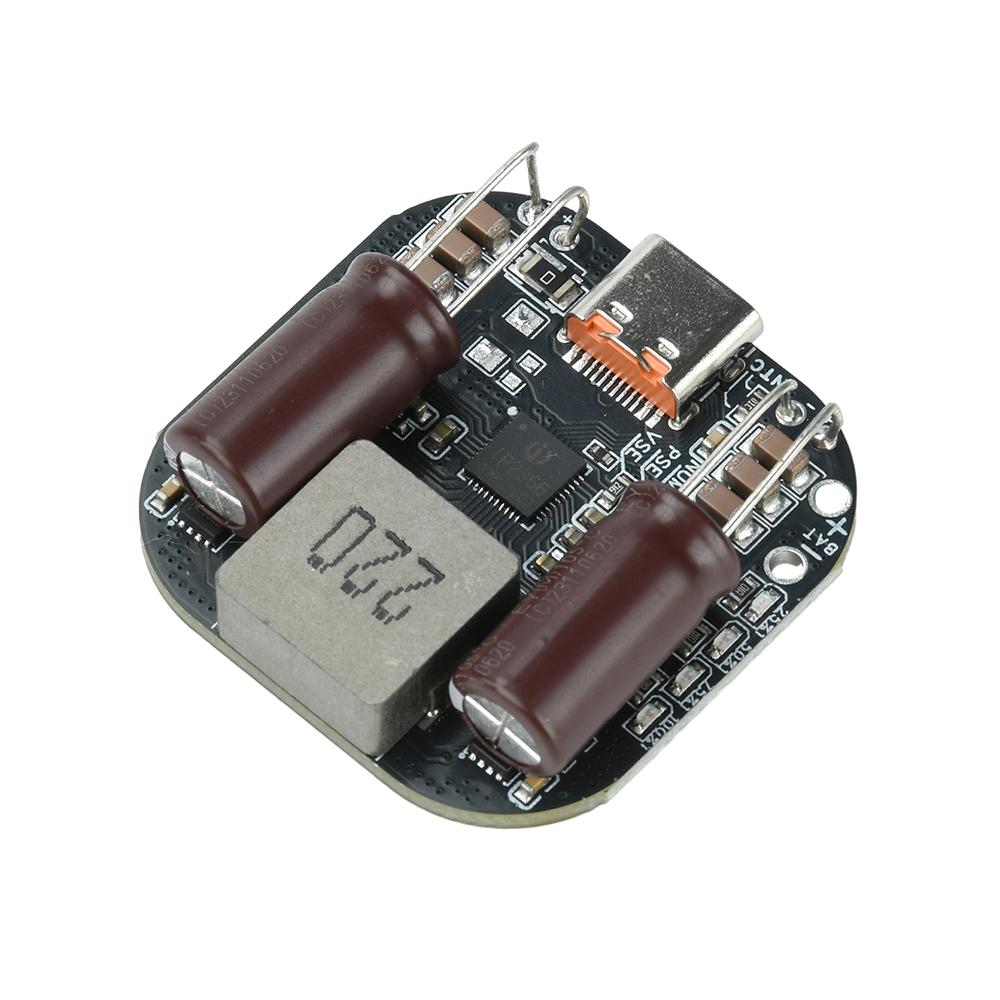

2-6S Lithium Battery Charge Discharge Module 140W PD3.1 FCP AFC SCP Full Protocol Fast Charging Step Up Down Converter

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Dissipation Power : 140W Supply Voltage : 5V Type : Module Origin : Mainland China Condition : New Feature 1 : 140W Bidirectional Charge Discharge Feature 2 : 2-6S Lithium Battery Compatible Feature 3 : PD3.1 QC3.0 Fast Charging Feature 4 : Type C Charging Module Feature 5 : LiFePO4 Battery Support Feature 6 : Ternary Lithium Battery Support Feature 7 : Overcharge Short Circuit Protection Feature 8 : IP2366 Chip Module Feature 9 : Multi Protocol Fast Charging Module Feature 10 : Smart Battery Protection Module

Product Features 1. Bidirectional 140W high power, efficient and fast charging and discharging 2. Compatible with 2-6S lithium batteries, compatible with lithium iron phosphate, ternary lithium, and polymer batteries 3. Full protocol coverage, supporting PD3.1/QC3.0+/FCC/AFC/SCP 4. The PCB backplane has no components, and the heat dissipation fins are evenly attached, ensuring worry free heat dissipation 5. Multiple safety protections, including overvoltage/undervoltage/overcurrent/overtemperature/short circuit/overcharge/overdischarge protection

Product Introduction The IP2366 used in the product controller is a highly integrated 2-6S lithium battery charge and discharge management chip. Its core advantage lies in integrating multiple fast charging protocols such as 140W high-power charge and discharge, PD3.1, and synchronous voltage control. The chip supports multiple voltage outputs of 5V, 9V, 12V, 15V, 20V, and 28V, and can achieve a maximum charge and discharge power of 28V/5A (140W). It is fully compatible with 2-6S series connected lithium iron phosphate, ternary lithium, and polymer battery packs.

Product Specifications Voltage: 2-6S lithium iron phosphate, ternary lithium, and polymer battery packs Interface: Type C Interface power: 140W 4 battery indicator lights, which can display the charging and discharging status and current battery level Integrated FCP Input/Output Fast Charging Protocol Integrated AFC Input/Output Fast Charging Protocol Integrated SCP Input/Output Fast Charging Protocol Integrated DRP Try.SRC protocol, PD3.1 input-output fast charging protocol Integrated QC2.0/QC3.0/QC3.0+output fast charging protocol Supports 5V, 9V, 12V, 15V, 20V, and 28V bit voltages Maximum support 28V5A, 140W Support charging and discharging 2-6S series lithium iron phosphate, ternary lithium, and polymer batteries Input protection: overvoltage and undervoltage protection Output protection: overcurrent and short circuit protection Battery protection: overcharge, overdischarge, overcurrent protection Temperature protection: IC over temperature protection, NTC temperature protection for charging and discharging batteries ESD protection: ESD 4KV, input pins (including CC1/CC2) withstand voltage 30V

The relationship between the fully charged voltage of a single battery and its corresponding resistance value: 3.65V corresponds to 3.6k 4.1V corresponds to 6.2k 4.2V corresponds to 9.1k 4.35V corresponds to 13k 4.4V corresponds to 18K 4.2V corresponds to 27k Relationship between power and corresponding resistance value: 30W corresponds to 3.6k 45W corresponds to 6.2k 60W corresponds to 9.1k 65W corresponds to 13k 100W corresponds to 18k 140W corresponds to 27k The relationship between the number of battery series connections and the corresponding resistance value: Two sections in series correspond to 3.6k 3 sections in series correspond to 6.2k 4 sections in series correspond to 9.1k 5 sections in series correspond to 13k 6 sections in series correspond to 18k

Packing List Module * 1 label:yes
