Auto Fallback PD QC Trigger Module Type C Interface 5V 9V 12V 20V Output With Color Led Light For Diy Electronic Test

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : DC 5V 9V 12V 20V Type : Module Origin : Mainland China Condition : New Operating Temperature : 0-50C Feature 1 : PD Trigger Module Feature 2 : QC Trigger Board Feature 3 : TypeC Power Trigger Feature 4 : Fast Charging Decoy Module Feature 5 : 5V 9V 12V 20V Voltage Trigger Board Feature 6 : TypeC PD QC Decoy Module Feature 7 : Adjustable Voltage Trigger Module Feature 8 : TypeC Input Voltage Switch Board For Electronic

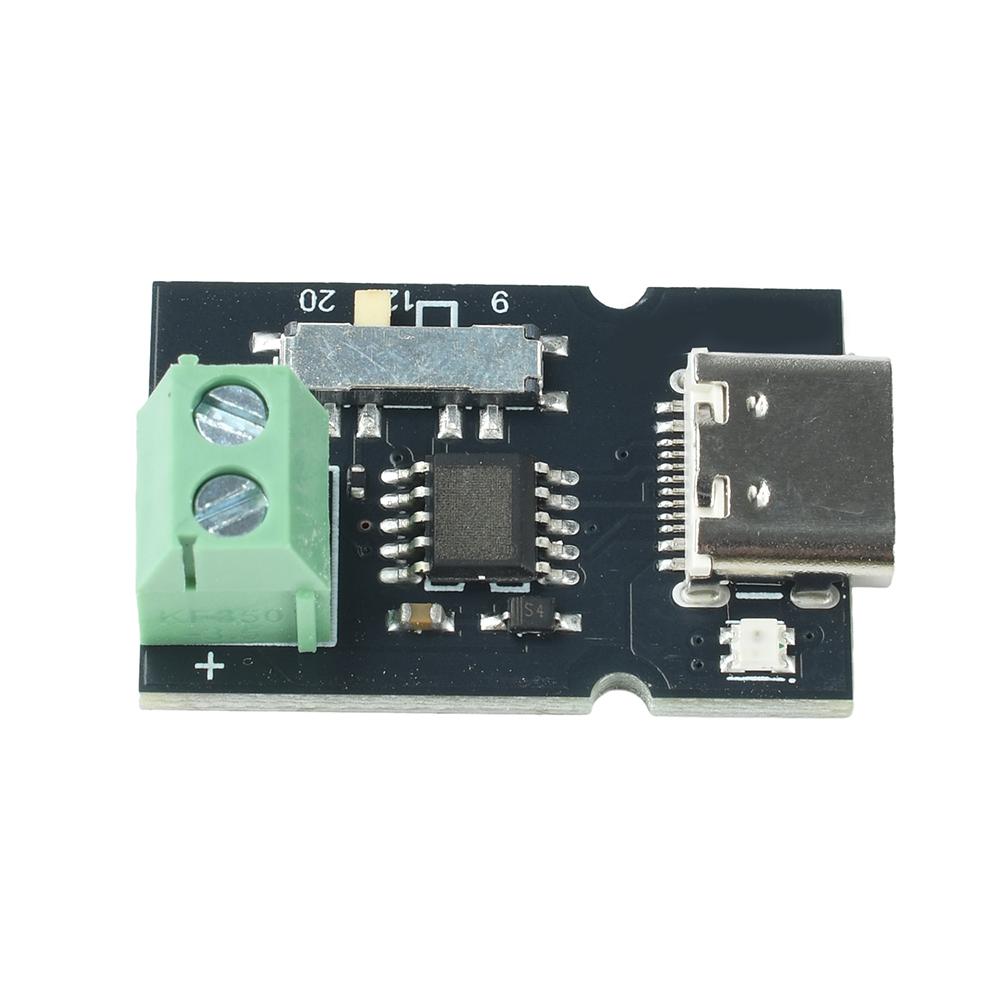

1. Support mainstream fast charging protocols such as PD/QC, intelligent automatic recognition and matching 2. Supports four preset voltages of 5V/9V/12V/20V, easily meeting different power supply needs 3. 5V yellow, 9V green, 12V green, 20V purple, display different color indicator lights for different voltages 4. If the preset gear is not available, it will automatically downshift to ensure optimal output voltage 5. Plug and solder, suitable for rapid deployment scenarios such as electronic experiments and product embedding

Product Introduction This module is designed specifically to solve the problem of various devices obtaining preset voltage from fast charging power adapters. Built in intelligent protocol chip, fully compatible with PD2.0, PD3.0 and QC protocols, automatically shakes hands with the charger after power on, and automatically downshifts if the preset gear is not available to ensure optimal voltage output. If the adapter does not support fast charging, the module will automatically revert back to the default output of 5V, with strong compatibility. Supports four voltage outputs of 5V, 9V, 12V, and 20V, with four-color LED indicator lights displaying the current gear in real-time (5V yellow/9V green/12V green/20V purple), allowing for intuitive judgment of the working status without the need for a multimeter. Compact in size, plug and play.

Product Parameters Product Name: Deception Power Module Interface: Type C interface Output voltage: DC 5V/9V/12V/20V (voltage switched by toggle switch) Indicator lights: 5V yellow, 9V green, 12V cyan, 20V purple

Precautions 1. The charging head needs to support PD/QC protocol, otherwise it will fail to power up 2. Flipping the switch will immediately activate the set voltage 3. Before connecting the load, it is necessary to measure the voltage at the output terminal of the module to confirm that the applied voltage is the correct voltage allowed by the load. 4. When adjusting the voltage, it is forbidden to connect the backend load!!!

Packing List Module * 1/5 label:yes
