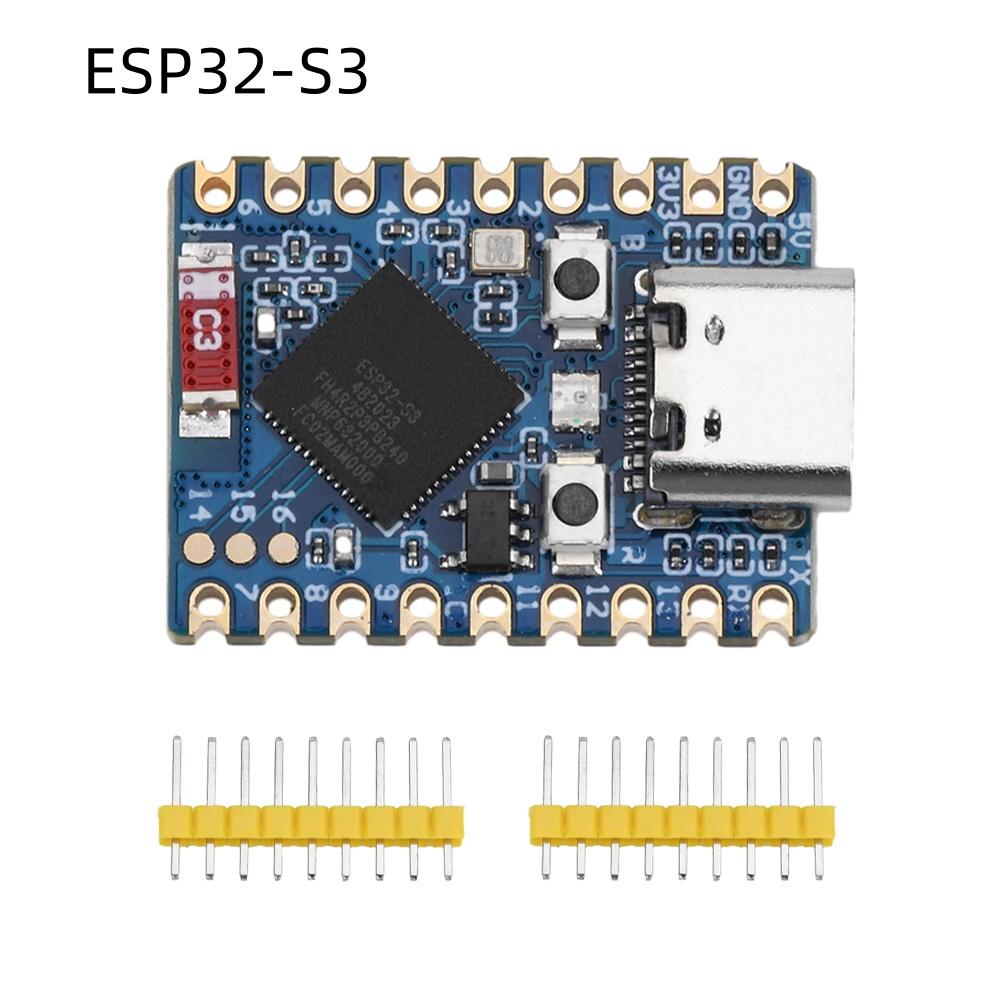

ESP32-S3-Zero ESP32-C3 Mini Development Board WiFi Bluetooth On ESP32-C3FN4 Ultra-small Size ESP32 C3 S3 ESP 32

High-concerned chemical : none Type : Module Brand Name : diymore Origin : Mainland China Condition : New

ESP32-S3 Features: 1. Equipped with high-performance Xtensa ® A 32-bit LX7 dual core processor with a main frequency of up to 240MHz. 2. Supports 2.4GHz Wi Fi (802.11 b/g/n) and Bt ® 5 (LE). 3. Built in 512KB SRAM and 384KB ROM, stacked 4MB Flash and 2MB PSRAM. 4. Adopting a stamp hole design and onboard ceramic antenna, it is convenient to integrate into the user's self-designed bottom plate. 5. Support flexible clock and separate module power settings for control, achieving low power consumption mode in multiple scenarios. 6. Integrated USB serial port full speed controller, with 34 GPIOs for flexible configuration of peripheral functions. 7. Equipped with peripherals such as 4xSPI, 2xI2C, 3xUART, 2xI2S, 2xADC, etc. 8.Based on ESP32-S3 FH4R2, most of the pins are led out in a small board shape using a half hole process, which can be soldered onto custom boards. Parameter: Processor: ESP32-S3FH4R2 dual core processor with a running frequency of up to 240MHz Interface: Type-C interface Current: (Max) 800mA Antenna: 2.4G ceramic antenna Key: BOOT button, press and then reset to enter download mode RESET reset button LED: WS2812 Cool RGB LED Size: 23.5 * 18mm ESP32-C3 Features: 1. ESP32-C3-Zero mini development board, based on ESP32-C3FN4, leads out most of the pins under the small board type 2. Adopting a half hole process, it can be welded to custom boards 3. Low power SoC equipped with RISC-V 32-bit single core processor, with a main frequency of up to 160MHz 4. Supports 2.4GHz Wi Fi (802.11 b/g/n) and Bt@5 (LE) 5. Built in 400KB SRAM and 384KB ROM, stacked 4MB Flash 6. Adopting a stamp hole design and onboard ceramic antenna, it is easy to integrate into the user's self-designed bottom plate 7. Support flexible clock and separate module power settings for control, achieving low power consumption mode in multiple scenarios 8. Integrated USB serial port full speed controller, with 15 GPIOs for flexible configuration of peripheral functions 9. Equipped with external devices such as 3xSPI, 1xI2C, 2xUART, 1xI2S, 2xADC, etc Parameter: Interface: Type-C interface Current (Max): 500MA BOOT button: Press and then reset to enter download mode RESET button: Reset button Operating frequency: up to 160MHz Antenna: 2.4G ceramic antenna Processor: ESP32-C3FN4 single core processor Size: 23.5 * 18mm Package include: 1X development board
