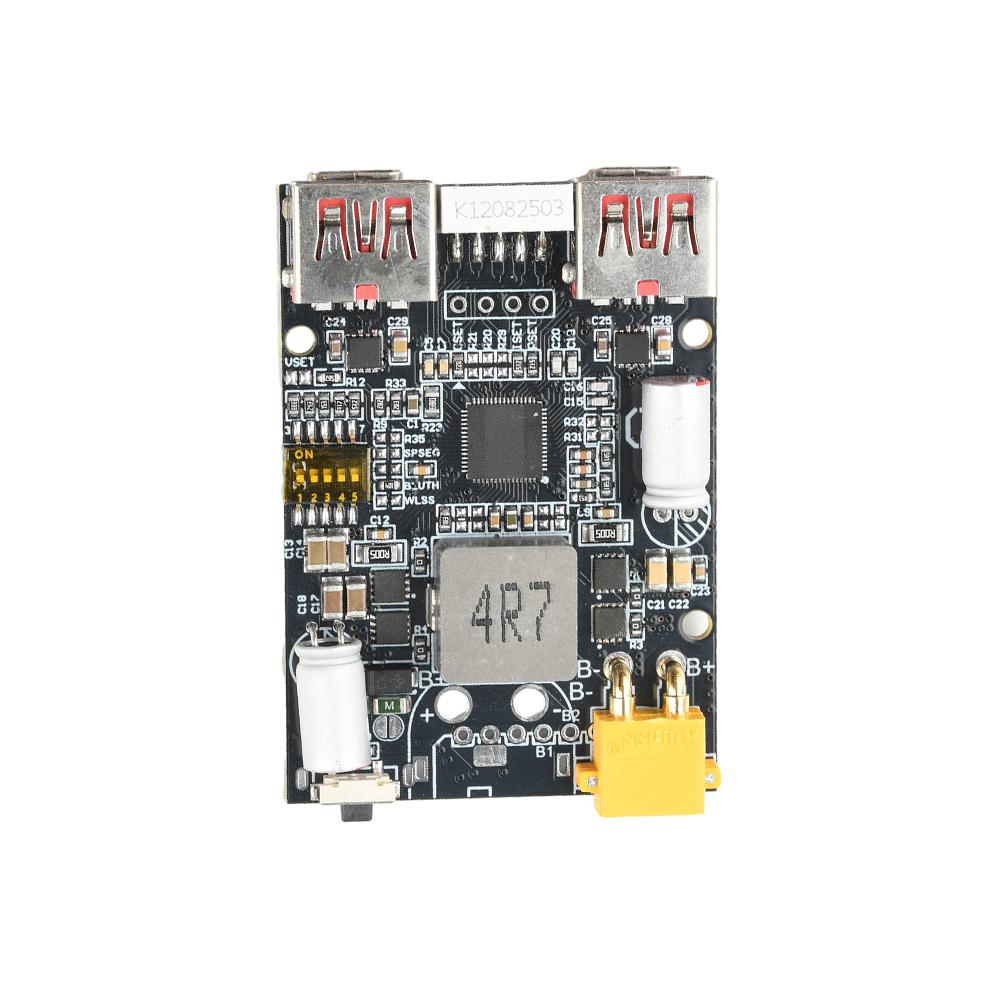

2-7S DC 5-20V 100W Fast Battery Charger Module PD Decoy Lithium Battery Charger Support PD2.0/3.0/3.1 PPS FCP QC2.0/3.0/3.0+ SCP

Quantity : 1 High-concerned chemical : none is_d : Yes Supply Voltage : DC 5-20V Type : Module Brand Name : diymore Origin : Mainland China Condition : New

Features 1.Support 2-7S lithium batteries, strong applicability, to meet the needs of a variety of battery combinations 2.100W high power output, fast charging speed, save waiting time 3.Main uses: outdoor power supply, energy storage equipment, backup power, mobile power DIY, etc. 4. Compatible with lithium batteries and lithium iron phosphate batteries, support for lifting voltage charging and discharging. 5. High-efficiency conversion rate, low heat generation design, enhance the use of safety and life expectancy Parameter Input voltage: DC 5-20V (lift voltage type) Maximum 100W charging and discharging Supports 2-6S lithium batteries Supports 2-7S lithium iron phosphate Battery standby power consumption: 80μA Module interface: B+: connect to the positive pole of the battery protection board B-: connect to the negative pole of the battery protection board TYPE-C port: input and output bi-directional port USB: with protocol output interface Digital display for the coulometer display, the beginning of the inadmissible, calibration needs to be discharged to the battery can not be discharged, and then full of the battery to can not be recharged, the calibration is completed once. Support protocols: Support UFCS, VOOC, WARP, APPLE 2.4, AFC 9V/12V, PD2.0/3.0/3.1 PPS, FCP, QC2.0/3.0/3.0+, SCP, and other protocols Most models support fast charging. Other niche s can also be supported if they support PD, QC common protocols. Package include 100W fast charging module *1

label:yes

Connector type: type-c GaN support: no Plug type: European socket Number of ports: 1 port
