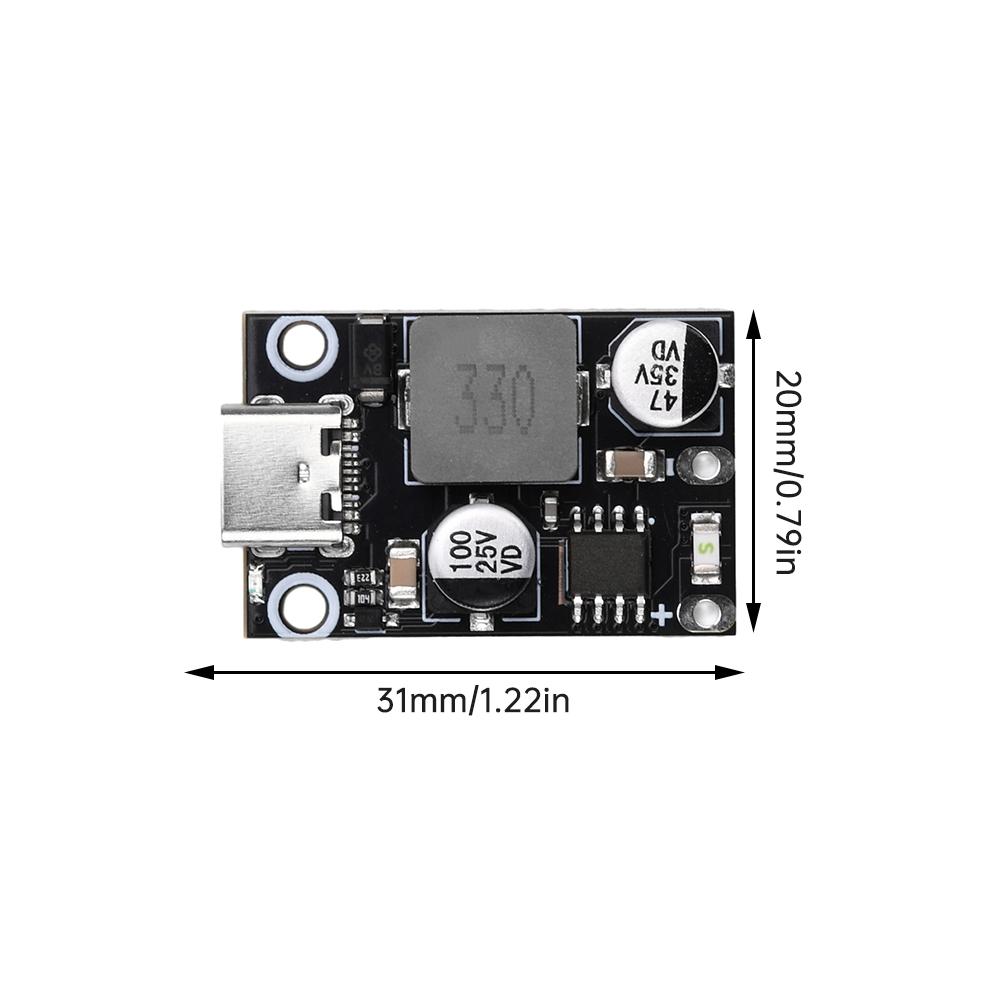

Type-C QC3.0 PD3.0 DC-DC Buck Converter Charging Step Down Module 30W/45W 8-30V 9V 12V 24V to Fast Quick Charger Circuit Board

Quantity : 1 High-concerned chemical : none Package : TQFP is_d : Yes Dissipation Power : 30W/45W Supply Voltage : 10V Type : buck (stepdown) regulator Brand Name : diymore Origin : Mainland China Condition : New Operating Temperature : -40-125℃

Product selling points: 1. Use of high quality high frequency capacitors, low DCR inductors, invisible places do not reduce the matching 2. When there is no startup output when the LED light is slightly bright, when the startup output when the high light, so as to reduce standby power consumption, but also convenient to identify the state of affairs 3. The product supports small current mode, digital tube display and LED power indication, which is more convenient to use. 4. High efficiency, complete protocols, most models support fast charging 5. Module for the standard PD protocol, does not recognize the load will be disconnected from the output, only recognized to comply with the C-port protocol of the load will start the output. Parameters: Input voltage: DC8-30V (recommended input 10-30V) Conversion efficiency: 92%-97 Output ripple: <200mV No-load current: ≤2mA Operating Temperature: -40-125°C Notes: 1.Support Huawei millet glory OPPO and other cell phones, other s part of the phone is compatible with 18WPD or QC fast charging, such as not recognized as fast charging, then 5V2A charging 2. Huawei FCP support ordinary line, but the SCP protocol to the original line, the original line is a USB port, you can use the C to USB interface 3.The module is a one-way output car charger products, the default shipment of a single module, and does not provide wiring, etc. Package list: Fast charging module * 1

label:yes

Connector type: type-c GaN support: no Plug type: European socket Number of ports: 1 port
