DC-DC 6-36V Buck Boost Converter Adjustable Regulated Power Supply Input Constant Voltage Constant Current Charging Module

EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc High-concerned chemical : none Type : Electromechanical is_d : Yes Model Number : Buck Boost Converter Current Type : DC Phase : Single-phase Brand Name : diymore Origin : Mainland China Certification : RoHS Use : SVC

Features 1. Features silicone buttons for a comfortable feel, with each button equipped with a stylish indicator light 2. Undergoes rigorous performance and aging tests to ensure reliability and stability 3. Supports a maximum output power of 220W, meeting the power requirements of high-power devices 4. Built-in buzzer provides button feedback and alarm alerts for safer and more reliable operation 5. Precise voltage and current adjustment via button controls, with a resolution of up to 0.01V/0.001A 6. Wide range of applications; supports MPPT solar charging and can be connected to an external temperature probe for over-temperature protection

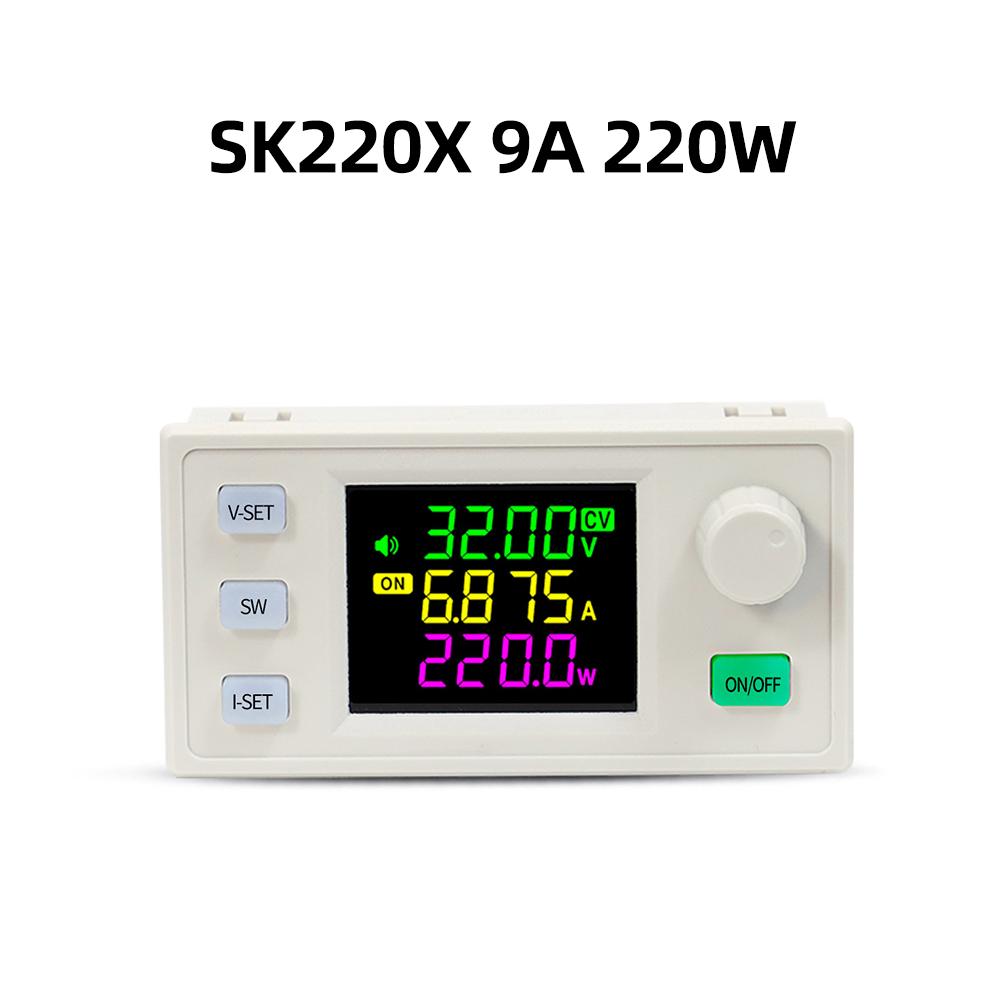

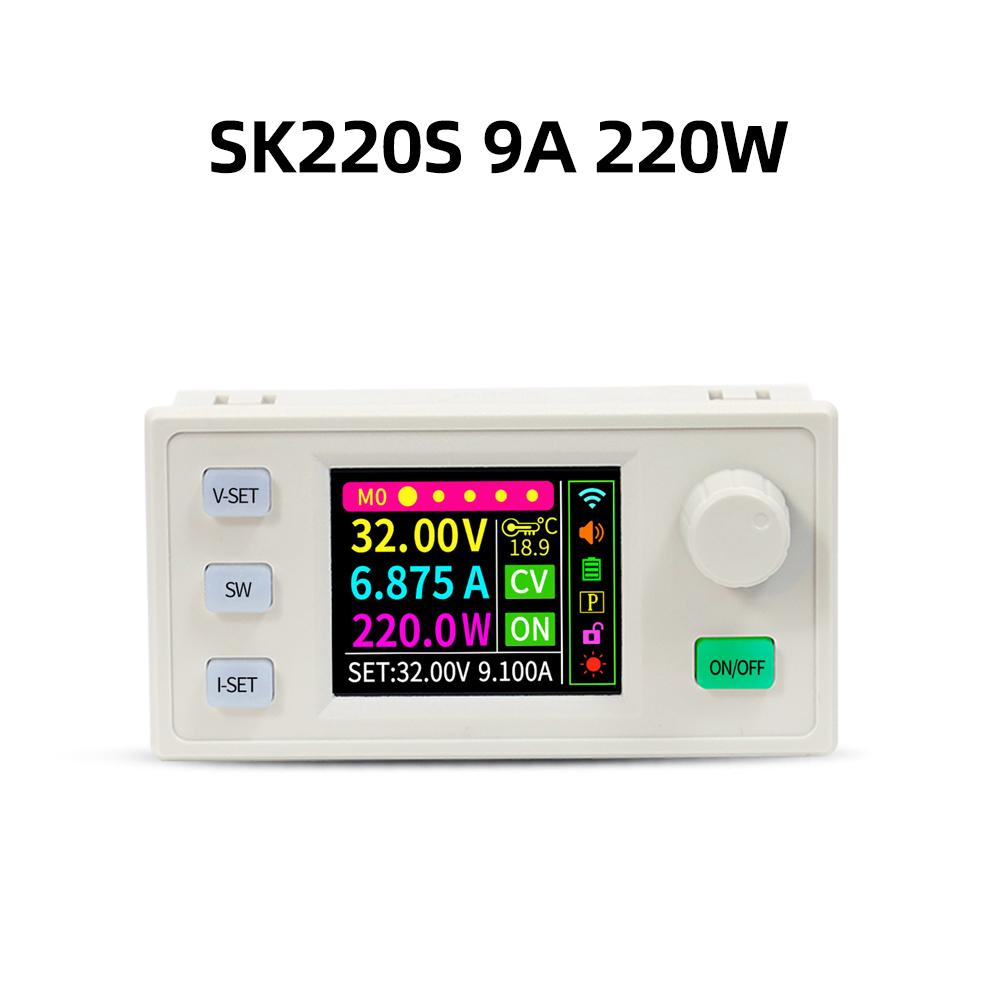

220W Parameter Input Voltage: 6.0–36V Output Current: 0–9.000A Output Power: 220W Voltage Resolution: 0.01V Conversion Efficiency: Approximately 88% Output Voltage: 0–40V Voltage Accuracy: ±0.5% + 1 digit Current Accuracy: ±0.5% + 3 digits Current Resolution: 0.001A Data Storage Groups: 10 groups MPPT Function: Supports MPPT solar charging Buzzer: Yes Soft Start: Yes Protection Mechanisms: Input Reverse Polarity Protection: Yes Output Backfeed Protection: Yes Input Undervoltage Protection: Adjustable 5.5–36V, default 5.5V Output Overvoltage Protection: Adjustable 0–42V, default 42V Output Overcurrent Protection: Adjustable 0–9.2A, default 9.2A Output Overpower Protection: Adjustable 0–240W, default 220W Over-temperature protection: Adjustable from 60–110°C, default 110°C Timeout protection: 1 minute–99 hours 59 minutes, default: off Over-capacity protection: 0–9999 Ah, adjustable, default: off Over-energy protection: 0–4200 kWh, adjustable, default: off Probe high-temperature protection: 0–110°C, adjustable, default: off Package include Adjustable buck-boost module × 1

180W Parameter Input Voltage: 6.0–36V Output Current: 0–9.000A Output Power: 180W Voltage Resolution: 0.01V Conversion Efficiency: Approximately 88% Output Voltage: 0–40V Voltage Accuracy: ±0.5% + 1 digit Current Accuracy: ±0.5% + 3 digits Current Resolution: 0.001A Data Storage Groups: 10 groups MPPT Function: Supports MPPT solar charging Buzzer: Yes Soft Start: Yes Protection Mechanisms: Input Reverse Polarity Protection: Yes Output Backfeed Protection: Yes Input Undervoltage Protection: Adjustable 5.5–36V, default 5.5V output Overvoltage Protection: Adjustable 0–42V, default 42V output Overcurrent Protection: Adjustable 0–9.2A, default 9.2A output Overpower Protection: Adjustable 0–200W, default 180W Over-temperature protection: Adjustable from 60–110°C, default 110°C Timeout protection: 1 minute–99 hours 59 minutes, default: off Over-capacity protection: 0–9999 Ah adjustable, default: off Over-energy protection: 0–4500 kWh adjustable, default: off Probe high-temperature protection: 0–110°C adjustable, default: off Package include Adjustable buck-boost module × 1
