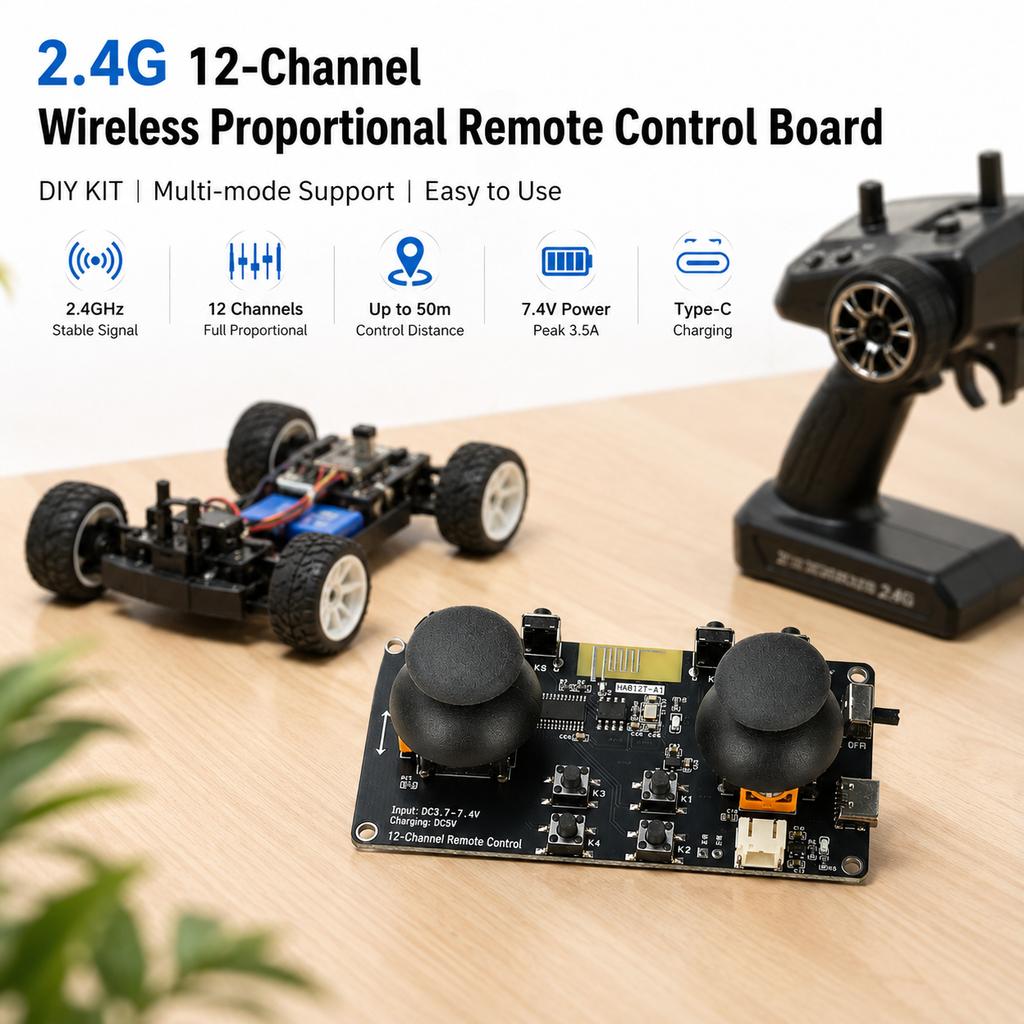

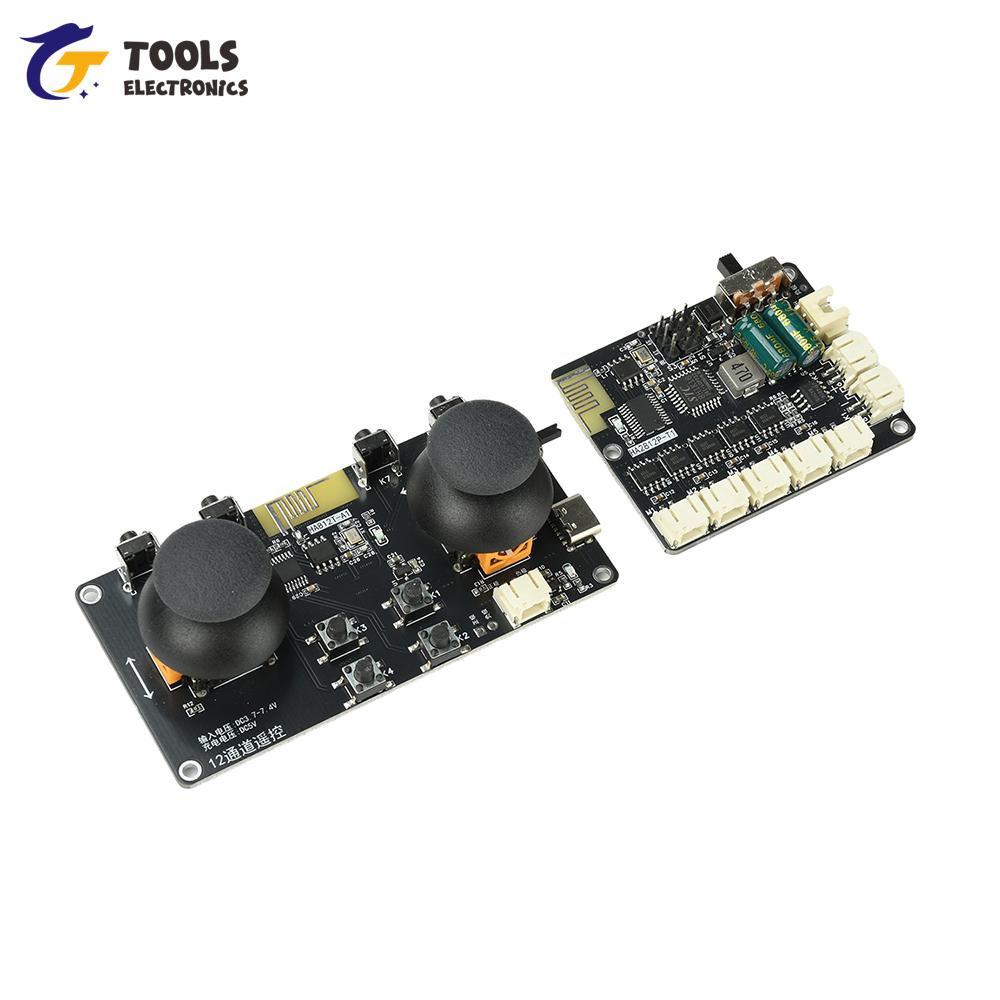

Wireless Remote Control DIY Kit 2.4GHz 12 Channel Full Scale Speed for Motor Control with Type-C Charging

Wireless Communication : RF Compatibility : Android Power Source : DC Battery Included : no Does It Includes Wireless Communication : No Inbox adaptor : No High-concerned chemical : none Communication method : RF State of Assembly : Almost Ready Model Number : 2.4GHz 12 Channel Type : Other Control Channels : 12 Channels & Up Brand Name : occkic Power Source : DC Origin : Mainland China Certification : CE

Features 1. Powerful 7.4V power supply, 3.5A peak motor current 2. Built-in Type-C charging, supports direct charging of 3.7V LiPo batteries 3. On-board 5V buck converter, perfectly drives 180°/360° servos 4. Pair-by-pair coding ensures no frequency interference when multiple sets are used simultaneously 5. 50-meter control range, 12-channel full-scale speed control Parameter Operating Voltage: Receiver board powered by 7.4V; transmitter board 3.7V, with built-in Type-C charging port that can directly charge 3.7V LiPo batteries to 4.2V Operating Current: Motor rated at 2A, peak 3.5A; does not support any high-torque motors Compatible Servos: Supports only 180° servos (recommended: SG90/MG90S/MG995); does not support 360° servos. The onboard buck module steps down the voltage to 5V to power the servos; servos will not operate if the supply voltage is below 6V Compatible Motors: Motors with a speed of ≤12,000 RPM, such as TT N20 and N30 motors, 130 motors, and standard motors within the 180–280 size range. For higher power requirements, an external current-boosting board can be connected to increase the output current to 5A or 20A. Please note: Hollow-shaft motors and any high-speed or over-powered motors are not supported Pairing Method: One-to-one pairing; multiple sets can be used without interference or frequency overlap Control Range: Built-in antenna; control range of approximately 50 meters (actual range may vary depending on the environment and usage method) Precautions 1. This module is suitable for various DIY or retrofit projects involving cars, boats, and other machinery or structures requiring remote control; it is not suitable for aviation projects. Please use it according to the specified parameters; otherwise, the receiver board and remote control module may be damaged 2. Do not test without knowing the motor parameters, as excessive motor power may burn out the circuit board. 3. Before charging the receiver board, ensure the battery polarity is correct. For 3.7V lithium batteries, verify they function properly before charging. Inserting the battery backwards and then charging will burn out the module. Please pay close attention to module mode switching. Operating Instructions 1. Power on the remote control board and turn on the switch. Press and hold buttons K2 and K4 simultaneously. The LED will turn off. After approximately 5 seconds, the LED will turn on. At this point, tap button K1; the LED will flash. The number of flashes indicates the current mode. Once you have selected the desired mode, release buttons K2 and K4. Note: During the mode selection process, you must keep buttons K2 and K4 pressed down continuously until you reach the desired mode, then release them. Regarding Remote Control Range This module features an onboard 2.4 GHz antenna that cannot be modified. The tested range is approximately 60 meters over open land and approximately 30 meters underwater. Ensure there are no objects emitting interfering signals near the antenna, such as batteries or various metals. Also, do not place the module inside a metal enclosure, as this will severely interfere with signal transmission. Package include 12-channel remote control *1 12-channel receiver board *1 XH2.54 terminal cable (10 cm) *1 PH2.0 terminal cable (10 cm) *8
