3-Phase Electric Wind Turbine Generator DIY Brushless Power Motor AC/DC9V-72V 120 Rpm 240 Rpm 480 Rpm Hydroelectric Generator

Features: *   and   * Made of - materials, sturdy and practical * Built and tested to strict quality control standards. * Stable performance and high reliability. . * Brushless generator DIY power generation experiment Brushless wind generator Hand-cranked hydroelectric generator

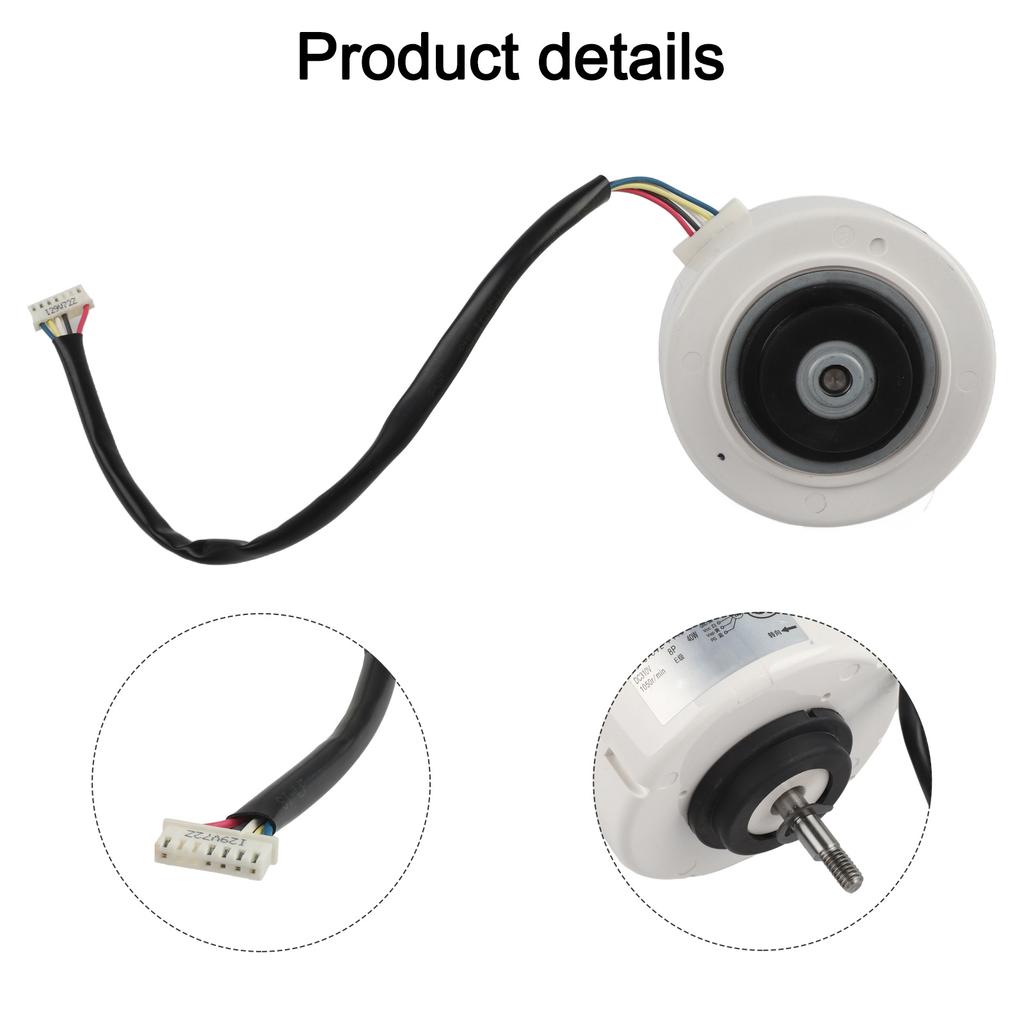

Specification: Part name: Brushless motor Material: ABS+metal Size: as shown in the picture Color: White [vS]

Red line, driving voltage, DC +310V (220V AC connected to the rectifier

bridge is 310V DC, it is  to add a 100uf/400V filter capacitor). At

this time, the wide voltage of the motor is DC176V-375V, that is, with an AC 110V-220V rectifier. [GND] Black wire, connected to the negative side of all power supplies. 【Vcc】White wire, working voltage, DC14-16V [ for Vsp] Yellow line, speed regulation, 0-6.5VPWM speed regulation, the lower the voltage, the slower the speed. The lower the voltage, the slower the speed, fully adjustable stop FG】Blue line, speed Note]: This motor is a 220V motor. No 220V electricity is provided. Easier to use: Connect the red and black wires. It can generate electricity in both forward and reverse directions. To generate electricity is to send direct current. Approximate parameters of power generation 120 rpm: 9v 240 rpm: 18V 480 rpm: 36V 960 rpm: 72V

Package Contents: 1 x brushless motor

Note: 1.The

real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2.Please allow slight manual measurement deviation for the data.

High-concerned chemical: none Choice: yes semi_Choice: yes Brand Name: NONE Origin: Mainland China
