ELECOM Mesh WiFi Router, Wireless LAN 867 + 400 Mbps Dual Band, Main Unit + Repeater Set, e-Mesh, Japanese Manufacturer [iPhone 11 / iPhone SE2 Manufa

【Specifications】 ■ Supported OS (Windows): Windows 10S / 10 / 8.1 / 7 (SP1 or later) ■ Supported OS (Mac): macOS Mojave 10.14 / macOS High Sierra 10.13 / macOS Sierra 10.12 / OS X El Capitan 10.11 / OS X Yosemite 10.10 / OS X Mavericks 10.9 / OS X Mountain Lion 10.8 ■ Supported OS (iOS): iOS 10.0 or later ■ Supported OS (Android): Android 4.4 or later ■ Setup Tool Supported Browsers: Edge, Chrome for Android, Safari for Mac OS, Safari for iOS, Safari for iPadOS *Only initial setup (internet connection settings) using the standard built-in web browser is supported. *Internet Explorer 11 is not supported.

■ Compatible Devices (Wireless LAN): iPhone series, iPad series, Android devices, various game consoles (3DS/DS series, PSP series, PS Vita series, PS3/4, Wii/Wii U, Nintendo Switch, Xbox 360), various wireless LAN-equipped devices ■ Wired Standard: IEEE802.3ab (1000BASE-T) / IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) compliant ■ Wired Connector: WAN: RJ-45 8-pin x 1 port (router only), LAN: RJ-45 8-pin x 4 ports *All ports support Auto MDI/MDI-X and Auto-Negotiation ■ Wired Transmission Speed ​​(WAN): 1000Mbps/100Mbps/10Mbps ■ Wired Transmission Speed ​​(LAN): 1000Mbps/100Mbps/10Mbps ■ Wired Settings (WAN): Router: Automatic detection / DHCP / Fixed IP Address / PPPoE (1 session) ■ Wired Settings (LAN): Router: DHCP Server / Fixed IP Address, Repeater: DHCP Client ■ Hardware NAT: Supported ■ Wireless Standards: IEEE 802.11ac / IEEE802.11n / IEEE 802.11a / IEEE 802.11b / IEEE 802.11g Compliant ■ Wireless Transmission Method: IEEE802.11ac: MIMO-OFDM / IEEE802.11n: MIMO-OFDM / IEEE802.11g: OFDM / IEEE802.11b: DS-SS / IEEE802.11a: OFDM ■ Wireless Transmission Speed ​​(Theoretical Value): IEEE802.11ac: Maximum 867Mbps / IEEE802.11n: Maximum 400Mbps / IEEE802.11g : Maximum 54Mbps / IEEE802.11b: Maximum 11Mbps / IEEE802.11a: Maximum 54Mbps ■ Frequency Band: 2.4GHz band: 2,400~2,484MHz, 5.2GHz band (W52): 5,150~5,250MHz, 5.3GHz band (W53): 5,250~5,350MHz, 5.6GHz band (W56): 5,470~5,725MHz ■ Channels: 2.4GHz band: 1~13ch, 5GHz band (W52/W53/W56): 36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/136/140ch ■ Wireless Security: WPA2-PSK(AES) / WPA-PSK(TKIP) / WEP(64bit/128bit) ■ MU-MIMO Function: Supported ■ Multi-SSID: Supported (2.4GHz: up to 3 / 5GHz: up to 2, total of 5) ■ Separator Function: Privacy Separator / SSID Separator Supported (Function only for "Friend's Wi-Fi") ■ Other Wireless Functions: Automatic Channel Setting ■ Setup Method: WPS 2.0 Supported ■ Access Method: Infrastructure ■ Number of Connected Devices: Recommended 30 ■ Built-in Modes: Router: Router Mode / Access Point Mode ■ Antennas (Number): Built-in Antennas 4 cables (2.4GHz band: 2 transmit/receive cables / 5GHz band: 2 transmit/receive cables)

[Description] ■ This e-Mesh starter kit (one e-Mesh router and one e-Mesh dedicated repeater) makes it easier and more stable for IoT devices such as smart speakers to connect to a mesh network.

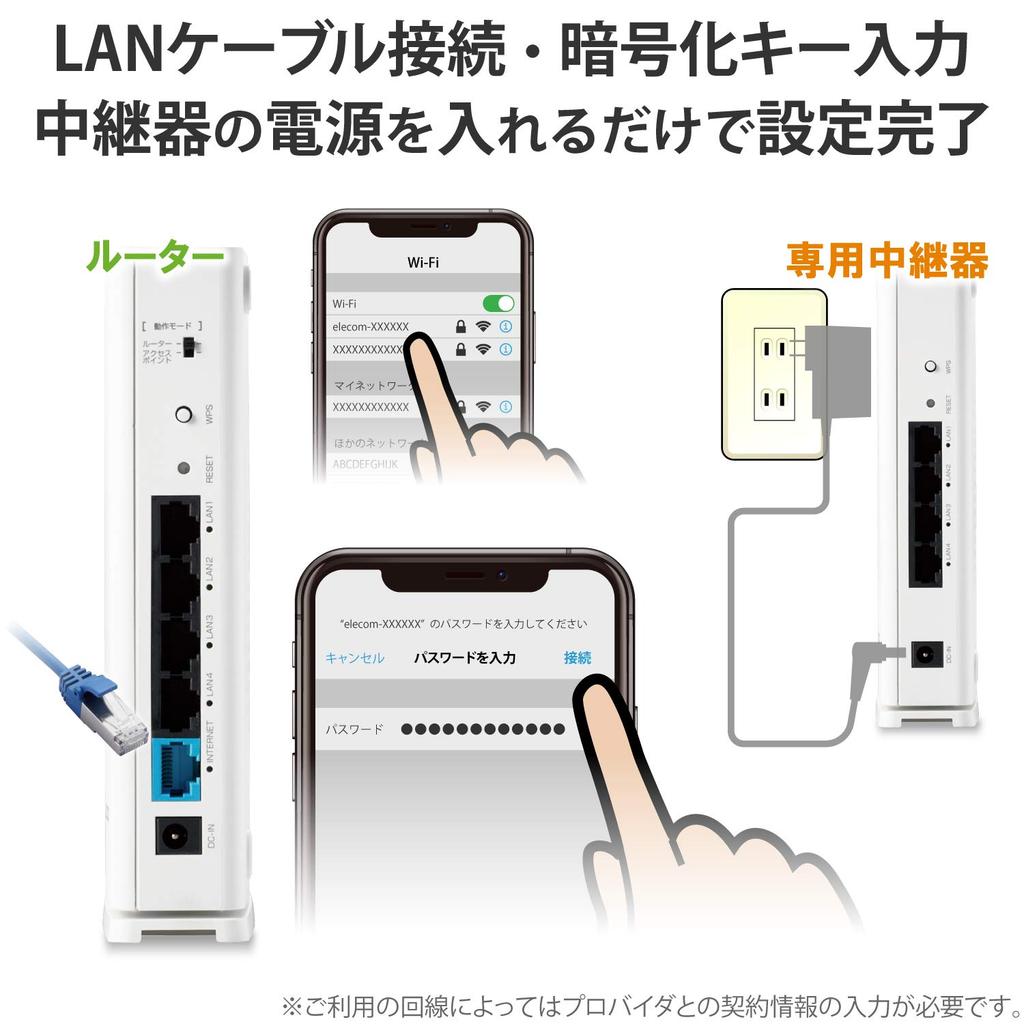

■ No app is required; simply power it on and the e-Mesh router and e-Mesh dedicated repeater will automatically connect and build a mesh network.

■ By adding separately sold e-Mesh dedicated repeater units, you can build a mesh network over a wider area.

■ Equipped with our proprietary mesh technology "e-Mesh," jointly developed with a chip manufacturer. "e-Mesh" requires no complicated settings. It automatically builds a comfortable and secure network.

■ Supports IPv6 IPoE internet connection, which is less prone to network congestion, enabling comfortable communication. Furthermore, with IPv6 IPoE internet connection, you can use the internet immediately by simply connecting a LAN cable to the internet port.

■ When replacing a device, the "Easy Migration Function" allows you to use your TV, smartphone, tablet, PC, etc. without complicated settings. Simply press the WPS button on your current router and this device to automatically copy your current router's information (SSID and encryption key).

■ To protect connected IoT devices, it features Trend Micro's industry-leading security "Smart Home Network™".

■ Protects network appliances such as TVs, air conditioners, and network cameras that cannot have security software installed from threats.

■ In addition to blocking malicious websites, it also blocks attacks targeting vulnerabilities and unauthorized external communications that could lead to information leaks. *Operates only in router mode. Enabled by default. However, absolute effectiveness against malicious attacks is not guaranteed. (Service is valid for a maximum of 5 years or until the date announced by our company. However, the service will not extend beyond December 31, 2026.)

■ In the unlikely event that a threat penetrates the device, or is already present upon connection, it will block communication to prevent personal and confidential information from being leaked.

■ Furthermore, for PCs and smartphones that already have security software installed, it provides double protection against threats to your internet environment.

■ Equipped with a high-power built-in antenna that leverages the know-how of our group company, DX Antenna, it achieves comfortable communication while maintaining a clean appearance.

■ It is highly resistant to noise and features independent, high-sensitivity built-in antennas (2x2) for the 5GHz and 2.4GHz bands.

■ It covers a 3-story detached house and a 4LDK apartment, allowing for comfortable communication even when a family of six is ​​using multiple devices such as TVs and smartphones simultaneously.

■ The 5GHz band, which is resistant to radio interference, enables high-speed communication up to 867Mbps (theoretical value), and the 2.4GHz band, a common communication band, enables high-speed communication up to 400Mbps (theoretical value). *400Mbps communication requires the client device to support 256QAM communication.

■ Equipped with a "dual-core CPU" that eliminates processing delays that occur when simultaneously communicating on the 5GHz and 2.4GHz bands.

■ Equipped with "Band Steering Function," it automatically selects and connects to the most comfortable frequency band (5GHz/2.4GHz band).

■ Equipped with "MU-MIMO Function," which allows sending different data to multiple devices, enabling simultaneous communication and processing for multiple devices. *Up to 2 simultaneous connections. Connected devices must also support MU-MIMO.

■ "Beamforming Z," which concentrates radio wave transmission, provides a more comfortable connection for compatible devices such as iPhone XS and XR.

■ All ports support gigabit fiber optic communication, allowing you to maximize your connection speed.

■ Equipped with "Friend Wi-Fi" (Guest SSID) function, you can provide Wi-Fi securely while protecting your own privacy. *Only usable on the 2.4GHz band.

■ Supports three types of placement: vertical placement for normal installation, horizontal placement suitable for empty spaces around TVs, and wall mounting to avoid obstructions.

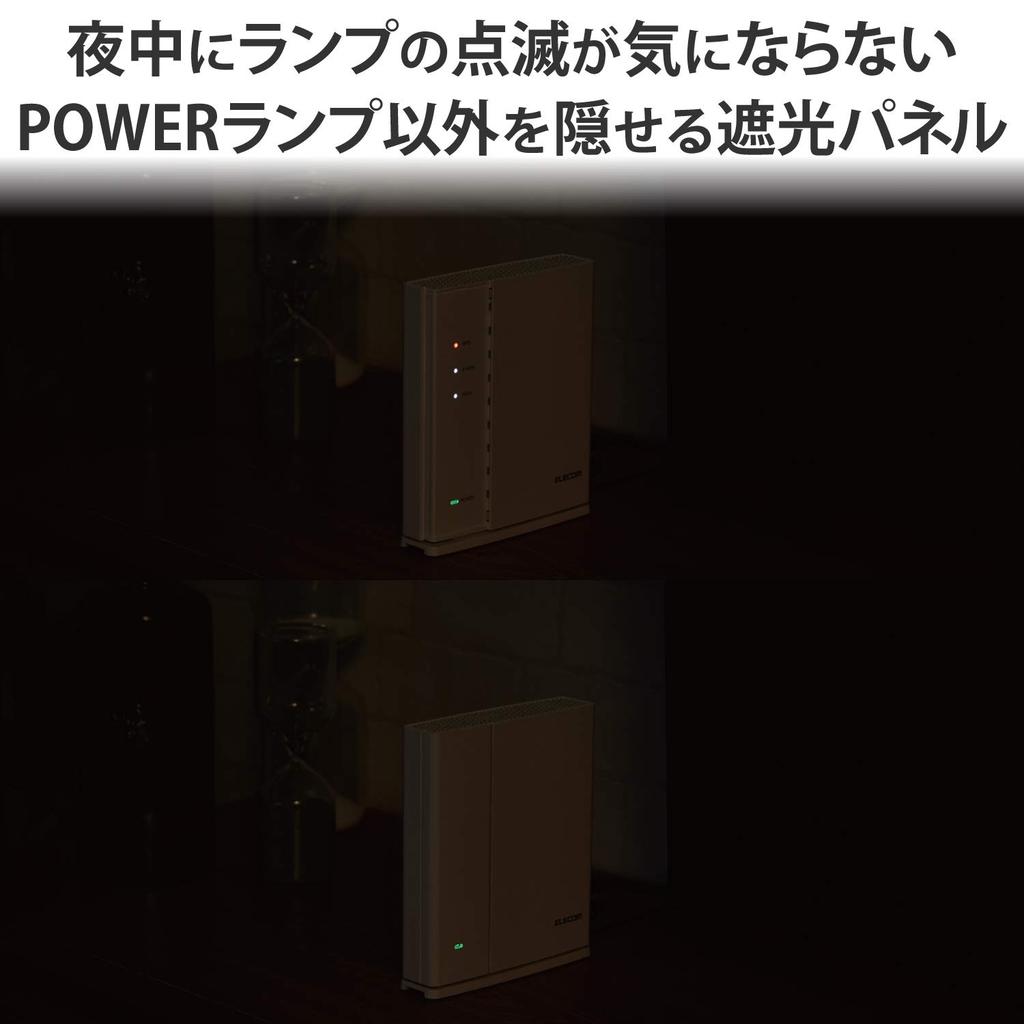

■ Includes a removable lamp cover for those who are bothered by the flashing light at night. ■ Its design blends seamlessly with living room TVs and other fixtures, making it suitable for any location.

■ Equipped with "Child Net Timer 3" to prevent excessive internet use and protect children.

■ This product meets at least one of our company's environmental certification standards and displays the "THINK ECOLOGY" mark.

■ Committed to environmental conservation, the product's packaging is made solely from paper, cardboard, and plastic bags.

[Product Inquiries] ELECOM General Information Center TEL. 0570-084-465 FAX. 0570-050-012 Operating Hours / 10:00~19:00 Open Year-Round [Features] This e-Mesh starter kit (e-Mesh router and e-Mesh dedicated repeater, 1 each) allows IoT devices such as smart speakers to connect more easily and with less disconnection by building a mesh network.

[Supported OS] Windows 7 or later, macOS 10.8 or later, iOS 10.0 or later, Android 4.4 or later [Recommended Usage Environment] 3-story detached house, 4LDK apartment, up to 30 connected devices [Security] Equipped with Trend Micro's industry-leading security "Smart Home Network™" to protect connected IoT devices. [Dimensions] (W) approx. 141.0 × (D) approx. 36.5 × (H) approx. 160 mm (main unit only)
