20KV High Voltage Module Arc Generator High-power Industrial Diesel High-voltage Ignition Module Transformer Drive Kit

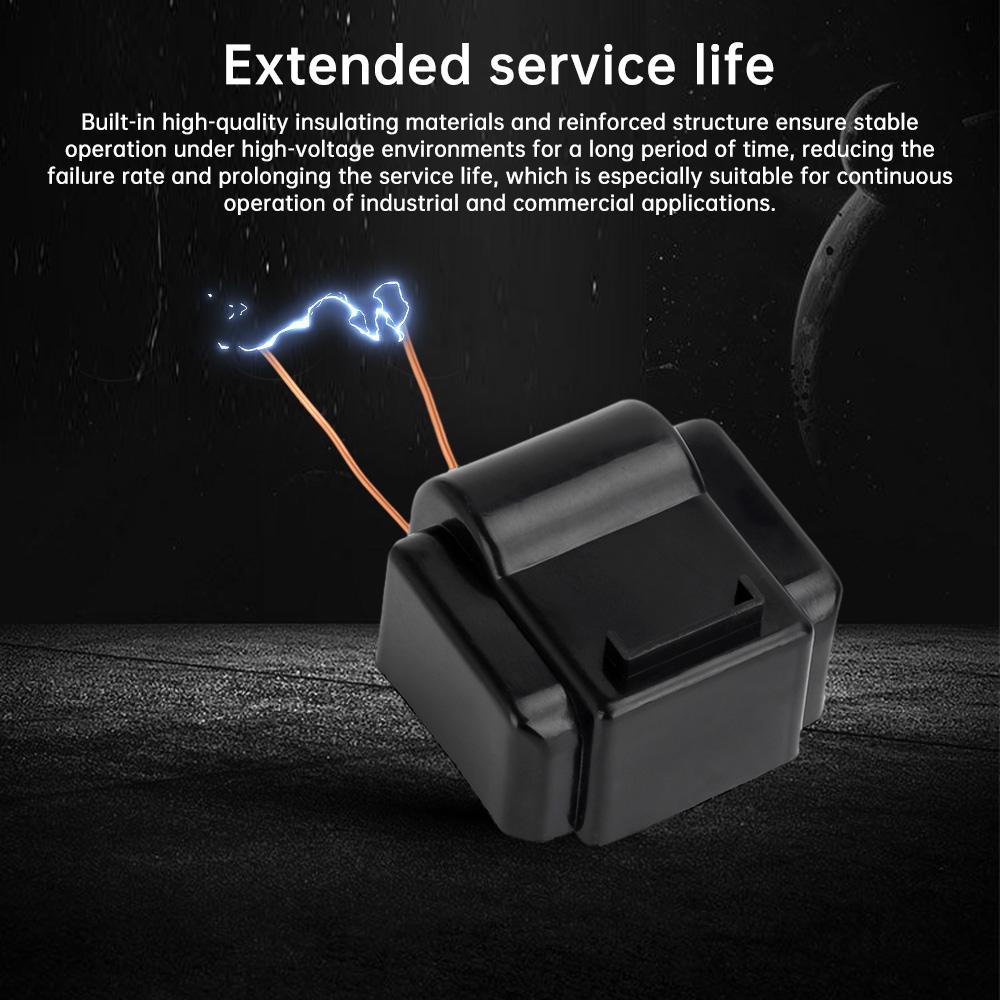

Product selling points: 1. With a stable high voltage output of up to 20KV, it is suitable for various applications that require high-intensity electric fields, such as ignition, ozone generation, and air purification, ensuring efficient ionization or ignition effects 2. Adopting advanced high-frequency transformer design, optimizing energy conversion efficiency, making equipment operation more efficient and energy-saving, while reducing size, improving portability and installation flexibility 3. Equipped with high-quality insulation materials and reinforced structures, it ensures stable operation in high voltage environments for a long time, reduces failure rates, and extends service life, making it particularly suitable for continuous operation in industrial and commercial applications 4. By efficiently generating ozone and negative ions, harmful substances in the air are effectively decomposed, purifying the air, removing odors, improving indoor environmental quality, and benefiting human health 5. Widely applicable to multiple fields such as ozone generators, oil fume purifiers, negative ion generators, and automotive ignition system upgrades, providing unified and efficient solutions for different application scenarios Product parameters: Product Function: High Voltage Boosting Ultimate withstand voltage: 30KV, recommended for use within 20KV Turn ratio: 5:900 Frequency range: 23KHz~130KHz Wire diameter: Primary 1mm; Secondary 0.16mm Resistance: 43 ohms Long term power: 100W Short term power: 200W Sealing type: epoxy resin hard adhesive Parameters used for demonstration: Long term work Voltage 24V Frequency 120KHz Current 5A Attention: This high-voltage package cannot be directly powered for use. Please pair it with a driver board!!! ZVS driver boards ranging from 12V to 24V can be used Packing list: High voltage pack * 1

Long term power: 100W Brand Name: Aideepen High-concerned chemical: none Choice: yes semi_Choice: yes Resistance: 43 ohms Short term power: 200W Model Number: igh Voltage Module Arc Generator Origin: Mainland China Certification: CE Product Function: High Voltage Boosting Frequency range: 23KHz~130KHz
