30KV High-power High-voltage Package High-frequency Transformer Boost Ozone Generation Arc Smoke Purification Negative Ion

Features: 1. Made of high quality material, durable and practical 2. The coil selected a new type of insulation material, so that the high voltage pack has a good short-circuit resistance 3. Small size, high efficiency, fierce discharge intensity 4. Efficient and stable performance 5. Wide range of applications, suitable for a variety of industrial DIY occasions

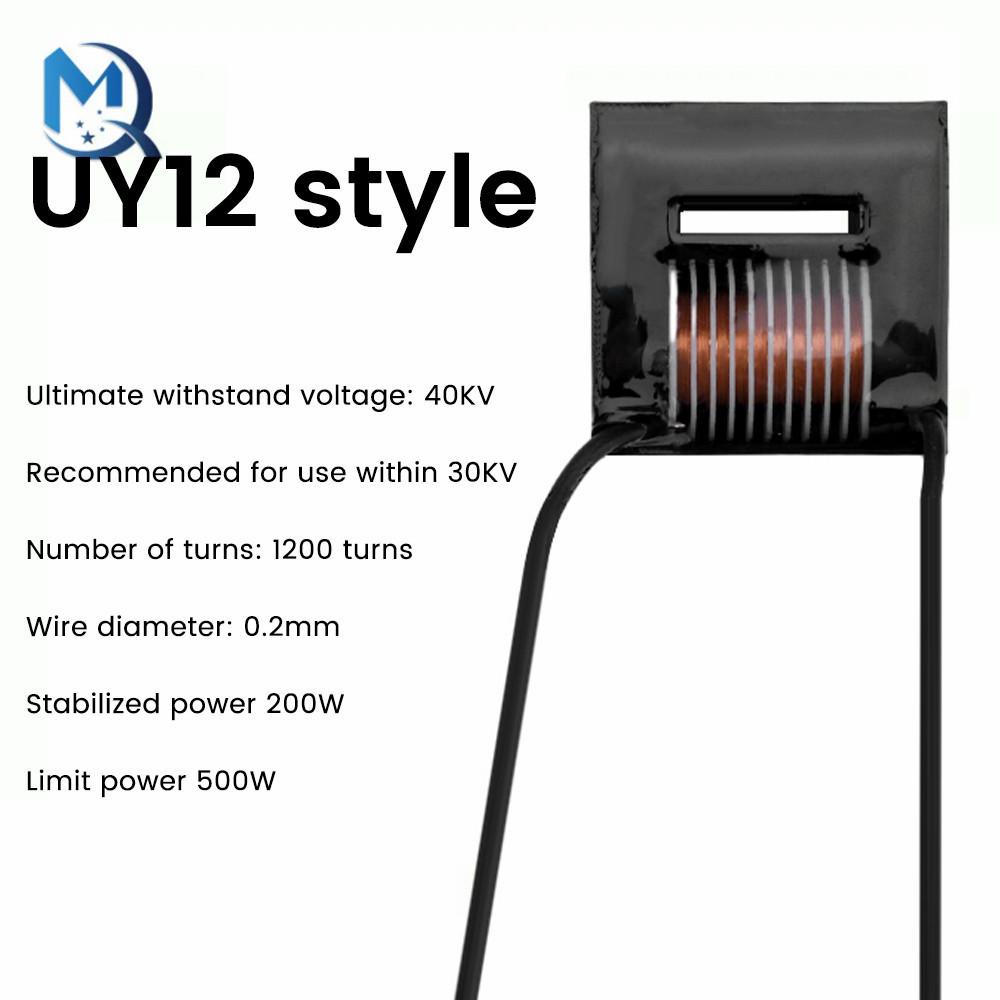

Parameter: UY12 Limit voltage: 40KV, recommended for use within 30KV Core: UY12 type ferrite Frequency range: 20KHz~100KHz Number of turns: 1200 Wire diameter: 0.2mm Output: High pressure silicone wire Stable power: 200W Limit power: 500W Primary recommended number of turns: 3~10 turns

UY16 Limit voltage: 40KV, recommended for use within 30KV Core: UY16 type ferrite Frequency range: 20KHz~100KHz Number of turns: 1000 turns Wire diameter: 0.2mm Output: High pressure silicone wire Stable power: 500W Limit power: 1000W Primary recommended number of turns: 3~10 turns

Note: This high voltage pack can not be used directly, please match the drive board!!! 12V ~ 24V ZVS driver board can be used

Package include: High pressure pack *1 (optional)
