Entry Alarm With Wireless Motion Sensor Or-Ma-717 Ip44 1 Pc

Wireless mini alarm Orno OR-MA-717 with built-in siren and motion sensor

• Orno OR-MA-717OD receiver - 1 pc;

• Orno OR-MA-717CR transmitter - 1 pc;

• user manual.

Wireless Motion Sensor – Control of Doors, Corridors and Other Areas

Orno OR-MA-717 is a great tool for monitoring various spaces such as entrance doors, corridors, storage rooms, basements, driveways and parking lots. This makes it an extremely universal solution.

Notifications on the receiver (sounder) - immediate reaction to detected events

• notifications aboutdetected motion -increases security in protected areas

• information aboutlow batteries ensuring continuous system operation

Sensor range and viewing angle

• rangeup to 120 m (in open areas) - effective monitoring of large spaces from a distance

• motion detection range: up to 8 m - efficient registration of movement by the sensor within its range

• sensor viewing angle: approx. 75°- allows for wide area coverage, increasing the effectiveness of the detection system

Protection and resistance to weather conditions

• IP44 protection class- allows for installation outdoors and in rooms with increased humidity

• The sensor is resistant to harsh weather conditions, which ensures its reliability in various environments

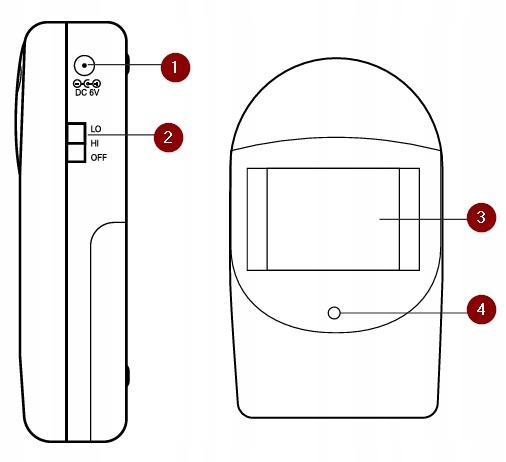

3. Login button

4. Mounting brackets

1. 3-position switch: silent ding dong (LOW), loud ding dong (HIGH), turn off the alarm (OFF)

2. PIR motion sensor

3. LED diode

✅ RECEIVER:

• Transmission: radio

• Frequency: 433 MHz

• Range: up to 120 m (in open space)

• Frequency: 433.92 MHz

• Volume level: 90 dB

• Number of ringtones: ding-dong, silent ding-dong or alarm

• Protection class: IP20

• Current consumption: 150 mA (during operation), 500 µA (during standby)

• Dimensions: 95 x 129 x 42 mm

• Net weight: 0.122 kg

✅TRANSMITTER:

• transmission: radio

• frequency: 433 MHz

• max. Power: <10mW

• Motion detection range: ≤8m

• Viewing angle: 75°

• Protection class: IP44

• Power consumption: <10 mA (operation), <20 µA (standby)

• Dimensions: 69 x 111 x 46 mm

• Net weight: 0.083 kg
