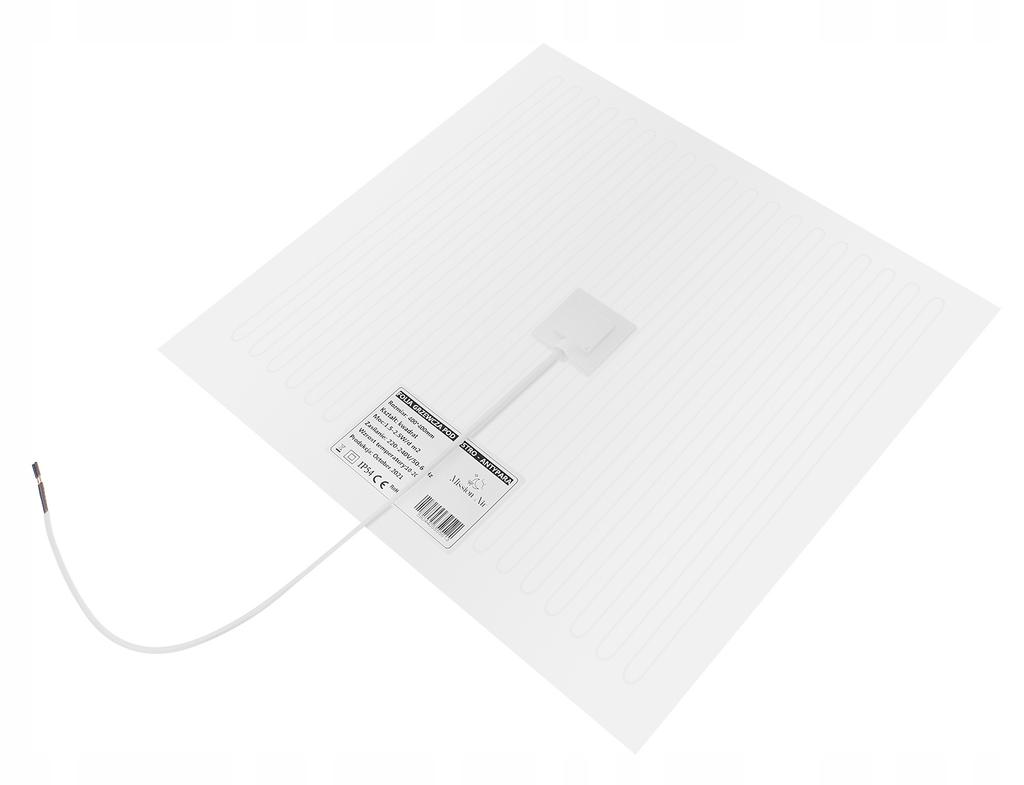

Mission Air Square Mirror Heating Mat 100 X 100 1 Pc

Self-adhesive heating foil for under the mirror

100cm x 100cm

The heating foil eliminates the effect of a "fogged-up mirror" in the bathroom.

In every bathroom, when using a bathtub or shower, we deal with the effect of a fogged-up mirror surface.

An effective solution is to use a specially designed heating foil. The heating element, glued directly to the back of the mirror, raises its temperature and allows water droplets to evaporate.

Mission Air heating foils guarantee a clean, vapor-free mirror surface.

PREPARATION FOR INSTALLATION

It is necessary to provide power (~230 V) to the mirror installation location. First, install a flush-mounted electrical box, which is supplied with power from the mains. The cable powering the heating foil is also connected to the power source (in the electrical terminal block) in the box.

The foil can be activated in two ways: with a separate switch

or a common switch, integrated with the room lighting.

• Peel off the protective foil from the surface of the heating foil,

• Stick the heating foil to the mirror surface,

ATTENTION! The edges of the mirror must be free from the heating foil, the foil does not can cover the entire mirror surface!

• Apply mounting glue to the edges of the mirror,

• Connect the foil to the power supply - to the light switch,

• Stick the mirror to the wall.

• unit power − 200W

• foil dimensions − 100 cm x 100 cm

• thickness − 0.2 mm

• Area − 1 m2

• Power cable length - 45 cm

• Heating element − Conductive paths

• Substrate − Reinforced polyester

Color: nan Size: 100 cm
