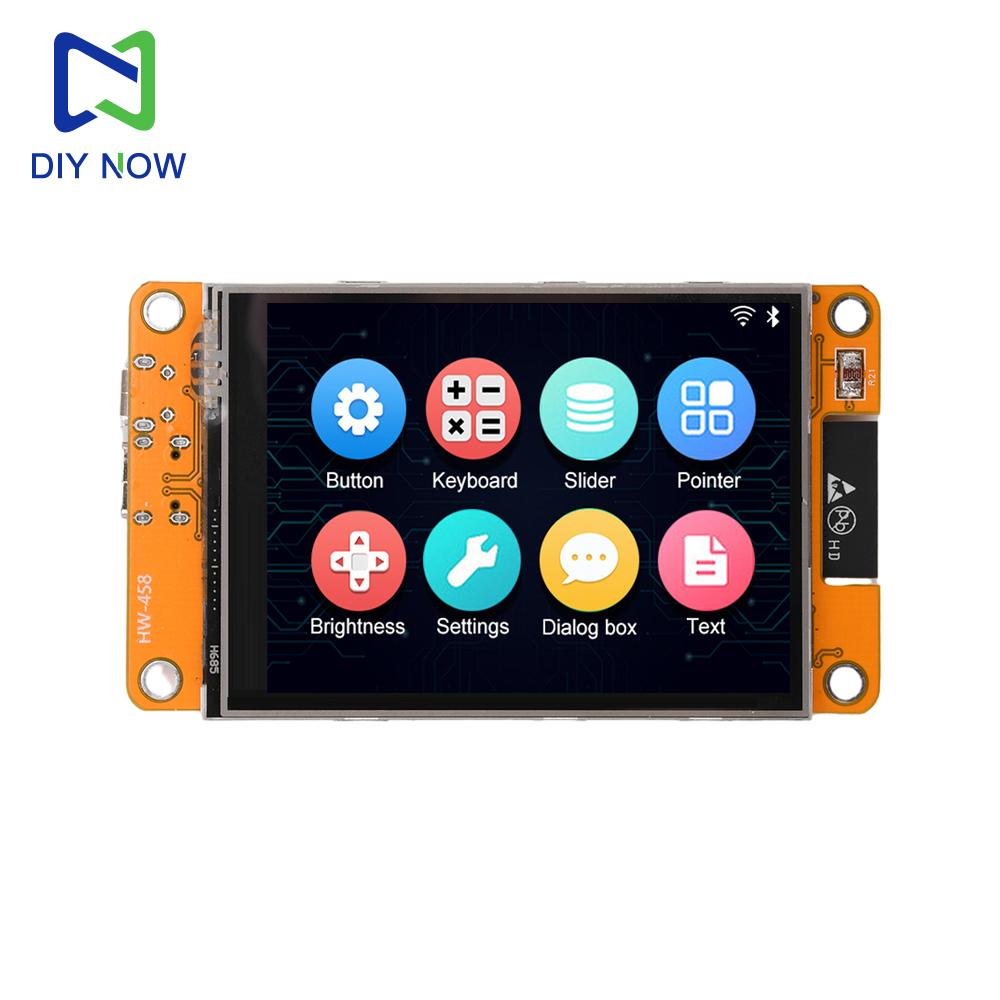

ESP32 2.8inch LCD TFT Module With Touch 240*320 Smart Display Screen WIFI&Bluetooth Development Board for Arduino LVGL

High-concerned chemical : none Display Mode : other is_d : Yes Model Number : ESP32 WIFI + BT Display Type : OLED Brand Name : DIY NOW Origin : Mainland China Resolution : 320*240 Product name : ESP32 WIFI + BT dual-mode development board displa Display colour : RGB 65K colour Size : 2.8 inch Driver chip : ILI9341 Resolution : 320x240 Viewing area : 43.2x57.6mm Bluetooth : Bluetooth 4.2BR/EDR and BLE standard

Product Features1.Low power consumption dual-core 32-bit CPU, can be used as application processor. 2. Main frequency up to 240MHz, computing power up to 600DMIPS 3. Built-in 520KB SRAM 4. Support UART/SPI/PWM/DAC/ADC interfaces. 5. With TF card slot, easy to expand storage 6.2.8-inch colour screen, support for 16-bit RGB 65K colour display 7.Support Smart Config/Airkiss one-key networking

Product Parameter Product name: ESP32 WIFI + BT dual-mode development board display Display colour: RGB 65K colour Size: 2.8 inch Type: TFT Driver chip：ILI9341 Resolution: 320*240 Viewing area: 43.2*57.6mm Viewing Angle：＞60° Operating Temperature: -20~70°C Operating voltage: 5V Power consumption: 115mA Bluetooth: Bluetooth 4.2BR/EDR and BLE standard WIFI: 802.11b/g/n/ Support interface: UART, SPI, SDIO, I2C, IR, ADC, DAC, PWM IO port: 22 Serial port rate: default 115200bps Spectrum range: 2412~2484MHZ Antenna Format: On-board PCB antenna with 2dBi gain Security: WPA/WPA2/WPA2-Enterprise/WPS Transmit Power: 802.11b:17±2dBm(@11Mbps) /802.11b:14±2dBm(@54Mbps) /802.11b:13±2dBm(@MC57)

Interface Sensitivity: CCK,1Mbps:-90dBm CCK,11Mbps:-85dBm 6Mbps(1/2BPSK):-88dBm 54Mbps(3/464-QAM):-70dBm MCS7(65Mbps,72.2Mbps)-67dBm

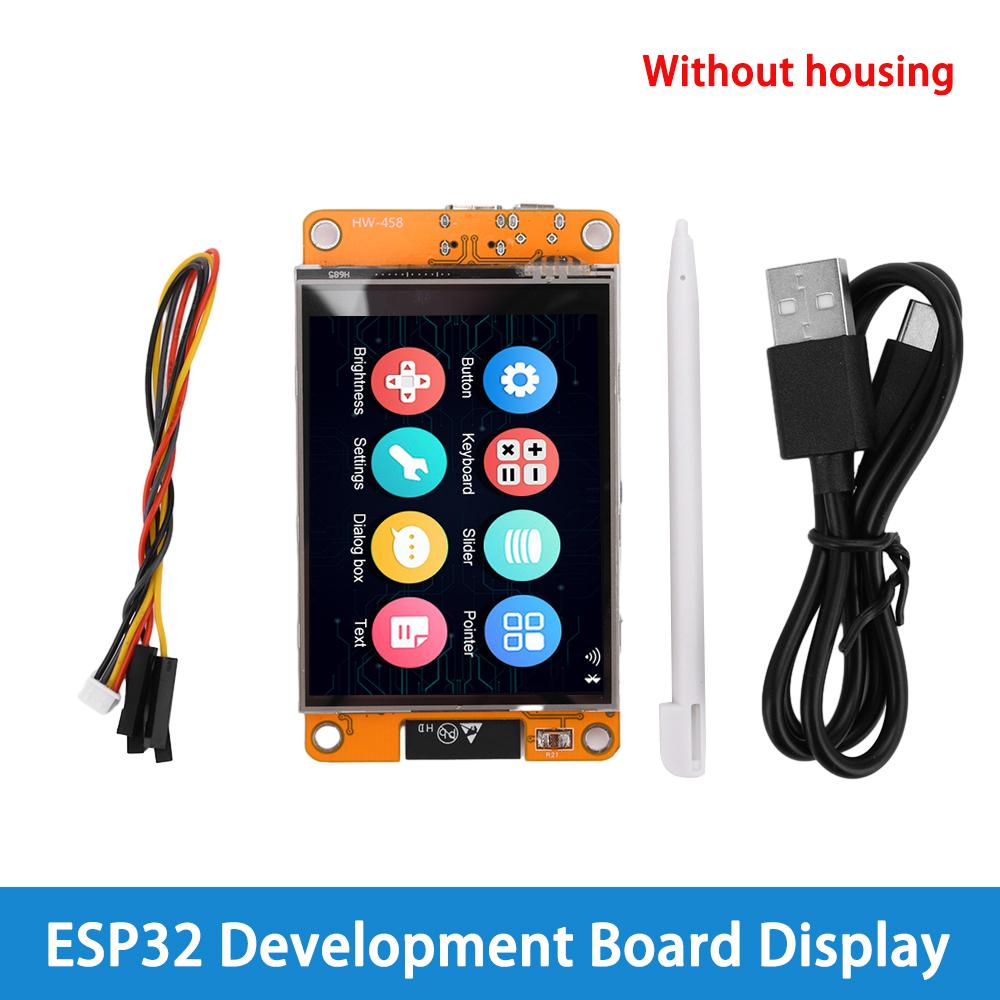

Shipping List Display*1 Touch pen*1 TYPE-C cable*1 4P terminal to Dupont cable*1 label:yes
