2-6S 6-28V Mini 4-Channel LED Light Control Module Supports WiFi RGB LED Strip Output Suitable for FPV Frone LED light Control

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : 6-28V Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New

Product Features 1. Ultra-small size, suitable for the limited space of FPV drones, lightweight design. 2. Supports 2–6S wide voltage input (6–25.2V), compatible with mainstream batteries. 3. Four independent control channels for precise control of RGB full-color LEDs. 4. Mobile phone connection via Wi-Fi for lighting effect settings, offering high degree of freedom for adjustment. 5. Made with high-quality materials, ensuring quality and stable performance.

Product Parameters Input: 2-6S battery (6-28V) Switch Control: Integrated controllable BEC, controlled via C pad. LED Control Channels: 4 independent control channels Linkage Channel: 1 signal input (servo PWM signal), controlled via L pad. Supported LED Models: WS2812B and other RGB full-color LEDs Supported LED Quantity: Up to 60 LEDs per channel; for total power exceeding 10W, please use a separate 5V BEC to power the LED strip. Power Calculation: Single LED power: R-17mA, G-17mA, B-17mA That is: the current when a single LED displays red, green, or blue at maximum brightness is 17mA, and the current at maximum white brightness is 17x3=51mA. When using a large number of LEDs (>40), avoid continuous white light to prevent overheating.

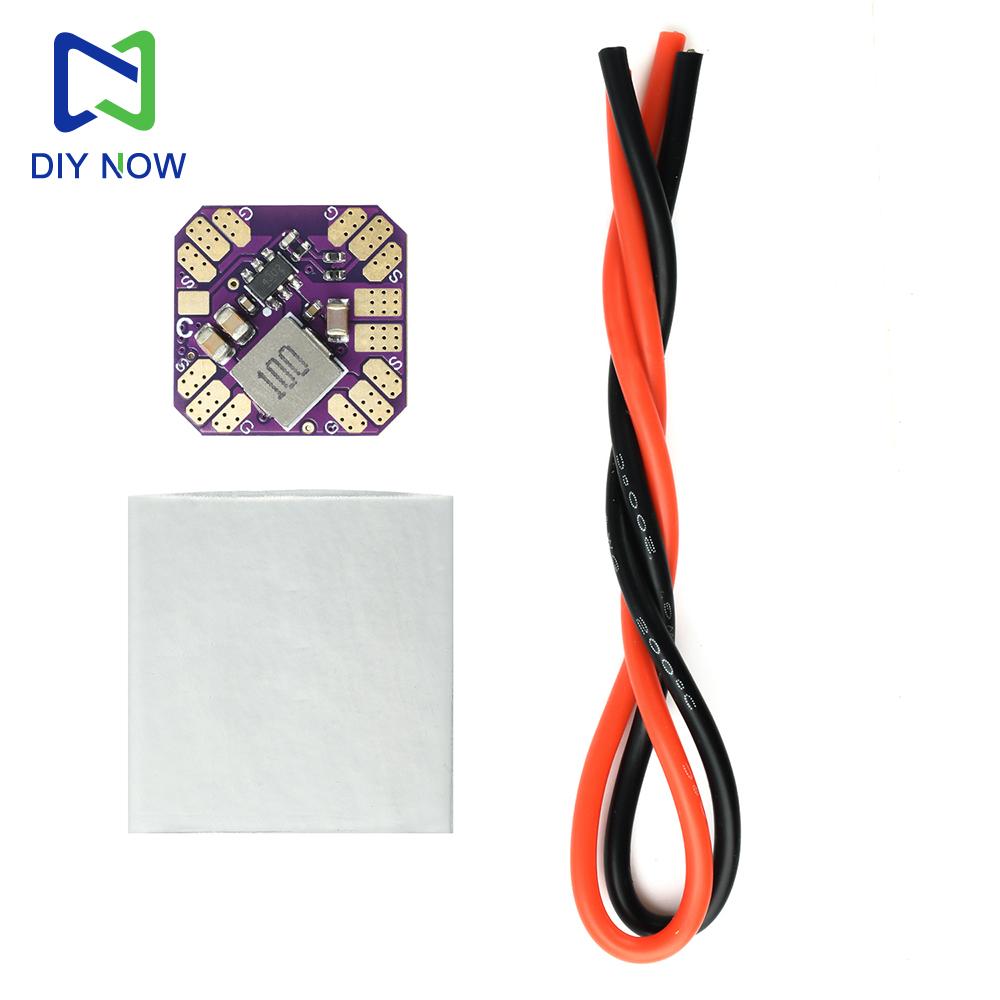

Package List Module *1 Power cable *2 Heat shrink tubing *1 label:yes
