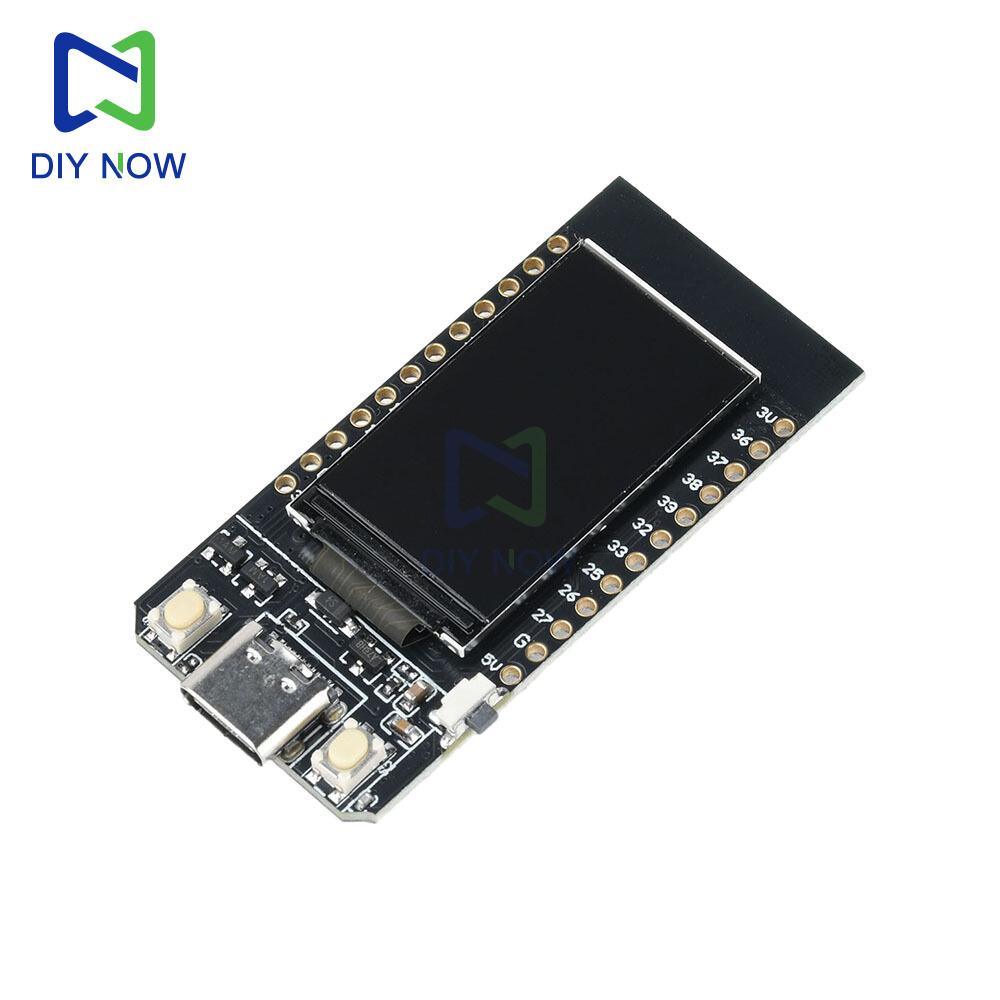

ESP T-Display ESP32 Development Board WiFi Bluetooth 1.14 Inch IPS LCD Wireless Controller Module CP2104 4MB For Arduino Type-C

Quantity : 1 High-concerned chemical : none Package : TQFP Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New

ESP T-Display ESP32 Development Board WiFi Bluetooth 1.14 Inch IPS LCD Wireless Controller Module CP2104 4MB For Arduino Type-C

Features: 1. Color screen display provides better visual effects and more intuitive information presentation. 2. Ultra low power consumption design, effectively extending device battery life, energy-saving and environmentally friendly. 3. Built in charging circuit, supports battery power supply, and is more convenient to use. 4. Customize button functions to meet users' personalized operational needs. 5. Adopting a 4-wire SPI serial bus, the full-color display effect is good. Parameter: USB interface: Type-C Power supply voltage: USB 5V/1A Charging current: 500mA Battery power supply: 3.7V lithium battery JST connector: 2Pin 1.25mm Working voltage: 2.7-4.2V Working current: 67mA Wireless standards: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC Protocol: 802.11b/g/n (802.11n, up to 150Mbps) A-MPDU and A MSDU aggregation, supporting 0.4us protection interval Frequency range: 2.4GHz~2.5GHz (2400M~2483.5M) Transmission power: 22dBm Supports dual mode power supply of USB/lithium battery (choose one to use) Working temperature: -40~85 ℃ Size: 51.5 * 25 * 8.54mm 1.14 inch LCD screen: Resolution: 135X240 Size: 1.14 inches Driver IC: ST789V Adopting a 4-wire SPI serial bus, full-color, full view IPS LCD Package Include: Module * 1 Pin arrangement * 2 Wiring * 1 label:yes
