RF7500 6-7.5G Wireless Video Receiving Module RF Receiver Module FPV Analog Wireless Video Receivor Board SPI Mode For Drone

High-concerned chemical : none is_d : Yes Type : Module Brand Name : Gaqqee Origin : Mainland China Condition : New

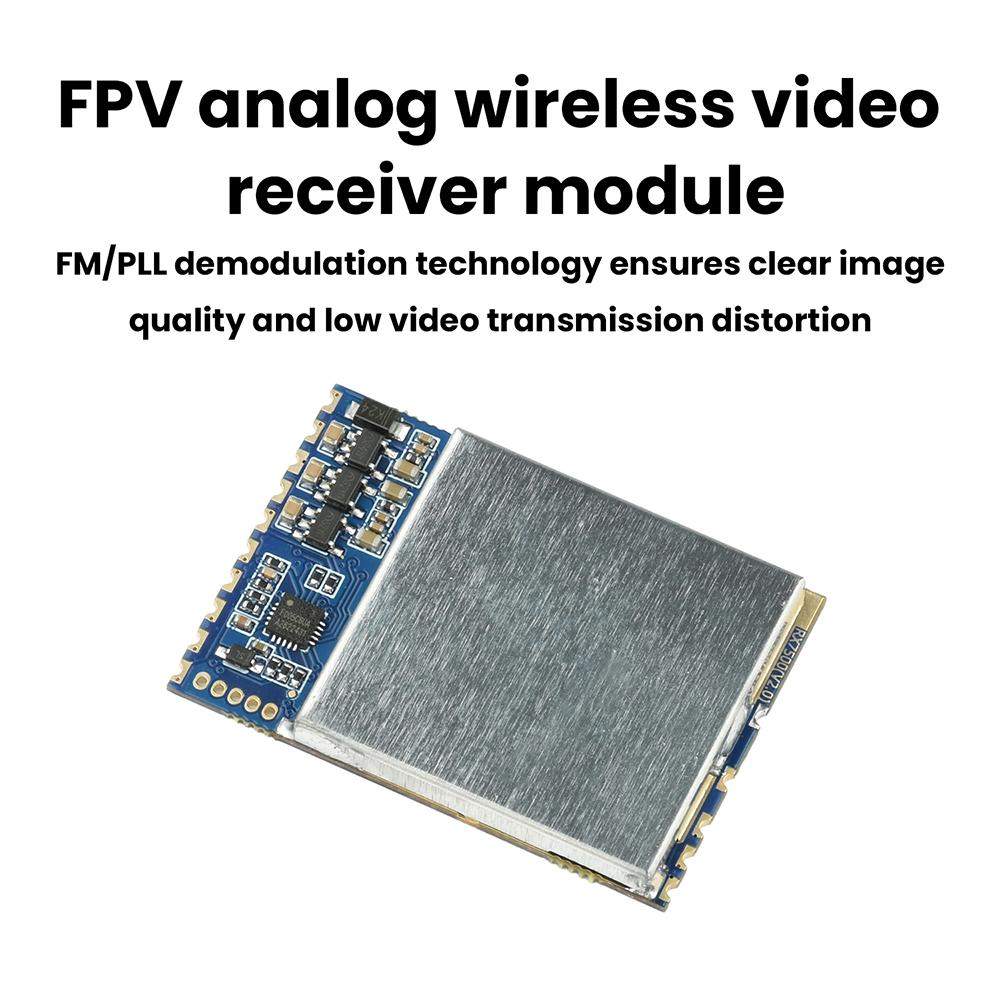

Product Features: 1. Support 6-7.5GHz broadband reception, suitable for wireless image transmission needs in multiple scenarios 2. Unlimited channel customization, supporting free editing of an unlimited number of channels 3. High sensitivity -95dBm, maintaining clear image quality even in weak signals 4. FM/PLL demodulation technology, clear image quality, low distortion video transmission 5. Widely applicable to industrial fields such as drones, robots, emergency communication, etc

Product Parameters: Product Name: Image Transmission Receiving Module Channel: Users can freely edit channels without any quantity limit Supply voltage: DC 5V Current consumption: 390mA Max Working environment: -10~+65 º C, 85% RH Storage temperature: -30~+85 º C Application scenarios: Real time image transmission system for unmanned aerial vehicle FPV, industrial wireless monitoring equipment, intelligent robot vision transmission system, mobile emergency communication vehicle or field operation equipment, etc

Radio frequency (RF): Receiving frequency range: 6000~7500MHz Input standing wave ratio: 2:1 Demodulation method: FM/PLL Intermediate frequency IF: 5400MHz Receiver sensitivity: -95dBm

Video Characteristics: Video output impedance: 75 ohms, Typ Video output level: 1Vp-p, Typ 3dB intermediate frequency bandwidth: 16.5MHz Signal to noise ratio S/N: 30dB, Min RSSI Output Voltage(-30dBm~-90dBm)：1.2~0.6V

Instructions: When SPI/EN is high, the module receives SPI signal to control the frequency. If no frequency setting or invalid setting is received, it defaults to working at 6150MHz, with a frequency range of 6G-7.5G and 1MHz step. SPI signal level 3.3V, maximum 100K rate

Attention: The SPI mode of RF7500 is controlled by a peripheral microcontroller, and channels can be freely edited without any quantity limit

Shipping List: Module x1
